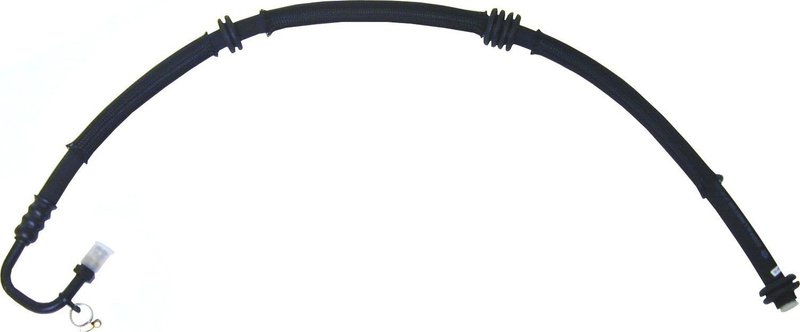

URO 1634605224 Power Steering Pressure Hose
Reliable Power Steering Pressure Hose for Mercedes-Benz ML320 and ML430
The URO Power Steering Pressure Hose (Part Number 1634605224) is designed specifically for Mercedes-Benz ML320 and ML430 models. Engineered to meet SAE J188 specifications, this 35-inch hose ensures consistent hydraulic pressure for smooth steering performance.
Key Features of URO Power Steering Pressure Hose 1634605224
- Length: 35 inches (889 mm) for precise fitment
- End 1: Threaded fitting with 0.52-inch diameter and 0.625-inch fitting size
- End 2: No fitting, ID hose with 0.62-inch diameter and 0.4-inch fitting size
- Includes O-rings for secure sealing
- Steel crimped sleeve material for durability
- Meets or exceeds SAE J188 rubber hose standards
- Designed for gearbox/rack to cooler hose positioning
- Weight: 0.75 lbs for easy handling
Detailed Description of the URO Power Steering Pressure Hose
This power steering pressure hose from URO is engineered to provide reliable fluid transfer between the gearbox or rack and the cooler in Mercedes-Benz ML320 and ML430 vehicles. The hose features a threaded end fitting and a no-fitting ID hose end, allowing for a secure and leak-resistant connection. Constructed with a steel crimped sleeve, it offers enhanced strength and resistance to pressure fluctuations. The rubber hose material surpasses SAE J188 standards, ensuring durability under high temperature and pressure conditions commonly found in power steering systems.
Common Applications and Issues Addressed
- Replacement of worn or cracked power steering pressure hoses
- Elimination of fluid leaks causing steering performance issues
- Restoration of proper hydraulic pressure for smooth steering response
- Prevention of hose failure due to heat and pressure exposure
- Maintenance of power steering system integrity in Mercedes-Benz ML320 and ML430
Installation Notes and Tips
When installing the URO power steering pressure hose 1634605224, ensure all O-rings are properly seated to prevent leaks. Verify the hose routing matches the original path from the gearbox or rack to the cooler. Use appropriate tools to tighten the threaded fitting without over-torquing. Inspect the hose for any signs of damage before installation and replace if necessary.
Quality Assurance and Warranty Information
URO power steering hoses are manufactured to meet strict quality standards, including SAE J188 specifications for rubber hoses. While specific warranty details are not provided, URO products are known for consistent quality and reliability in automotive applications. Always verify compatibility with your Mercedes-Benz ML320 or ML430 before purchase.
| Brand | URO |
| Part Number | 1634605224 |
| Length | 35 |
| End 1 Type | Threaded |
| End 2 Type | No fitting, id hose |
| O-Rings Included | Yes |
| Bracket Bushings Included | No |
| Copper Washers Included | No |
| Crimped Sleeve Material | Steel |
| End 1 Diameter (In) | .52 |
| End 1 Fitting Size (In) | ..625 |
| End 2 Diameter (In) | .62 |
| End 2 Fitting Size (In) | .4 |
| Fully Assembled Pressure & Return Set | No |
| Heat Sleeves Included | No |
| Hose Position | Gearbox/rack to cooler |
| Hose Positioning Clips Included | No |
| Length (In) | 35 |
| Length (mm) | 889 |
| Mounting Bracket Included | No |
| Rubber Hose Standard | Exceeds sae j188 specifications |
| Rubber Mounts Included | No |
| Switch Port Included | No |
| Weight | .75 |
This part fits 9 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2003 | Mercedes-Benz | ML320 | N/A | Chassis Range: Thru A 289559; Chassis Range: Thru X 754619; Except cars with (Code 802); Chassis Range: From A 289560, with (Code 801); Chassis Range: From X 754620, with (Code 801) |
| 2002 | Mercedes-Benz | ML320 | N/A | Chassis Range: Thru A 289559; Chassis Range: Thru X 754619; Except cars with (Code 802); Chassis Range: From A 289560, with (Code 801); Chassis Range: From X 754620, with (Code 801) |
| 2001 | Mercedes-Benz | ML320 | N/A | From rack to cooling line; Low pressure; Up to A289559; Up to X754619 |
| 2001 | Mercedes-Benz | ML430 | N/A | From rack to cooling line; Low pressure; Up to A289559; Up to X754619 |
| 2000 | Mercedes-Benz | ML320 | N/A | From rack to cooling line; Low pressure; Up to A289559; Up to X754619 |
| 2000 | Mercedes-Benz | ML430 | N/A | From rack to cooling line; Low pressure; Up to A289559; Up to X754619 |
| 1999 | Mercedes-Benz | ML320 | N/A | From rack to cooling line; Low pressure; Up to A289559; Up to X754619 |
| 1999 | Mercedes-Benz | ML430 | N/A | From rack to cooling line; Low pressure; Up to A289559; Up to X754619 |
| 1998 | Mercedes-Benz | ML320 | N/A | From rack to cooling line; Low pressure; Up to A289559; Up to X754619 |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
