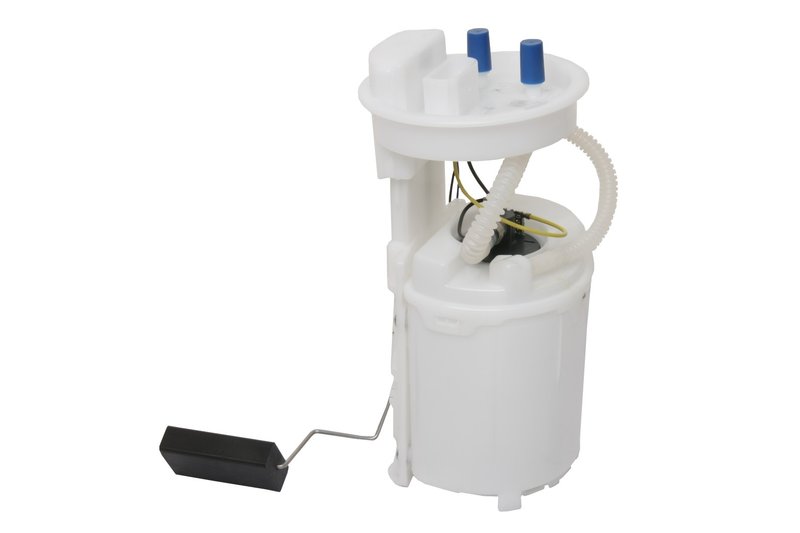

URO 1J0919087J Fuel Pump Module Assembly

Fuel Pump Module Assembly for Volkswagen and Audi

The URO 1J0919087J fuel pump module assembly is a direct-fit replacement for select Volkswagen Beetle, Golf, Jetta, and Audi TT applications. It combines the pump and fuel sending unit in one in-tank assembly for accurate fuel delivery and level reporting.

• Fuel sending unit included for integrated fuel level signal output
• Electric in-tank pump design
• Quick disconnect inlet and outlet connections
• Maximum pressure rating of 45 psi
• Maximum flow rating of 40
• Gasket or seal included
• Male connector
• Factory tested for proper operation

Application Details

Compatible With 1998-2003 Volkswagen Beetle, 1999-2005 Volkswagen Golf, 1999-2005 Volkswagen Jetta, 2000-2001 Audi TT, and additional listed Volkswagen and Audi applications. For several Volkswagen Beetle, Golf, and Jetta models, installation requires the correct tank seal; some vehicles with a plastic fuel tank and 123 mm O.D. top flange require the specified seal noted in the fitment data. The URO 1J0919087J is built for vehicles using the listed quick-disconnect fuel line setup and in-tank electric pump configuration.

This part cross-references Beck/Arnley 152-0966 and Spectra Premium SP8424M for the same application.

What This Part Helps Address

• Hard starting caused by weak or inconsistent fuel delivery
• Fuel starvation under load from a failing in-tank pump
• Inaccurate fuel gauge readings from a worn sending unit
• Low fuel pressure that can affect drivability
• Noise or vibration from a deteriorated pump module

Installation Notes

Verify the tank style and top flange diameter before installation, especially on Volkswagen Beetle, Golf, and Jetta models with plastic fuel tanks. Confirm the seal requirement listed for your exact vehicle application and inspect the quick-disconnect fittings, connector, and fuel line routing before assembly. Always compare the original module and part number 1J0919087J to the vehicle’s existing configuration before service.

Quality Assurance

URO builds this fuel pump module assembly with an efficient impeller design to support fuel flow while reducing current draw, precision armature bearings for quieter operation, low-resistance motor brushes for durability, and high-quality housing materials. Each unit is factory tested for proper operation and backed by a 24 Month Unlimited Mileage Warranty.
