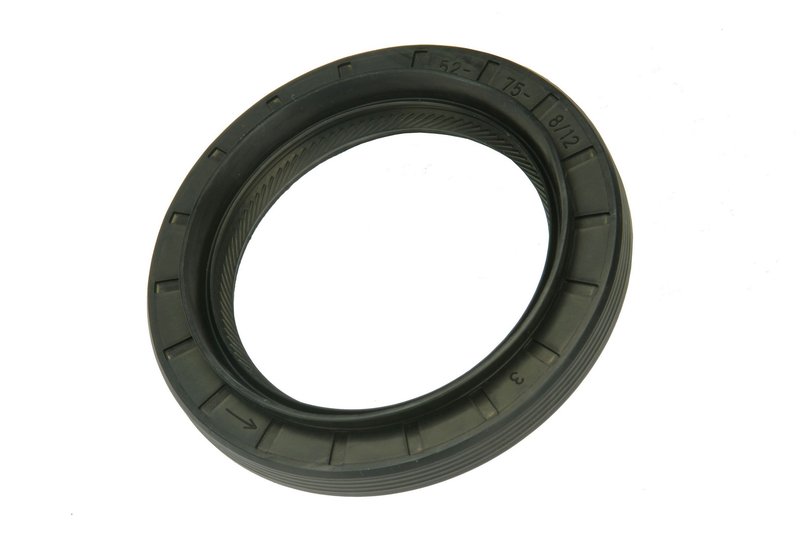

URO 27107546667 Transfer Case Output Shaft Seal - Rear

BMW Transfer Case Output Shaft Seal

This URO transfer case output shaft seal is a direct-fit sealing component for BMW xDrive applications. It is built with ACM sealing material and a steel seal housing to help maintain a tight seal at the transfer case output shaft on rear-position drivetrains.

Part number 27107546667 is used on a wide range of BMW models, including BMW X5, BMW X3, and 3 Series xDrive applications. If you are replacing a leaking or damaged transfer case seal, this seal provides the correct dimensions and fitment for the listed vehicles.

Key Features

• Transfer case output shaft seal for rear-position applications
• ACM sealing material for heat resistance and leak control
• Steel seal housing for stable fitment
• Black round seal profile
• Direct replacement for BMW part number 27107546667
• Cross-references URO-014205 and 452 06020 260 for the same application

Fitment and Application

Compatible with BMW xDrive models across 2006-2021, including long-tail searches such as BMW X5 rear transfer case output shaft seal, BMW X3 rear transfer case seal, and BMW 328i xDrive transfer case output shaft seal. Fits 2017-2021 BMW M240i xDrive, rear; 2017-2020 BMW 230i xDrive, rear; 2017-2020 BMW 430i xDrive, rear; 2017-2020 BMW 430i xDrive Gran Coupe, rear; 2017-2020 BMW 440i xDrive, rear; 2017-2020 BMW 440i xDrive Gran Coupe, rear; 2017-2019 BMW 330i GT xDrive, rear; 2017-2019 BMW 330i xDrive, rear; 2017-2019 BMW 340i GT xDrive, rear; 2014-2019 BMW 640i xDrive Gran Coupe, rear; 2013-2019 BMW 650i xDrive Gran Coupe, rear; 2011-2019 BMW X6, rear; 2013-2018 BMW 320i xDrive, rear; 2014-2018 BMW 328d xDrive, rear; 2016-2018 BMW 340i xDrive, rear; 2014-2018 BMW 640i xDrive, rear; 2012-2018 BMW 650i xDrive, rear; 2015-2018 BMW X4, rear; 2011-2018 BMW X5, rear; 2011-2017 BMW 535i GT xDrive, rear; 2010-2017 BMW 550i GT xDrive, rear; 2011-2017 BMW X3, rear; 2015-2016 BMW 228i xDrive, rear; 2014-2016 BMW 328i GT xDrive, rear; 2009-2016 BMW 328i xDrive, rear; 2014-2016 BMW 335i GT xDrive, rear; 2014-2016 BMW 428i xDrive, rear; 2015-2016 BMW 428i xDrive Gran Coupe, rear; 2014-2016 BMW 435i xDrive, rear; 2015-2016 BMW 435i xDrive Gran Coupe, rear; 2012-2016 BMW 528i xDrive, rear; 2009-2016 BMW 528i xDrive, rear; 2014-2016 BMW 535d xDrive, rear; 2009-2016 BMW 535i xDrive, rear; 2011-2016 BMW 550i xDrive, rear; 2015-2016 BMW M235i xDrive, rear; 2009-2015 BMW 335i xDrive, rear; 2015 BMW 740Ld xDrive, rear; 2013-2015 BMW 740Li xDrive, rear; 2010-2015 BMW 750i xDrive, rear; 2010-2015 BMW 750Li xDrive, rear; 2012-2015 BMW X1, rear; 2010 BMW X6, rear; 2007-2008 BMW 328xi, rear; 2007-2008 BMW 335xi, rear; 2008 BMW 528xi, rear; 2008 BMW 535xi, rear; 2006-2007 BMW 525xi, rear; 2006-2007 BMW 530xi, rear; 2006 BMW 325xi, rear; 2006 BMW 330xi, rear.

What This Seal Helps Address

• Transfer case fluid seepage at the output shaft
• Torn, hardened, or damaged rubber sealing surfaces
• Leak-related fluid loss around the rear transfer case area
• Seal wear from heat and age in BMW xDrive drivetrains
• Service replacement during transfer case maintenance

Installation Notes

Confirm the seal dimensions before installation: 50.58 mm inside diameter, 75.28 mm outside diameter, and 7.69 mm thickness. Clean the sealing bore and shaft surface thoroughly before installing the new seal, and inspect the output shaft for wear or scoring that could affect sealing performance. Verify the vehicle uses the rear transfer case output shaft seal location listed in the fitment data.

Quality Assurance

URO backs this transfer case output shaft seal with a 24-month unlimited mileage warranty. The ACM sealing material is selected for heat resistance, and the steel housing supports consistent sealing performance in BMW transfer case applications. Part number 27107546667 is an OE-style replacement for the listed BMW xDrive models.
