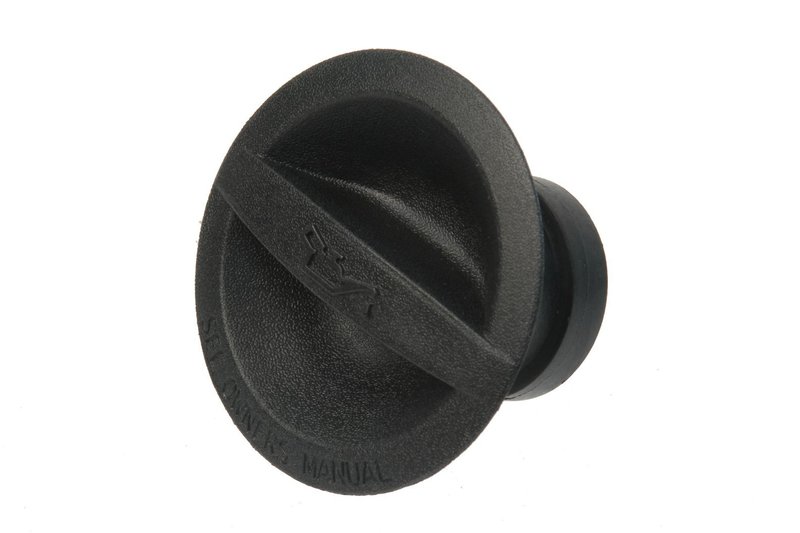

URO 30677494 Engine Oil Filler Cap
| Brand | URO 30677494 |
|---|---|
| Material | Pa66-gf30 |
| Attachment Method | Screw on |
| Color/Finish | Black |
| Dipstick Included | No |
| Height (In) | 1.72 |
| Height (mm) | 43.80 |
| Neck Depth (In) | 0.95 |
| Neck Diameter (In) | 1.32 |
| Neck Diameter (mm) | 33.62 |
| Outside Diameter (In) | 2.52 |
| Outside Diameter (mm) | 63.95 |
| Fits | Volvo · 47 vehicles |
OE dimensions. Easy installation and an original engine compartment appearance.
Heat-resistant material. Resists intense engine heat and oil vapor.
Screw-on design. Replaces cracked or broken factory oil filler caps.
Cross-references Genu 30677494, 107 53008 001 and URO-013120 for the same application. See all 3.
Engine Oil Filler Cap for Volvo Applications
This URO engine oil filler cap is a direct replacement for cracked, broken, or missing factory caps on select Volvo models. Built to OE dimensions and finished in black, it restores a secure seal and helps maintain a clean engine compartment appearance.
- Direct-fit engine oil filler cap for select Volvo S60, V60, XC60, XC70, C30, C70, S40, V50, and S80 applications
- Replaces damaged factory oil filler caps that can allow oil vapor escape or leakage
- Manufactured from PA66-GF30 for heat and oil-vapor resistance
- Screw-on attachment for straightforward installation
- Black finish matches the original engine bay look
- OE-dimensioned design for proper fit and sealing
- Part number 30677494 for easy cross-reference
Fitment Details
Compatible With 2012-2016 Volvo S60, 2016 Volvo S60 Cross Country, 2015-2016 Volvo V60, 2015-2016 Volvo V60 Cross Country, 2015-2016 Volvo XC60, 2016 Volvo XC70, 2008-2013 Volvo C30, 2006-2013 Volvo C70, 2004-2011 Volvo S40, 2005-2011 Volvo V50, and 2007-2010 Volvo S80. This part number 30677494 also cross-references URO-013120 for the same application.
What This Part Helps Fix
- Oil leakage caused by a missing or damaged filler cap
- Cracked cap bodies from heat cycling and age
- Loose or poor sealing at the oil fill opening
- Unwanted oil vapor escape from a worn cap
- Loss of original under-hood appearance on Volvo S60, V60, and XC60 models
Installation Notes
This cap uses a screw-on attachment method and is sized to OE dimensions for direct replacement. Verify the neck diameter and sealing surface before installation, then tighten the cap securely by hand. No dipstick is included.
Quality Assurance
URO manufactures this oil filler cap to OE dimensions using PA66-GF30 material to withstand engine heat and oil vapor exposure. Part number 30677494 is backed by a 24-month unlimited mileage warranty.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2016 | Volvo | S60 | — | 2.5L | L5 | N/A | — |
| 2016 | Volvo | S60 Cross Country | — | — | — | N/A | — |
| 2016 | Volvo | V60 | — | 2.5L | L5 | N/A | — |
| 2016 | Volvo | V60 Cross Country | — | — | — | N/A | — |
| 2016 | Volvo | XC60 | — | 2.5L | L5 | N/A | — |
| 2016 | Volvo | XC70 | — | 2.5L | L5 | N/A | — |
| 2015 | Volvo | S60 | — | 2.5L | L5 | N/A | — |
| 2015 | Volvo | V60 | — | 2.5L | L5 | N/A | — |
| 2015 | Volvo | V60 Cross Country | — | — | — | N/A | — |
| 2015 | Volvo | XC60 | — | 2.5L | L5 | N/A | — |
| 2014 | Volvo | S60 | T5 | — | — | N/A | — |
| 2013 | Volvo | C30 | — | — | — | N/A | — |
| 2013 | Volvo | C70 | — | — | — | N/A | — |
| 2013 | Volvo | S60 | T5 | — | — | N/A | — |
| 2012 | Volvo | C30 | — | — | — | N/A | — |
| 2012 | Volvo | C70 | — | — | — | N/A | — |
| 2012 | Volvo | S60 | T5 | — | — | N/A | — |
| 2011 | Volvo | C30 | — | — | — | N/A | — |
| 2011 | Volvo | C70 | — | — | — | N/A | — |
| 2011 | Volvo | S40 | — | — | — | N/A | — |
| 2011 | Volvo | V50 | — | — | — | N/A | — |
| 2010 | Volvo | C30 | — | — | — | N/A | — |
| 2010 | Volvo | C70 | — | — | — | N/A | — |
| 2010 | Volvo | S40 | — | — | — | N/A | — |
| 2010 | Volvo | S80 | V8 | — | — | N/A | — |
| 2010 | Volvo | V50 | — | — | — | N/A | — |
| 2009 | Volvo | C30 | — | — | — | N/A | — |
| 2009 | Volvo | C70 | — | — | — | N/A | — |
| 2009 | Volvo | S40 | — | — | — | N/A | — |
| 2009 | Volvo | S80 | V8 | — | — | N/A | — |
| 2009 | Volvo | V50 | — | — | — | N/A | — |
| 2008 | Volvo | C30 | — | — | — | N/A | — |
| 2008 | Volvo | C70 | — | — | — | N/A | — |
| 2008 | Volvo | S40 | — | — | — | N/A | — |
| 2008 | Volvo | S80 | V8 | — | — | N/A | — |
| 2008 | Volvo | V50 | — | — | — | N/A | — |
| 2007 | Volvo | C70 | — | — | — | N/A | — |
| 2007 | Volvo | S40 | — | — | — | N/A | — |
| 2007 | Volvo | S80 | V8 | — | — | N/A | — |
| 2007 | Volvo | V50 | — | — | — | N/A | — |
| 2006 | Volvo | C70 | — | — | — | N/A | — |
| 2006 | Volvo | S40 | — | — | — | N/A | — |
| 2006 | Volvo | V50 | — | — | — | N/A | — |
| 2005 | Volvo | S40 | — | — | — | N/A | — |
| 2005 | Volvo | V50 | — | — | — | N/A | — |
| 2004 | Volvo | S40 | T5 | — | — | N/A | — |
| 2004 | Volvo | S40 | i | — | — | N/A | — |
