Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

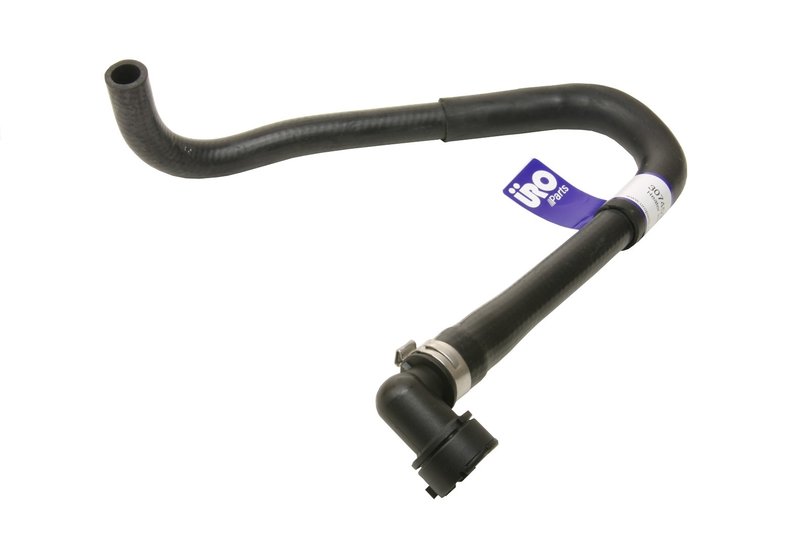

URO 30745334 HVAC Heater Hose
| Brand | URO 30745334 |
|---|---|
| Material | Epdm |
| Length | 25.5 |
| End 1 Inside Diameter | 0.89 |
| End 2 Inside Diameter | 0.56 |
| Working Pressure | 50 |
| Branch Quantity | 0 |
| Centerline Length (mm) | 647.7 |
| Diameter (In) | 0.89 |
| End 1 Inside Diameter (mm) | 22.6 |
| End 2 Inside Diameter (mm) | 14.2 |
| Molded | Yes |
| Number Of Quick Connect Fittings | 1 |
| Fits | Volvo · 24 vehicles |
OE-shaped design. Molded for proper appearance and easier installation.
EPDM construction. Resists heat, ozone, and electrolysis-related breakdown.
Quick-connect fitting. Helps make installation straightforward.
Cross-references URO 30745334, 117 53030 001 and 117 53030 738 for the same application. See all 6.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Volvo Heater Hose Replacement
This URO HVAC heater hose is a molded OE-style replacement for select Volvo cooling and heater circuit applications. It is built for the inlet path from the engine to the heater on 2001-2009 Volvo S60, 2001-2007 Volvo V70, 2003-2007 Volvo XC70, and 2004-2006 Volvo S80.
Part number 30745334 is formed to match the original hose shape for cleaner routing and easier installation. The EPDM construction is made to resist engine heat, ozone, and electrochemical degradation, helping maintain hose integrity in demanding underhood conditions.
Key Features
- OE-shaped molded heater hose for proper routing and appearance
- EPDM rubber construction with ECD resistance
- Heat- and ozone-resistant material
- Temperature rating from -40°F to 275°F (-40°C to 135°C)
- Working pressure rating of 50 psi
- One quick-connect fitting for the specified application
- URO part number 30745334
Detailed Description
URO 30745334 is an HVAC heater hose engineered for Volvo inlet service between the engine and heater core circuit. The molded profile follows the OE shape, which helps the hose sit correctly in the engine bay and supports a direct replacement on the listed Volvo S60, V70, XC70, and S80 model years. The hose measures 25.5 inches in length, with end diameters of 0.89 inch and 0.56 inch, and a centerline length of 647.7 mm.
The EPDM material is selected for resistance to heat, ozone, and electrochemical degradation, which is important in coolant hose service where internal breakdown can shorten service life. If you are replacing a leaking or deteriorated Volvo heater hose, 30745334 provides the correct molded form and connection style for the specified inlet-to-heater routing.
This part cross-references Volvo 30745334-Y and URO-002160 for the same application.
What It Helps Address
- Coolant seepage at a worn heater hose
- Cracking or hardening from heat exposure
- Routing issues caused by a misshaped replacement hose
- Fitment problems at the engine-to-heater inlet connection
- Degradation from ozone and electrochemical exposure
Installation Notes
Verify the hose routing, end diameters, and quick-connect style against the original part before installation. Confirm the vehicle application by model year and heater hose position, since this part is listed for inlet service from the engine to the heater. Inspect adjoining clamps, connectors, and coolant passages for wear or contamination before refilling the cooling system.
Quality Assurance
URO lists this heater hose with guaranteed fitment and a 24-month unlimited mileage warranty. The EPDM construction is specified to resist electrochemical degradation, helping protect the rubber from internal breakdown during service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Volvo | S60 | — | — | N/A | Inlet - Engine to Heater |
| 2008 | Volvo | S60 | — | — | N/A | Inlet - Engine to Heater |
| 2007 | Volvo | S60 | — | — | N/A | Inlet - Engine to Heater |
| 2007 | Volvo | V70 | — | — | N/A | Inlet - Engine to Heater |
| 2007 | Volvo | XC70 | — | — | N/A | Inlet - Engine to Heater |
| 2006 | Volvo | S60 | — | — | N/A | Inlet - Engine to Heater |
| 2006 | Volvo | S80 | — | — | N/A | Inlet - Engine to Heater |
| 2006 | Volvo | V70 | — | — | N/A | Inlet - Engine to Heater |
| 2006 | Volvo | XC70 | — | — | N/A | Inlet - Engine to Heater |
| 2005 | Volvo | S60 | — | — | N/A | Inlet - Engine to Heater |
| 2005 | Volvo | S80 | 2.5L | L5 | N/A | Inlet - Engine to Heater |
| 2005 | Volvo | V70 | — | — | N/A | Inlet - Engine to Heater |
| 2005 | Volvo | XC70 | — | — | N/A | Inlet - Engine to Heater |
| 2004 | Volvo | S60 | — | — | N/A | Inlet - Engine to Heater |
| 2004 | Volvo | S80 | 2.5L | L5 | N/A | Inlet - Engine to Heater |
| 2004 | Volvo | V70 | — | — | N/A | Inlet - Engine to Heater |
| 2004 | Volvo | XC70 | — | — | N/A | Inlet - Engine to Heater |
| 2003 | Volvo | S60 | — | — | N/A | Inlet - Engine to Heater |
| 2003 | Volvo | V70 | — | — | N/A | Inlet - Engine to Heater |
| 2003 | Volvo | XC70 | — | — | N/A | Inlet - Engine to Heater |
| 2002 | Volvo | S60 | — | — | N/A | Inlet - Engine to Heater |
| 2002 | Volvo | V70 | — | — | N/A | Inlet - Engine to Heater |
| 2001 | Volvo | S60 | — | — | N/A | Inlet - Engine to Heater |
| 2001 | Volvo | V70 | — | — | N/A | Inlet - Engine to Heater |
| No rows match your filter. | ||||||
