OE Quality
60-Day Returns

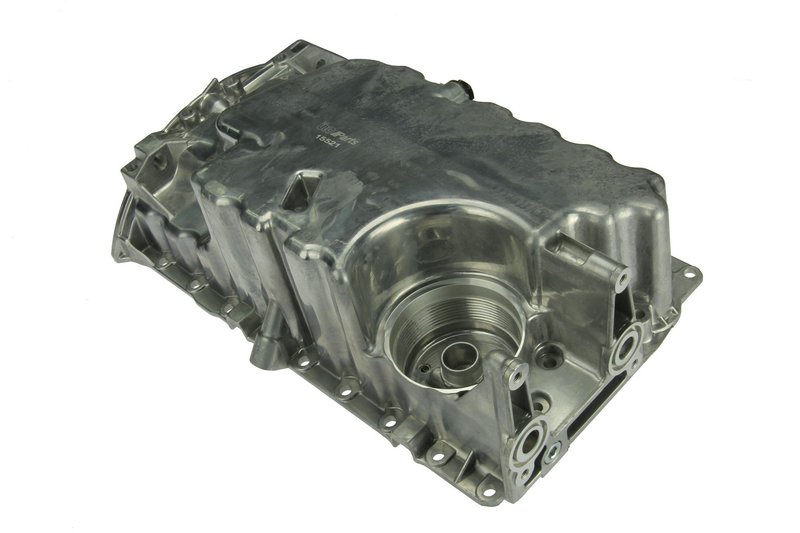

URO 9189158 Engine Oil Pan
Engine Oil Pan for Volvo S40 and V40
This URO engine oil pan is a direct-fit replacement for select 2000-2004 Volvo S40 and Volvo V40 applications. Built to OE dimensions with a natural aluminum finish, it supports proper clearance, sealing alignment, and straightforward bolt-on installation.
Key Features
- Aluminum construction with a gray, natural aluminum finish
- Baffled design helps manage oil control inside the pan
- Includes a dipstick port and windage tray
- Center sump layout for the listed Volvo applications
- 25 mounting holes for OE-style fitment
- Drain thread size: 1.50 mm thread pitch
- Manufactured to OE dimensions for proper clearances
- Quality control performed during production
Product Details
URO part number 9189158 is an engine oil pan for the cylinder block area on select Volvo S40 and Volvo V40 models. The aluminum construction is intended to maintain a stable sealing surface, while the baffled internal design and included windage tray support oil management in normal engine operation. This oil pan is listed with a center sump, dipstick port, and 25 mounting holes, making it a direct replacement choice for 2000-2004 Volvo S40 and 2000-2004 Volvo V40 vehicles.
This part cross-references Spectra Premium VOP06A for the same application.
What It Helps Address
- Cracked or damaged oil pan housing
- Oil leaks at the pan-to-block sealing surface
- Improper fitment from warped or incorrect replacement pans
- Oil control concerns related to a missing or damaged baffle
- Service issues on 2000-2004 Volvo S40 and Volvo V40 models
Installation Notes
Verify the vehicle application before installation on 2000-2004 Volvo S40 and 2000-2004 Volvo V40 models. This URO 9189158 oil pan does not include a gasket or seal, so the sealing components must be sourced separately. Confirm drain plug thread pitch, mounting hole alignment, and clearance around the center sump before final tightening.
Quality Assurance
URO states that this oil pan is manufactured to OE dimensions for proper clearances and easy bolt-on installation, with quality control checks performed throughout production. The part number 9189158 is built to support direct replacement needs for Volvo S40 and Volvo V40 engine service.
| Brand | URO |
|---|---|
| Part Number | 9189158 |
| Material | Aluminum |
| Color | Gray |
| Baffled | Yes |
| Dipstick Port | Yes |
| Sump Location | Center |
| Windage Tray Included | Yes |
| Finish | Natural aluminum finish |
| Gasket Or Seal Included | No |
| Mounting Hole Quantity | 25 |
| Drain Thread Size | 1.50 mm thread pitch |
| Height | 127 |
| Height (In) | 5 |
| Length | 432 |
| Length (In) | 17 |
| Width | 295 |
| Width (In) | 11.6 |
This part fits 10 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2004 | Volvo | S40 | 1.9L | L4 | N/A | |
| 2004 | Volvo | V40 | N/A | |||
| 2003 | Volvo | S40 | N/A | |||
| 2003 | Volvo | V40 | N/A | |||
| 2002 | Volvo | S40 | N/A | |||
| 2002 | Volvo | V40 | N/A | |||
| 2001 | Volvo | S40 | N/A | |||
| 2001 | Volvo | V40 | N/A | |||
| 2000 | Volvo | S40 | N/A | |||
| 2000 | Volvo | V40 | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
