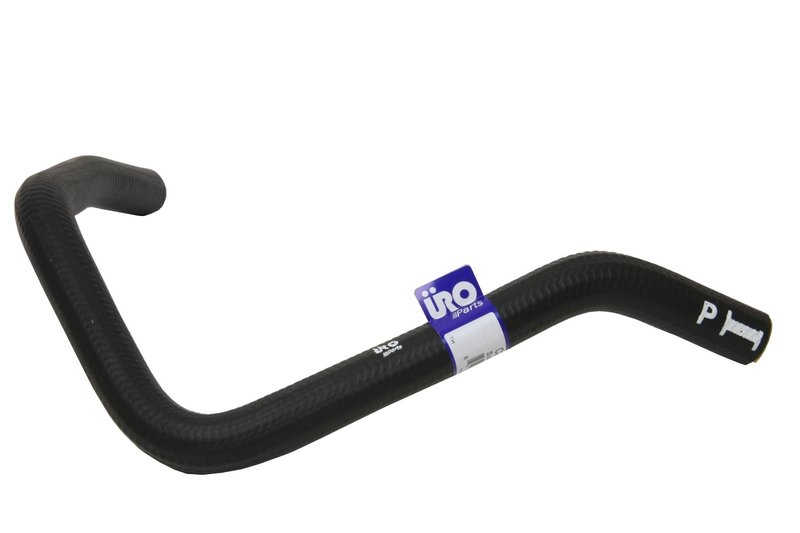

URO C2S8371 Power Steering Return Hose
| Brand | URO C2S8371 |
|---|---|
| Material | Copper plated double wall steel |
| Length | 12.95 |
| Color | Black |
| End 1 Type | No fitting, id hose |
| End 2 Type | No fitting, id hose |
| Inside Diameter | 15.73 |
| O-Rings Included | No |
| End 2 Terminal Type | Straight |
| Bracket Bushings Included | No |
| Copper Washers Included | No |
| Crimped Sleeve Material | Anti corrosion steel |
| End 1 Fitting Size (In) | 0.62 |
| End 2 Fitting Size (In) | 0.62 |
| Fully Assembled Pressure & Return Set | No |
| Heat Sleeves Included | No |
| Hose Position | Reservoir to pump |
| Hose Positioning Clips Included | No |
| Inlet Inside Diameter (In) | 0.62 |
| Length (mm) | 329 |
| Mounting Bracket Included | No |
| Rubber Hose Standard | Exceeds sae j188 specifications |
| Rubber Mounts Included | No |
| Switch Port Included | No |
| Fits | Jaguar · 6 vehicles |
OE dimensions. Made for an easy installation and a tight, leak-proof fit.
Heat- and oil-resistant. Elastomeric hose with fiber braid reinforcement handles pressure pulsation.
Power steering return hose. Helps replace cracked or leaking hose sections to protect pump performance.
Cross-references Genuine C2S8371, C2S 8371 and URO-008659 for the same application. See all 3.
Power Steering Return Hose for Jaguar X-Type
This URO power steering return hose is a direct replacement for the reservoir-to-pump line on 2002-2007 Jaguar X-Type models. Built to OE hose dimensions, Part Number C2S8371 supports a tight, leak-resistant connection where the original hose has cracked, softened, or begun to seep.
- Direct-fit replacement for the power steering return hose
- Fits 2002-2007 Jaguar X-Type, pump to reservoir
- OE-sized hose dimensions for straightforward installation
- Heat- and oil-resistant elastomeric hose construction
- Fiber braid reinforcement helps resist pressure pulsation
- Exceeds SAE J188 rubber hose specifications
- Black hose with 0.62 in. hose ends and 15.73 mm inside diameter
- 24 Month Unlimited Mileage Warranty
Built for OE-Style Routing
URO C2S8371 is engineered as a replacement power steering return hose for the Jaguar X-Type, with the reservoir-to-pump routing specified in the fitment data. The hose is manufactured to OE dimensions to help it seat properly and maintain a secure connection, while the reinforced elastomeric construction is made to handle heat, oil exposure, and pulsation in the steering system. This part cross-references Genuine C2S8371 for the same application.
Common Problems This Hose Can Address
- Power steering fluid seepage from a cracked or aged return hose
- Low-fluid cavitation caused by hose leakage
- Steering pump damage from running the system with insufficient fluid
- Softened or swollen hose material from heat and oil exposure
- Poor sealing at the reservoir-to-pump connection
Installation Notes
Before installation, inspect the reservoir, pump inlet, and adjacent lines for contamination, hardened seals, or damage that could affect sealing. Confirm the hose routing matches the original reservoir-to-pump path on your Jaguar X-Type, and verify the hose ends seat fully before refilling and bleeding the power steering system. Because this hose uses no fittings at either end, proper clamp selection and correct positioning are important for a leak-free repair.
Quality Assurance
Part Number C2S8371 is backed by a 24 Month Unlimited Mileage Warranty. The hose is manufactured to exceed SAE J188 specifications and uses a fiber-braid-reinforced, heat- and oil-resistant rubber construction for dependable service in the power steering return circuit.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2007 | Jaguar | X-Type | N/A | Pump to Reservoir |
| 2006 | Jaguar | X-Type | N/A | Pump to Reservoir |
| 2005 | Jaguar | X-Type | N/A | Pump to Reservoir |
| 2004 | Jaguar | X-Type | N/A | Pump to Reservoir |
| 2003 | Jaguar | X-Type | N/A | Pump to Reservoir |
| 2002 | Jaguar | X-Type | N/A | Pump to Reservoir |
