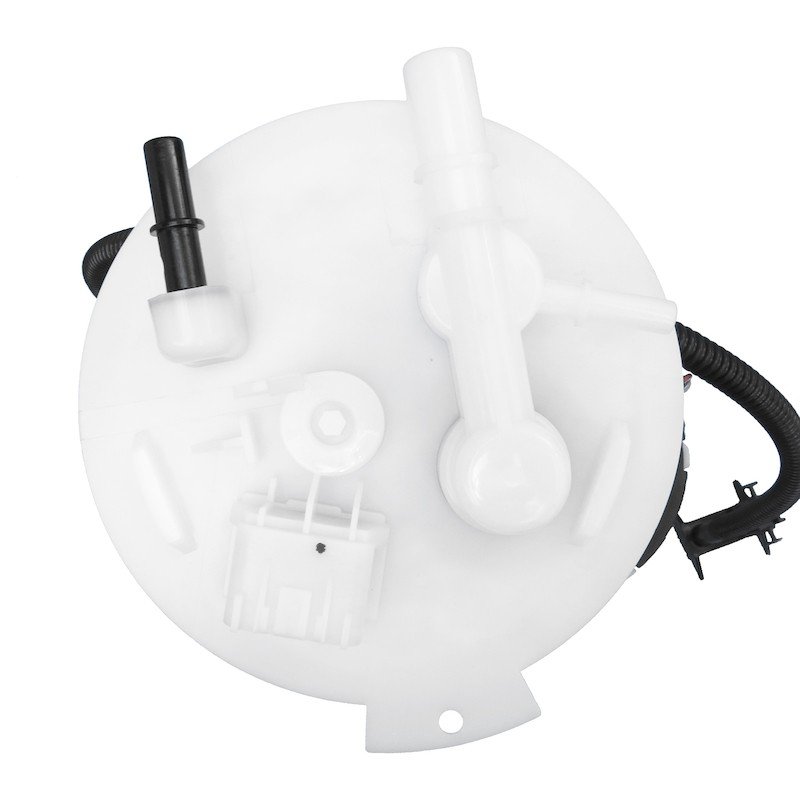

US Motor Works USEP4040M Fuel Pump Module Assembly - Right

Fuel Pump Module Assembly for Equinox and Terrain

US Motor Works USEP4040M is a fuel pump module assembly built for direct-fit service on select Chevrolet Equinox and GMC Terrain applications. It is engineered to meet or exceed original equipment specifications and uses quality materials for dependable fuel delivery.

Key Features

• Fuel pump module assembly for in-tank fuel system service
• Designed for 12.0 VDC electrical systems
• Flow rate: 190.0 LPH minimum
• Pressure range: 80.0 to 90.0 PSI
• Fuel level sender resistance: 40.0 ohms full, 250.0 ohms empty
• Includes hardware and tank seal where applicable, plus installation instructions
• Direct replacement for select right-side in-tank applications

Detailed Description

Built for OE-style fit and function, the US Motor Works USEP4040M fuel pump module assembly supports consistent fuel delivery for 2017 Chevrolet Equinox, right in-tank assembly with one electrical connector, as well as 2012-2015 Chevrolet Equinox PZEV Spec and 2017 GMC Terrain, right in-tank assembly with one electrical connector, plus 2012-2015 GMC Terrain PZEV Spec. This module is specified for 12.0 VDC operation and is rated for 190.0 LPH minimum flow with 80.0 to 90.0 PSI pressure capability. The integrated sender uses 40.0 ohms at full and 250.0 ohms at empty for fuel level reporting. USEP4040M is also a cross-reference for Delphi FG1910 for the same application.

What It Helps Address

• Hard starting caused by weak fuel delivery
• Engine hesitation or stalling from low fuel pressure
• Inaccurate fuel level readings from a worn sender
• Fuel starvation under load in the tank-mounted system
• Replacement needs for a failing right-side in-tank module

Installation Notes and Tips

Verify the vehicle’s year, make, model, position, and PZEV or connector configuration before installation. This part fits 2017 Chevrolet Equinox, right; 2012-2015 Chevrolet Equinox, right; 2017 GMC Terrain, right; and 2012-2015 GMC Terrain, right. Follow the included installation instructions and confirm tank seal and connector condition during service.

Quality Assurance

US Motor Works states that its fuel modules are designed and tested to meet or exceed original equipment specifications. The USEP4040M is manufactured with high-quality materials to support consistent performance in the intended application.
