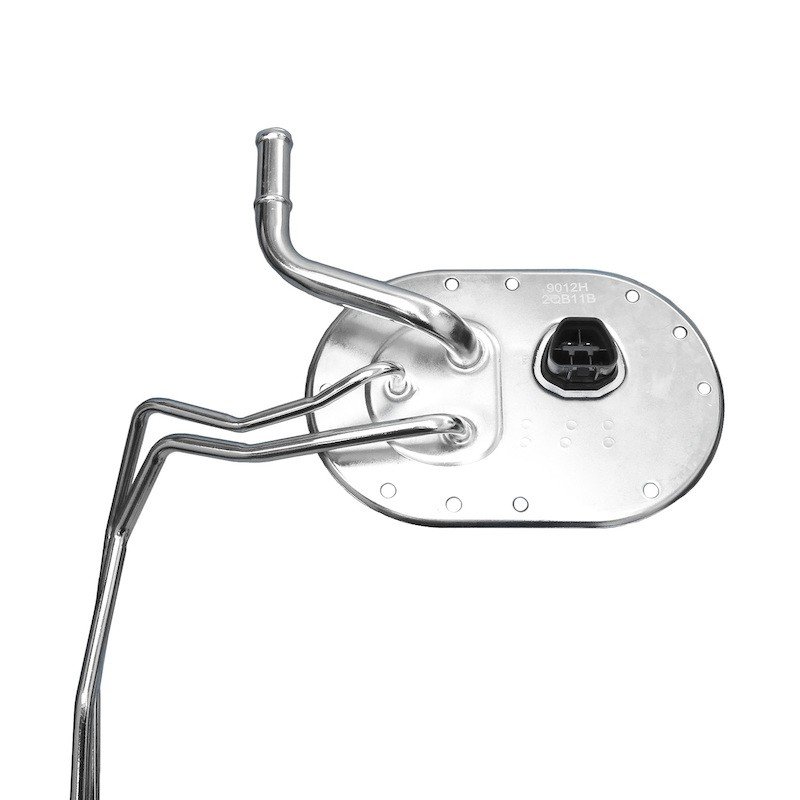

US Motor Works USEP9012H Fuel Pump Hanger Assembly
| Brand | US Motor Works USEP9012H |
|---|---|
| Empty | 110.6.0 ohms |
| Flow Rate Min | 150.0 lph |
| Full | 2.7.0 ohms |
| Includes | Hardware and tank seal where applicable |
| Pressure Max | 85.0 psi |
| Pressure Min | 75.0 psi |
| Voltage | 12.0 vdc |
| Fits | Toyota · 3 vehicles |
OE-spec design. Built and tested to meet or exceed original equipment specifications.
Fuel delivery support. Rated for 150.0 LPH flow with a 75.0 to 85.0 PSI operating range.
Sender circuit values. Includes empty and full resistance targets for fuel level feedback.
Cross-references Spectra Premium SP9012H, 23221-46010 and 77203-35461 for the same application. See all 4.
Fuel Pump Hanger Assembly Overview
The US Motor Works USEP9012H fuel pump hanger assembly is built for direct replacement service on select Toyota fuel system applications. It is engineered to meet or exceed original equipment specifications and supports consistent fuel delivery under the required pressure range.
Key Features
- Fuel pump hanger assembly for air and fuel delivery service
- Operates on 12 VDC electrical systems
- Supports 75.0 to 85.0 PSI pressure range
- Flow rate rated at 150.0 LPH
- Fuel level sender resistance values: 110.6 ohms empty and 2.7 ohms full
- Includes hardware and tank seal where applicable
Detailed Description
US Motor Works USEP9012H is a fuel pump hanger assembly for 1996-1998 Toyota 4Runner applications. This part number is built with OE-spec targets in mind and is suited for restoring proper fuel system operation when the original hanger assembly is worn, damaged, or no longer maintaining the required output. The USEP9012H also cross-references Spectra Premium SP9012H and other listed OE numbers for the same application.
Common Uses
- Restores fuel delivery when the original hanger assembly no longer maintains pressure
- Addresses inconsistent fuel flow in the fuel system
- Replaces a worn fuel level sender circuit with incorrect empty or full readings
- Helps correct drivability issues tied to weak fuel supply
Installation Notes
Fits 1996-1998 Toyota 4Runner. Verify electrical connector, tank configuration, and fuel system specifications before installation. Confirm that the replacement matches the vehicle’s required pressure and sender resistance values. Follow standard fuel system safety procedures during service.
Quality Assurance
US Motor Works states that its fuel pump hanger assemblies are designed and tested to meet or exceed original equipment specifications.
| Year | Make | Model | Submodel | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|
| 1998 | Toyota | 4Runner | SR5 | 3.4L | V6 | — |
| 1997 | Toyota | 4Runner | SR5 | 3.4L | V6 | — |
| 1996 | Toyota | 4Runner | SR5 | 3.4L | V6 | — |
