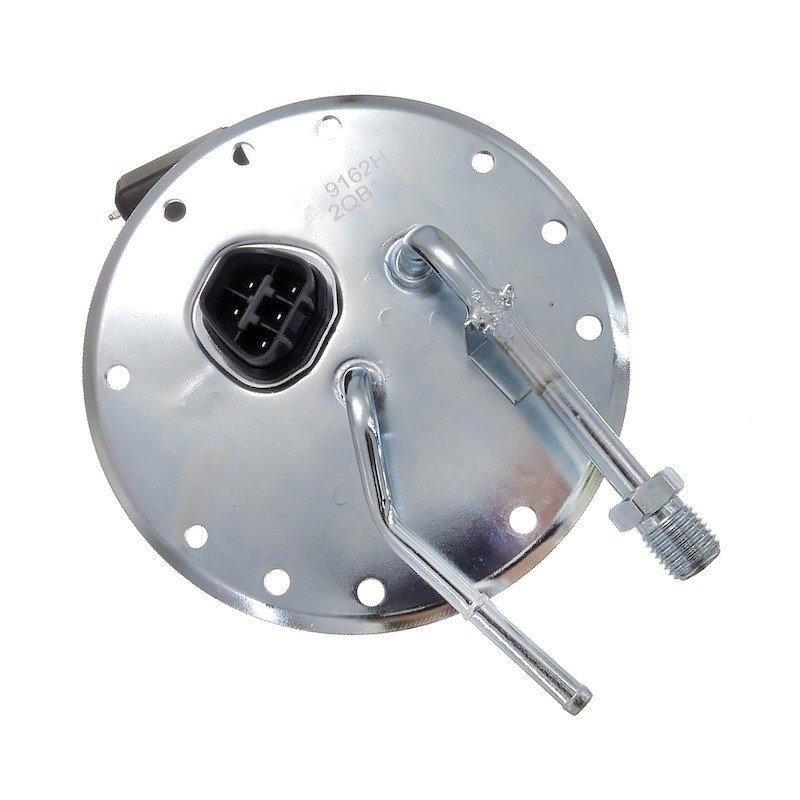

US Motor Works USEP9162H Fuel Pump Hanger Assembly
| Brand | US Motor Works USEP9162H |
|---|---|
| Empty | 110.0 ohms |
| Flow Rate Min | 170.0 lph |
| Full | 4.0 ohms |
| Includes | Hardware and tank seal where applicable |
| Pressure Max | 110.0 psi |
| Pressure Min | 80.0 psi |
| Voltage | 12.0 vdc |
| Fits | Geo and Toyota · 10 vehicles |
OE-spec tested. Designed to meet or exceed original equipment specifications.
Fuel pump hanger assembly. Supports the fuel pump and related components in one unit.
12V operation. Built for standard automotive electrical systems.
Cross-references Spectra Premium SP9162H for the same application. See all 1.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Hanger Assembly for Toyota Corolla and Geo Prizm
US Motor Works USEP9162H is a fuel pump hanger assembly built for select Toyota Corolla and Geo Prizm applications. It is engineered to meet or exceed original equipment specifications, with fuel delivery performance centered on consistent pressure and flow.
Key Features
- Fuel pump hanger assembly for air and fuel delivery service
- 12.0 VDC electrical specification
- Flow rate: 170.0 LPH minimum
- Pressure range: 80.0 PSI minimum to 110.0 PSI maximum
- Fuel level sender resistance: 110.0 ohms empty, 4.0 ohms full
- Includes hardware and tank seal where applicable
Detailed Description
US Motor Works USEP9162H is designed for direct replacement in fuel system service where a hanger-mounted pump assembly is required. The unit is specified for stable fuel delivery, with a minimum flow rate of 170.0 LPH and operating pressure between 80.0 and 110.0 PSI. Those specifications support proper fuel supply for the listed Toyota Corolla and Geo Prizm applications, including 1993-1997 Geo Prizm, 1997 Toyota Corolla USA produced, and 1993-1996 Toyota Corolla US built.
This part number, USEP9162H, is a practical choice when replacing a worn fuel pump hanger assembly on a Toyota Corolla or Geo Prizm. It cross-references Spectra Premium SP9162H for the same application.
What It Helps Address
- Hard starting caused by weak fuel delivery
- Fuel pressure loss under load
- Erratic fuel gauge readings from sender wear
- Fuel starvation from a failing hanger assembly
- Noise or drivability issues related to an aging in-tank pump assembly
Installation Notes and Tips
Verify the vehicle build details before ordering, since fitment differs between US-built and USA-produced Corolla applications. Confirm connector, sender, and tank seal requirements against the original assembly before installation. Clean the tank area thoroughly and inspect the fuel lines and electrical connections during replacement. For fitment-specific searches, this part is listed for 1993-1997 Geo Prizm, 1997 Toyota Corolla USA produced, and 1993-1996 Toyota Corolla US built.
Quality Assurance
US Motor Works states that this fuel pump hanger assembly is designed and tested to meet or exceed original equipment specifications. Part number USEP9162H is built around the listed pressure, flow, voltage, and sender-resistance requirements for the specified applications.
| Year | Make | Model | Submodel | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|
| 1997 | Geo | Prizm | LSi | 1.8L | L4 | — |
| 1997 | Toyota | Corolla | LE | 1.8L | L4 | USA produced |
| 1996 | Geo | Prizm | LSi | 1.8L | L4 | — |
| 1996 | Toyota | Corolla | DX | 1.8L | L4 | US Built |
| 1995 | Geo | Prizm | LSi | 1.8L | L4 | — |
| 1995 | Toyota | Corolla | LE | 1.8L | L4 | US Built |
| 1994 | Geo | Prizm | LSi | 1.8L | L4 | — |
| 1994 | Toyota | Corolla | LE | 1.8L | L4 | US Built |
| 1993 | Geo | Prizm | LSi | 1.8L | L4 | — |
| 1993 | Toyota | Corolla | LE | 1.8L | L4 | US Built |
