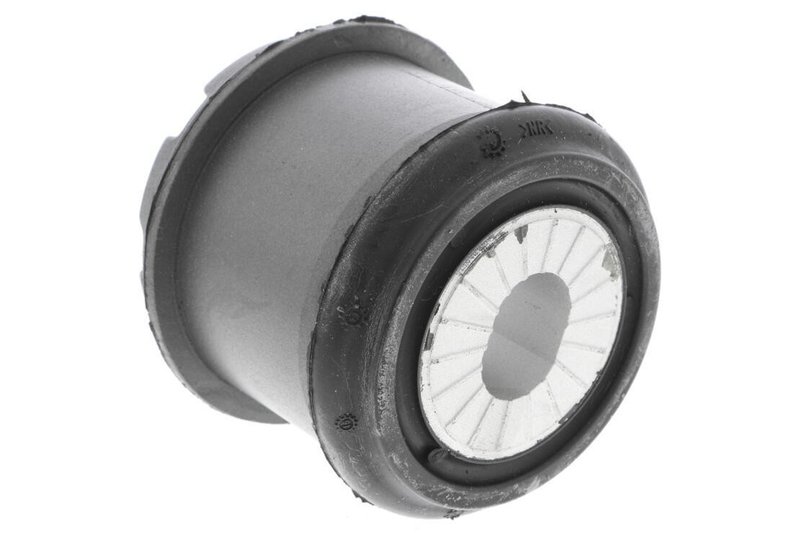

Vaico V10-0268 Transmission Mount - Rear

Transmission Mount for Audi and Volkswagen

Restore drivetrain support with this VAICO transmission mount, part number V10-0268. Built as a rubber-metal mount with an 83 mm diameter, 83 mm length, 83 mm width, and 72 mm height, it is sized for rear mounting applications on select Audi A4, A4 Quattro, S4, A6, A6 Quattro, and Volkswagen Passat models.

VAICO V10-0268 is an OE-style replacement for vehicles that need a stable rear transmission mount to help control movement between the transmission and body structure. This part cross-references OE numbers 8D0 399 415 C and 8D0 399 419 C for the same application.

Key Features

• Rubber-metal mount construction for drivetrain isolation
• 83 mm diameter, 83 mm length, and 83 mm width
• 72 mm overall height for proper rear mount fitment
• Rear position application for select Audi and Volkswagen models
• VAICO part number V10-0268 for direct catalog identification
• Fits OE reference 8D0399419C applications

Detailed Description

This transmission mount is used in rear mounting locations on 1996-2002 Audi A4, A4 Quattro, S4, A6, and A6 Quattro models, as well as 1998-2005 Volkswagen Passat applications listed for the rear position. It is also listed for specific chassis breakpoints, including 2002 Audi A4, A4 Quattro, and S4 through 8D-2-010 000, plus 2001-2002 Volkswagen Passat from 3B-1-050 001 and 2001 Passat to 3B-1-049 999. The rubber-metal design helps maintain drivetrain location while reducing vibration transfer through the body.

VAICO V10-0268 is a practical choice when replacing a worn rear transmission mount on Audi A4 rear mount applications, Audi A4 Quattro rear mount applications, or Volkswagen Passat rear mount applications. The compact 83 mm x 83 mm footprint and 72 mm height support accurate replacement where OE dimensions matter.

What This Part Helps Address

• Excess drivetrain movement under acceleration or load
• Vibration felt through the cabin from a worn mount
• Clunking or shifting noise from deteriorated rubber support
• Misalignment caused by a fatigued rear transmission mount
• Loss of stable transmission positioning in the mount bracket

Installation Notes and Tips

Confirm the OE number and chassis breakpoint before ordering, especially on 1998-2002 Audi A4, A4 Quattro, S4, A6, and A6 Quattro applications and 2001-2005 Volkswagen Passat rear mount listings. Match the rear position exactly, and compare the mount dimensions to the removed part before installation. Inspect adjacent drivetrain mounts and brackets for wear so the replacement can seat correctly.

Quality Assurance

VAICO supplies OE-style replacement parts for European vehicle applications, and this transmission mount is cataloged to OE reference 8D0399419C for application matching. Part number V10-0268 is specified for the listed Audi and Volkswagen rear mount fitments.
