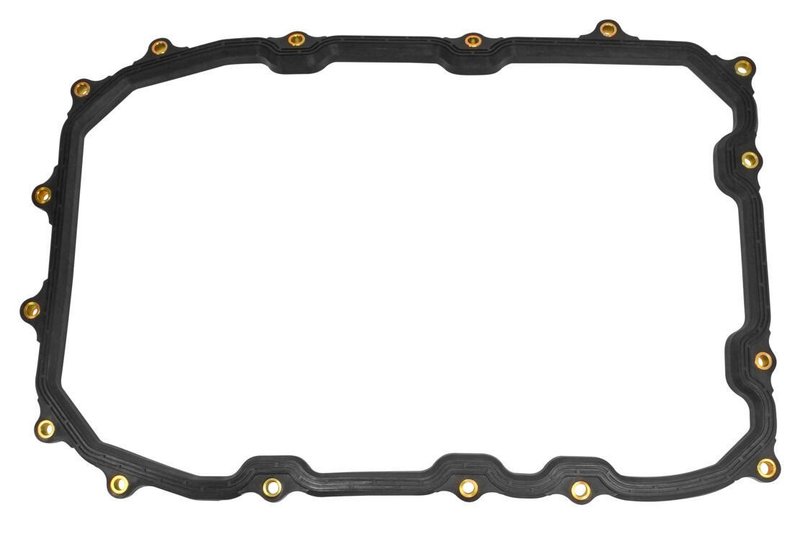

Vaico V10-0436 Transmission Oil Pan Gasket

Transmission Oil Pan Gasket for 09D Applications

Vaico V10-0436 is a transmission oil pan gasket built for vehicles using the 09D transmission type. It is sized at 412 mm in length and 280 mm in width, with a 12.55 mm height, for a direct sealing solution in the transmission pan area. This gasket is a practical replacement for service work on Audi Q7, Porsche Cayenne, and Volkswagen Touareg models with OE reference 09D321371.

VAICO product line parts are developed as aftermarket replacement components for European vehicle service, with fitment focused on OE-number matching and application-specific dimensions. The V10-0436 follows that approach for 09D transmission maintenance.

• Transmission oil pan gasket for 09D transmission type
• Dimensions: 412 mm length, 280 mm width, 12.55 mm height
• Direct replacement for OE reference 09D321371
• Fits Audi Q7, Porsche Cayenne, and Volkswagen Touareg applications listed below
• Part number: V10-0436

Detailed Fitment and Application

Compatible With 2007-2010 Audi Q7, N/A; 2008-2010 Porsche Cayenne, N/A; 2003-2006 Porsche Cayenne, N/A; and 2004-2010 Volkswagen Touareg, N/A. This part cross-references 9D 321 371 and 955 397 016 00 for the same application. Use V10-0436 when servicing the transmission pan on vehicles equipped with the 09D transmission and matching OE number 09D321371.

Common Service Uses

• Transmission fluid seepage at the pan sealing surface
• Leak repair after transmission service or fluid change
• Replacement of a flattened or aged pan gasket
• Restoration of a proper seal on 09D transmission pans
• Maintenance on Audi Q7, Porsche Cayenne, and Volkswagen Touareg drivetrains

Installation Notes and Tips

Clean the transmission pan and mating surface thoroughly before installation. Verify the transmission type is 09D and confirm OE number 09D321371 before ordering or installing V10-0436. Inspect the pan flange for distortion and check the sealing surfaces for debris or old gasket material so the new gasket seats evenly.

Quality Assurance

VAICO supplies aftermarket replacement parts for European vehicle applications, and this gasket is built to match the listed OE reference and dimensional requirements for the specified fitments.
