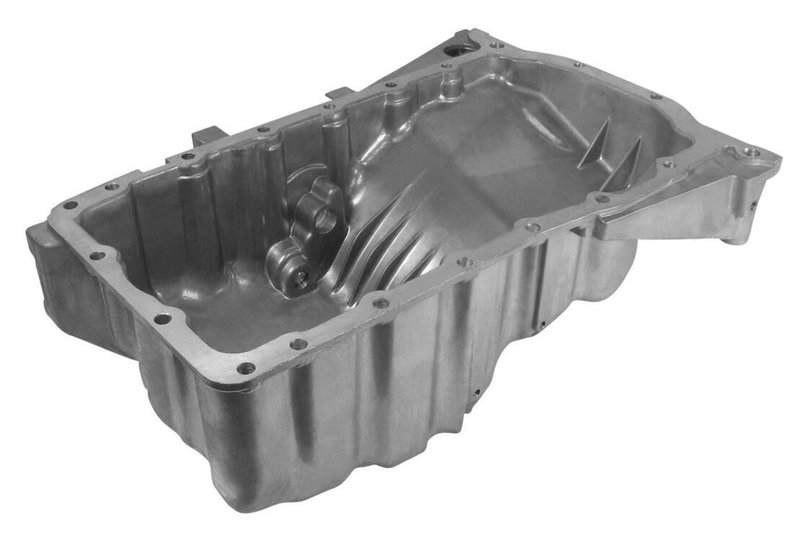

Vaico V10-1894 Engine Oil Pan

VAICO Engine Oil Pan for Audi A4

The VAICO V10-1894 engine oil pan is a lower-section aluminium replacement for select 2002-2006 Audi A4 and 2002-2005 Audi A4 Quattro applications. It is built with a backflow design, includes an oil drain plug, and is supplied without an oil pan gasket.

Key Features

• Brand: VAICO / VAICO
• Part number: V10-1894
• Lower section engine oil pan for the cylinder block area
• Aluminium wet sump construction
• With backflow design
• With oil drain plug
• Opening for oil sensor
• Dimensions: 430 mm length, 310 mm width, 144 mm height
• Direct-fit replacement for select Audi A4 and Audi A4 Quattro models

Product Details

VAICO V10-1894 is an aluminium engine oil pan engineered for the lower section of the wet sump assembly. It matches the listed Audi A4 and Audi A4 Quattro fitments and is specified with an opening for the oil sensor, making it a practical replacement when the original pan is damaged, corroded, or leaking. This part cross-references URO 06B103601CD for the same application.

What It Helps Fix

• Oil leaks from a cracked or warped oil pan
• Drain plug damage or stripped drain threads
• Corrosion or impact damage to the lower sump section
• Oil sensor opening issues on the original pan
• Replacement needs on Audi A4 and Audi A4 Quattro engine service repairs

Installation Notes

Fits 2002-2006 Audi A4, N/A. Fits 2002-2005 Audi A4 Quattro, N/A. Verify engine code, sensor opening requirements, and pan dimensions before installation. This oil pan is supplied without an oil pan gasket, so the sealing surface should be cleaned and inspected carefully during service. Confirm drain plug and sensor fitment against the original component before assembly.

Quality Assurance

VAICO parts are cataloged for OE-style replacement use, and this V10-1894 oil pan is built to match the listed application details for Audi A4 and Audi A4 Quattro service work.
