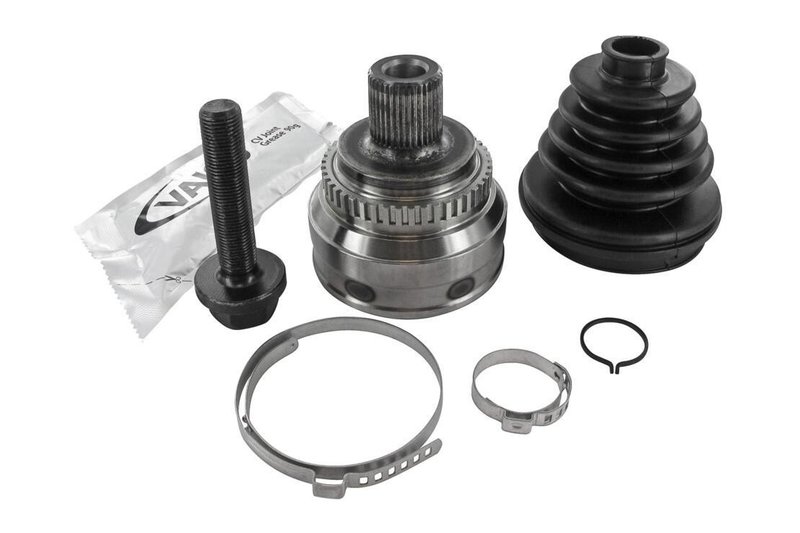

Vaico V10-2170 CV Joint Kit

Vaico V10-2170 CV Joint Kit for Audi

The Vaico V10-2170 is a wheel-side CV joint kit built for select Audi driveline applications that require an outer joint with an ABS ring. It is specified for rear and front outer positions across Audi 100, 100 Quattro, 200 Quattro, A6 Quattro, S4, and S6 fitments.

Key Features

• CV joint kit for wheel-side service on select Audi driveline applications
• Drive shaft design with ABS ring
• 25 internal teeth on the wheel side
• 38 outer gearing teeth on the wheel side
• 45 teeth on the ABS ring
• Seal diameter: 59.5 mm
• Outer diameter: 90 mm
• Length: 115 mm; width: 115 mm; height: 200 mm
• Vaico part number V10-2170 for catalog and fitment lookup

Detailed Description

VAICO V10-2170 is a replacement CV joint kit for wheel-side service where the outer joint and ABS tone ring are part of the driveline assembly. It is listed for Audi 100 and 100 Quattro front right outer and front left outer applications from 1990-1991, Audi 200 Quattro rear right outer and rear left outer applications from 1990-1991, Audi 100 Quattro rear right outer and rear left outer applications from 1992-1994, Audi S4 rear right outer and rear left outer applications from 1992-1994, Audi S6 rear right outer and rear left outer applications from 1995, and Audi A6 Quattro rear right outer and rear left outer applications from 1995-1998. This part cross-references BBB Industries 14892 and Four Seasons 75707 for the same application. The VAICO line is used for direct-fit replacement parts across European vehicle service categories, and this kit follows that service-focused approach for driveline repair.

What It Helps Address

• Clicking or popping from a worn outer CV joint during turns
• ABS warning concerns related to a damaged or incorrect tone ring setup
• Vibration or shudder from wear at the wheel-side joint
• Grease loss and contamination after joint seal deterioration
• Noise from driveline wear on Audi front or rear outer axle positions

Installation Notes and Tips

Confirm the axle position, wheel-side orientation, and ABS ring tooth count before ordering. Match the vehicle by year, model, and position exactly as listed for Audi 100, 100 Quattro, 200 Quattro, A6 Quattro, S4, and S6 applications. Inspect the mating shaft, seal surface, and surrounding components for wear before installation, and verify that the replacement joint matches the original internal teeth and outer gearing specifications.

Quality Assurance

VAICO supplies service parts for European vehicle repair applications, and this CV joint kit is cataloged with detailed dimensional and tooth-count specifications to support accurate replacement selection. Part number V10-2170 is referenced for fitment verification and ordering accuracy.
