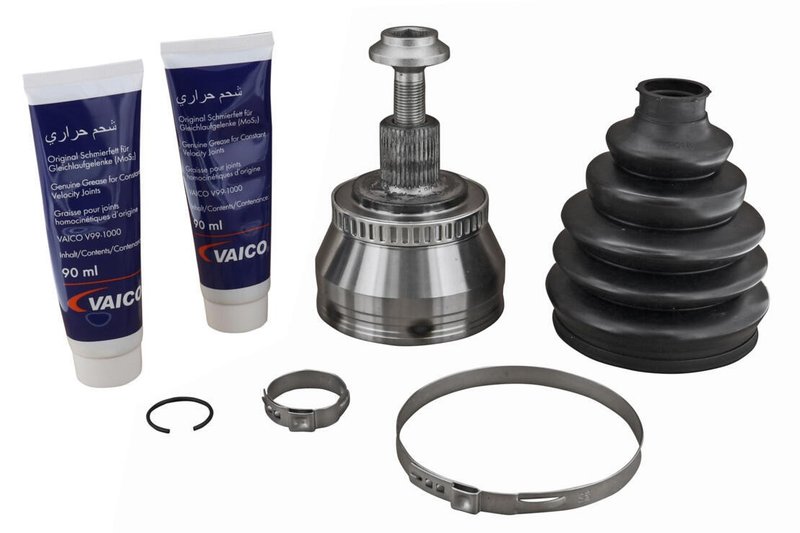

Vaico V10-2174 CV Joint Kit

Vaico V10-2174 CV Joint Kit for Audi A4

The Vaico V10-2174 is a wheel-side CV joint kit built for select Audi A4 and Audi A4 Quattro applications from 2004-2009. It is specified for front right outer, front left outer, front right inner, and front left inner positions depending on chassis and drivetrain configuration.

Key Features

• Part number: V10-2174
• CV joint kit for the driveline and axle service category
• Wheel-side application with a 59.5 mm seal diameter
• Internal teeth, wheel side: 27
• Outer gearing, wheel side: 38
• ABS ring tooth count: 45
• Dimensions: 115 mm length, 115 mm width, 200 mm height
• Weight: 2.640 kg
• Brand line: VAICO service parts for drivetrain repair applications

Detailed Description

Vaico V10-2174 is an aftermarket CV joint kit for Audi A4 and Audi A4 Quattro driveline service work. The listed specifications include 27 internal teeth on the wheel side, 38 outer gearing teeth on the wheel side, and a 45-tooth ABS ring, which are important reference points when matching the correct axle-side joint to the vehicle. This part number, V10-2174, is referenced for multiple front axle positions on 2004-2009 Audi A4 and Audi A4 Quattro models, including wheel-side outer and inner applications where listed by chassis break.

VAICO is used here as the product line designation for service replacement parts focused on drivetrain repair. For buyers searching by fitment, this listing covers Audi A4 CV joint kit replacement needs where the original joint has wear at the wheel side, especially on front axle applications. This part cross-references 8E0 498 099 E and 8E0 498 099 EX for the same application.

What It Is Used For

• Replacing a worn or noisy outer CV joint on an Audi A4 front axle
• Addressing clicking during turns caused by joint wear
• Restoring smooth power transfer through the driveline
• Correcting vibration or driveline play linked to a damaged wheel-side joint
• Servicing ABS-related axle components where the 45-tooth ring specification is required

Installation Notes and Tips

Verify the vehicle’s chassis break and axle position before ordering, since the fitment changes by model year and front axle location. Confirm the wheel-side tooth count, ABS ring tooth count, and seal diameter against the original part before installation. For 2004 Audi A4 and A4 Quattro applications, check the listed VIN breakpoints in the fitment data to ensure the correct front right or front left outer joint is selected.

• Fits 2005-2009 Audi A4, Front Right Outer
• Fits 2005-2009 Audi A4, Front Left Outer
• Fits 2005-2009 Audi A4 Quattro, Front Right Outer
• Fits 2005-2009 Audi A4 Quattro, Front Left Outer
• Fits 2005-2006 Audi A4 Quattro, Front Right Inner
• Fits 2005-2006 Audi A4 Quattro, Front Left Inner
• Fits 2004 Audi A4, Front Right Outer, from chassis/VIN 8E-4-195 501
• Fits 2004 Audi A4, Front Left Outer, from chassis/VIN 8E-4-195 501
• Fits 2004 Audi A4 Quattro, Front Right Outer, from chassis/VIN 8E-4-195 501
• Fits 2004 Audi A4 Quattro, Front Left Outer, from chassis/VIN 8E-4-195 501
• Fits 2004 Audi A4 Quattro, Front Right Outer, from chassis/VIN 8E-4-350 001
• Fits 2004 Audi A4 Quattro, Front Left Outer, from chassis/VIN 8E-4-350 001

Quality Assurance

Vaico drivetrain service parts are cataloged with detailed dimensional and tooth-count specifications to support accurate OE-style replacement selection. Use the part number V10-2174 and the listed fitment notes to confirm the correct Audi A4 CV joint kit before service.
