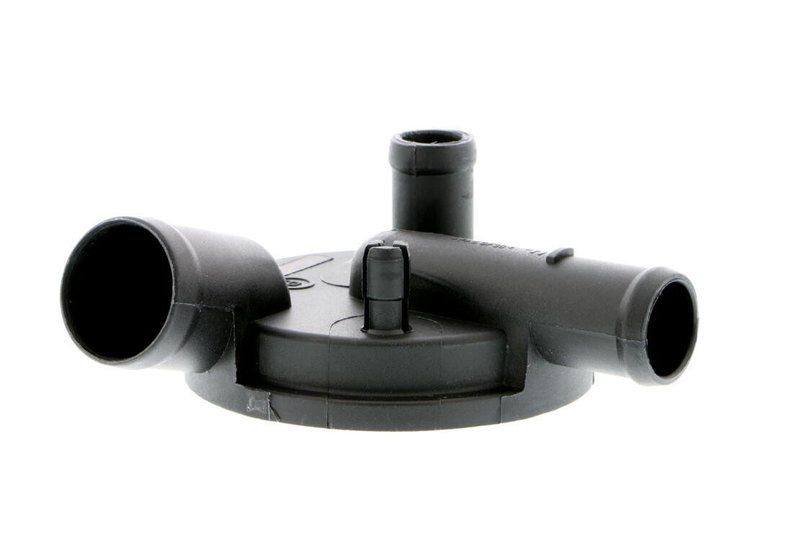

Vaico V10-2270 Engine Crankcase Vent Valve
| Brand | Vaico V10-2270 |
|---|---|
| Fitting Position | Cylinder Head |
| Height [mm] | 53 |
| Housing material | Polyamid 6.6 |
| Length [mm] | 114 |
| Operating Mode | Pressure Controlled |
| Packaging Depth [cm] | 6 |
| Packaging height [cm] | 13,5 |
| Packaging width [cm] | 13,5 |
| Recommended replace interval [km] | 60000 |
| Recommended replace interval [years] | 3 |
| Valve type | Diaphragm Valve |
| Weight [kg] | 0.088 |
| Width [mm] | 110 |
| Product line | VAICO |
| Fits | Volkswagen · 3 vehicles |
Pressure controlled. Diaphragm valve regulates crankcase ventilation flow.
Polyamide 6.6 housing. Durable construction for dependable service.
Crankcase vent valve. Helps manage blow-by gases in the ventilation system.
Cross-references Dorman - HELP 46073, URO 028129101D and 028 129 101 for the same application. See all 8.
Engine Crankcase Vent Valve for Volkswagen Jetta
The Vaico V10-2270 engine crankcase vent valve is a pressure-controlled diaphragm valve for the crankcase ventilation system. It mounts at the cylinder head and is built with a Polyamid 6.6 housing for OE-style service on select Volkswagen Jetta applications.
Fits 1997-1999 Volkswagen Jetta, N/A. This Vaico crankcase vent valve is also referenced by part number V10-2270 for quick catalog matching.
Key Features
- Pressure-controlled crankcase vent valve for emission control service
- Diaphragm valve design for crankcase ventilation regulation
- Cylinder head mounting position
- Polyamid 6.6 housing material
- Dimensions: 114 mm length, 110 mm width, 53 mm height
- Recommended replacement interval: 60,000 km or 3 years
Detailed Description
Vaico V10-2270 is an engine crankcase vent valve used in the emission control and crankcase ventilation system to manage pressure regulation through a diaphragm-style valve assembly. On 1997-1999 Volkswagen Jetta models listed for this application, it supports proper crankcase ventilation service at the cylinder head location. The VAICO product line focuses on OE-style replacement parts for European vehicle maintenance, and V10-2270 is cataloged for direct part matching in service and repair workflows.
This part cross-references Dorman - HELP 46073 for the same application.
What It Is Used For
- Crankcase pressure regulation issues
- Oil vapor routing concerns in the ventilation system
- Emission control service on the cylinder head-mounted vent assembly
- Replacement of a worn diaphragm valve in Volkswagen Jetta applications
Installation Notes and Tips
Verify the cylinder head mounting location and compare the original valve dimensions before installation. Confirm the vehicle application against the listed 1997-1999 Volkswagen Jetta fitment and match the part number V10-2270 to the existing component when servicing the crankcase ventilation system.
Quality Assurance
Vaico supplies OE-style replacement components for European vehicle maintenance. This part is specified with a pressure-controlled operating mode, diaphragm valve construction, and a recommended service interval of 60,000 km or 3 years.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1999 | Volkswagen | Jetta | — | 1.9L | L4 | N/A | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 1998 | Volkswagen | Jetta | TDI | 1.9L | L4 | N/A | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 1997 | Volkswagen | Jetta | TDI | 1.9L | L4 | N/A | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
