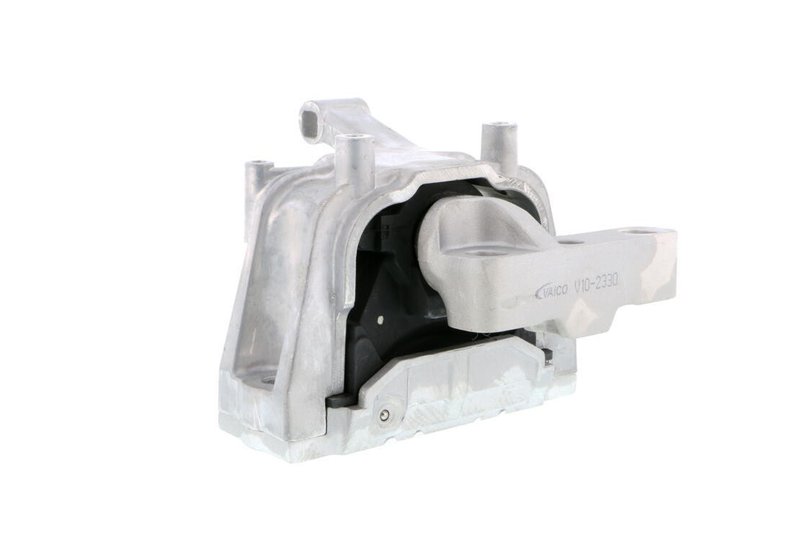

Vaico V10-2330 Engine Mount - Left or Right

Engine Mount for Audi Q3 and Volkswagen Tiguan

Vaico V10-2330 is a rubber-metal engine mount built for select Audi Q3, Audi Q3 Quattro, and Volkswagen Tiguan applications. With OE-style dimensions and a direct-fit mounting design, it supports stable engine positioning in the engine bay.

VAICO product line components are developed for European vehicle repair needs, with attention to fit, material selection, and application-specific dimensions. This engine mount follows that approach for front-engine mounting service on the listed vehicles.

Key Features

• Rubber-metal mount construction for engine support and vibration isolation
• Height: 137 mm
• Length: 186 mm
• Width: 170 mm
• Weight: 2.054 kg
• Direct replacement style for select Audi Q3, Audi Q3 Quattro, and Volkswagen Tiguan applications
• Part number V10-2330 for catalog and service verification

Detailed Description

The Vaico V10-2330 engine mount is specified with a 137 mm height, 186 mm length, and 170 mm width, giving technicians the dimensional reference needed for OE-style replacement work. Its rubber-metal mount design is used to secure the engine while helping control vibration transfer into the chassis. For service on the Audi Q3, Audi Q3 Quattro, and Volkswagen Tiguan, V10-2330 provides a fitment-focused solution for restoring proper engine support.

This part cross-references OE numbers 5N0 199 262 E and 5N0 199 262 F for the same application. Use V10-2330 when replacing a worn engine mount on the listed vehicles and when matching the original mounting style is required.

Vehicle Fitment

• Fits 2015-2017 Audi Q3, right. Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.
• Fits 2017 Audi Q3, left. Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.
• Fits 2015-2017 Audi Q3 Quattro, right. Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.
• Fits 2017 Audi Q3 Quattro, left. Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.
• Fits 2009-2017 Volkswagen Tiguan, right. Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.

What It Helps Address

• Excess engine movement under acceleration or load
• Vibration transferred into the cabin from a worn mount
• Clunking or shifting sensations from deteriorated mount material
• Misalignment caused by a collapsed or separated engine support
• Replacement needs during engine mount service on the listed Audi and Volkswagen models

Installation Notes and Tips

Confirm the vehicle position, side, and OE reference before installation. Compare the old mount to the new part for height, length, and width to verify correct application. Because this mount is used in tight engine-bay service areas, check nearby components such as the brake hydraulic hose, steering tie rod end, and stabilizer bar link kit during removal and reinstallation.

Quality Assurance

Vaico V10-2330 is built as an OE-style replacement engine mount for the listed applications, with dimensions and mounting type selected to match service requirements on Audi Q3, Audi Q3 Quattro, and Volkswagen Tiguan models.
