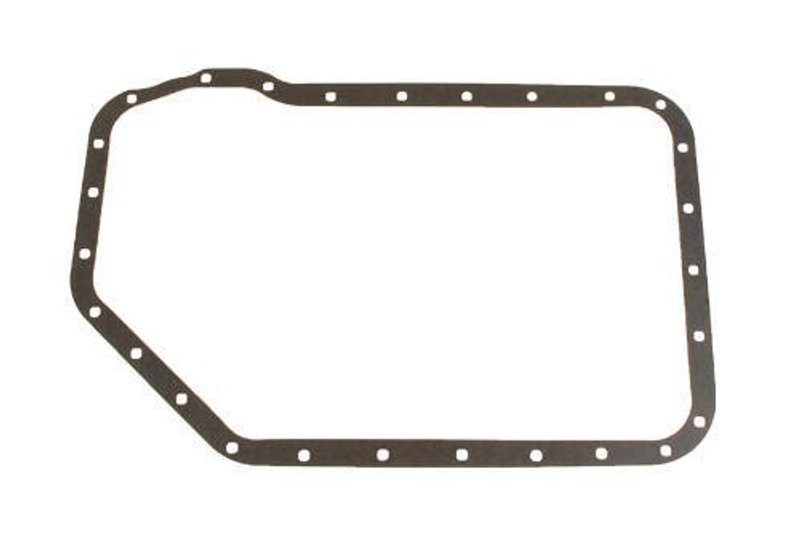

Vaico V10-2502 Transmission Oil Pan Gasket

Transmission Oil Pan Gasket for Audi and VW

The Vaico V10-2502 transmission oil pan gasket is a direct-fit sealing component for vehicles equipped with the 01V transmission. It is built to match the listed OE reference 01V321371 and supports a precise seal for service work on Audi A4, A6, Allroad Quattro, S4, A8, and Volkswagen Passat applications.

VAICO product line parts are developed as OE-style replacement components for European vehicles, with fitment and dimensions matched to the original application requirements.

Key Features

• Transmission oil pan gasket for 01V automatic transmission applications
• Part number: V10-2502
• OE reference match for 01V321371
• Dimensions: 471 mm length, 299 mm width, 12 mm height
• Lightweight gasket design at 0.040 kg
• Compatible with Audi and Volkswagen models listed below

Detailed Description

The Vaico V10-2502 transmission oil pan gasket is specified for 01V transmission service on select Audi and Volkswagen vehicles. Its listed dimensions and transmission type reference help ensure the gasket aligns with the pan sealing surface during maintenance or repair. This part number, V10-2502, cross-references OE-style application 01V321371 for the same use case.

Compatible With 2006 Audi A4 Quattro, N/A; 1996-1999 Audi A4 Quattro, N/A; 1998-2005 Audi A6 Quattro, N/A; 2001-2005 Audi Allroad Quattro, N/A; 1998-2005 Volkswagen Passat, N/A; 2000-2002 Audi S4, N/A; 1996-2001 Audi A4, N/A; 1998-2001 Audi A6, N/A; 1997-1999 Audi A4, N/A; 1999 Audi A4 Quattro, N/A; 1997-1999 Audi A8, N/A.

Common Repair Uses

• Transmission fluid seepage at the oil pan sealing surface
• Service replacement during transmission pan removal
• Maintenance on 01V-equipped Audi and Volkswagen automatic transmissions
• Restoring a proper seal after gasket wear or compression set
• Addressing leaks traced to the pan-to-transmission interface

Installation Notes and Tips

Clean the pan and transmission mating surfaces thoroughly before installation. Inspect the pan flange for distortion and verify the transmission type is 01V before ordering or installing. Confirm the OE reference 01V321371 and the vehicle application against the fitment list for your Audi A4, A6, Allroad Quattro, S4, A8, or Volkswagen Passat. The part number V10-2502 should be matched to the listed application only.

Quality Assurance

VAICO is used for OE-style replacement parts for European vehicle service, and this gasket is cataloged with direct OE reference data and dimensional specifications for application matching.
