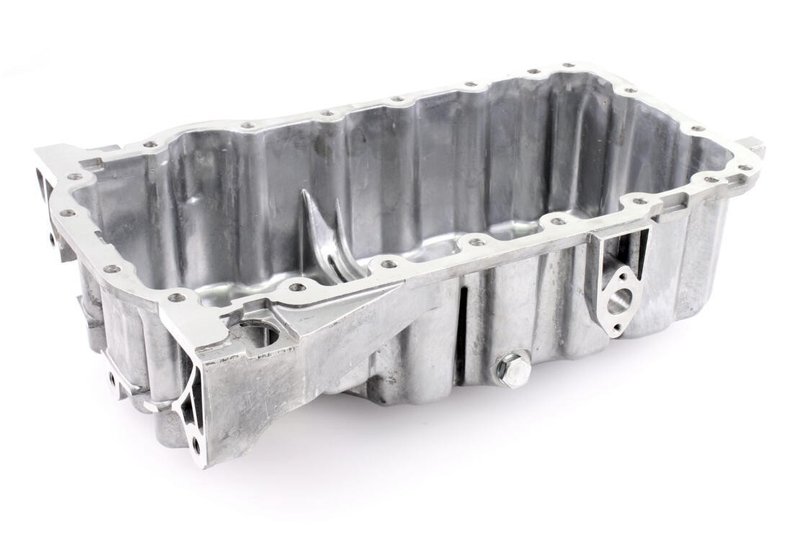

Vaico V10-2762 Engine Oil Pan

Engine Oil Pan for VW and Audi Applications

The VAICO V10-2762 engine oil pan is a lower-section aluminum replacement built for select Volkswagen and Audi turbocharged applications. It includes an oil drain plug and is supplied without an oil pan gasket, making it a direct-fit service part for oil pan replacement work.

Compatible With 2006-2014 Audi TT, TT Quattro, A3 and 2006-2013 Volkswagen GTI, Jetta, Passat, Eos, and Golf R applications listed below, this oil pan supports proper crankcase oil containment and drainage. The VAICO V10-2762 is also a practical OE-style replacement when the original pan is damaged, corroded, or leaking.

Key Features

• Aluminum wet sump construction for strength and heat resistance
• Lower section oil pan design
• Includes oil drain plug
• Supplied without oil pan gasket
• Forward-/backflow design with backflow
• Dimensions: 450 mm length, 280 mm width, 120 mm height
• VAICO V10-2762 part number for accurate ordering and fitment verification

Detailed Description

VAICO VAICO V10-2762 is an aftermarket engine oil pan made from aluminum and engineered for the lower section of the engine block assembly. Its 450 mm by 280 mm footprint and 120 mm height match the listed applications, while the included drain plug supports routine oil service. This part cross-references ATP 103408 for the same application.

Use this oil pan on select Audi TT, Audi TT Quattro, Audi A3, Volkswagen GTI, Volkswagen Jetta, Volkswagen Passat, Volkswagen Eos, and Volkswagen Golf R models where the original pan has failed or requires replacement. The VAICO V10-2762 is a fitment-specific solution for maintaining proper oil retention and service access.

What This Part Helps Address

• Oil leaks from a cracked or warped oil pan
• Damage from road debris or impact
• Corrosion or wear on an original aluminum pan
• Drain plug service issues caused by a damaged pan assembly
• Loss of proper crankcase oil containment

Installation Notes and Tips

Install with the correct oil pan gasket for the application, since this part is supplied without one. Clean the mating surfaces thoroughly before installation, inspect the drain plug sealing area, and verify fitment by part number V10-2762 before assembly. Confirm the vehicle’s engine configuration against the listed applications for Audi TT, TT Quattro, A3, and Volkswagen GTI, Jetta, Passat, Eos, and Golf R models.

Quality Assurance

VAICO supplies this engine oil pan as an aftermarket replacement built to match the listed vehicle applications and OE-style service requirements. The aluminum construction and application-specific dimensions support consistent fitment on the confirmed Audi and Volkswagen models.
