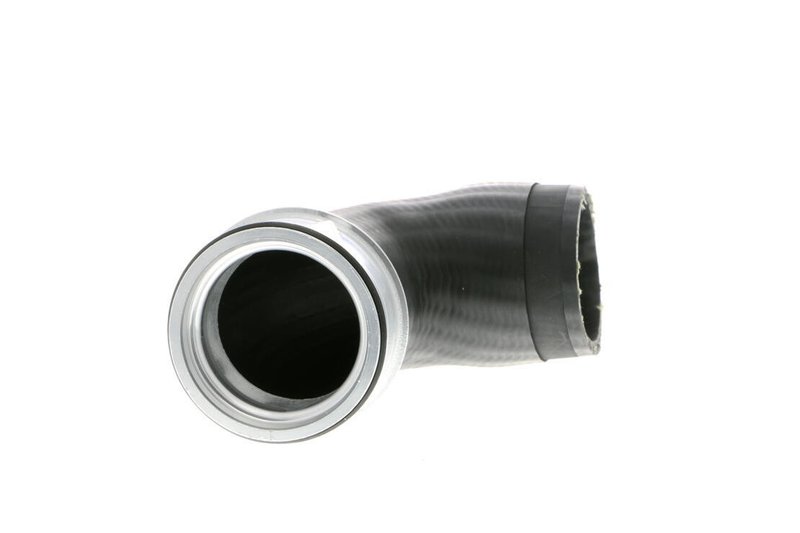

Vaico V10-2874 Intercooler Hose

Vaico Intercooler Hose for Volkswagen Jetta

The Vaico V10-2874 intercooler hose is a direct-fit replacement for select Volkswagen Jetta applications. Built from rubber with textile reinforcement and secured with a stainless steel compression ring, it is specified for the pressure and suction side connector dimensions needed in the charge-air system.

Key Features

• Part number V10-2874 for OE-style replacement selection
• Fits 2005 Volkswagen Jetta, N/A, from 1K-5-600 001
• Fits 2006 Volkswagen Jetta, N/A
• Rubber construction with textile reinforcement for charge-air routing
• Stainless steel compression ring material
• Connector diameter pressure side: 61 mm
• Connector diameter suction side: 67 mm
• Dimensions: 150 mm length, 65 mm height, 115 mm width

Detailed Description

VAICO V10-2874 is an intercooler hose for Volkswagen Jetta models listed in the fitment data, including 2005 and 2006 vehicles. The hose is built to the stated OE-style dimensions and connector sizes, with a 61 mm pressure-side connection and a 67 mm suction-side connection. Its rubber body with textile reinforcement is suited to the demands of the turbocharged charge-air path, while the stainless steel compression ring supports a secure connection at the joint. This part cross-references OE numbers 3C0 145 838 A and 3C0 145 838 D for the same application.

Common Issues This Part Can Address

• Cracked or split intercooler hose sections
• Boost leaks at the charge-air connection
• Loose or worn hose-to-pipe sealing surfaces
• Reduced turbo response caused by air loss in the intake tract
• Visible oil misting or seepage around the hose connection

Installation Notes and Tips

Verify the OE number, connector diameters, and hose dimensions before installation. Confirm the vehicle is a 2005 Volkswagen Jetta from 1K-5-600 001 or a 2006 Volkswagen Jetta listed in the fitment data. Inspect adjoining pipes, clamps, and sealing surfaces for wear or damage before transferring the new hose into place. Proper alignment at both ends is important to maintain a tight seal in the intercooler circuit.

Quality Assurance

VAICO parts are cataloged for OE-style replacement use, with application data tied to the listed Volkswagen Jetta fitments and OE references. Part number V10-2874 is specified with defined dimensions and connector sizes to support accurate parts matching.
