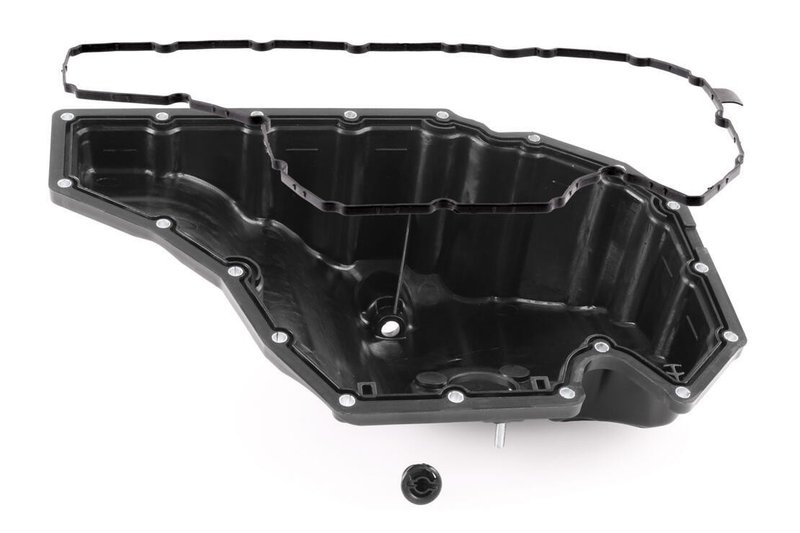

Vaico V10-3860 Engine Oil Pan - Lower

Engine Oil Pan for Audi A4, A5, A6 and Q5

The Vaico V10-3860 engine oil pan is a lower-section replacement designed for select Audi applications from 2013-2017. Built in plastic wet sump material and supplied with an oil drain plug, it supports clean oil retention and service access for the engine bottom end.

VAICO Expert Kits+ groups the needed parts into one box for a more organized repair process. This V10-3860 oil pan also includes a bore for the oil-level sensor and is specified for lower-section use on compatible Audi A4, Audi A5, Audi A6, Audi A6 Quattro, and Q5 models.

Key Features

• Brand: Vaico / VAICO
• Part number: V10-3860
• Engine oil pan for the lower section
• Plastic wet sump construction
• With oil drain plug
• With bore for oil-level sensor
• Length: 400 mm
• Width: 280 mm
• Height: 140 mm
• VAICO Expert Kits+ packaging concept

Detailed Description

The Vaico V10-3860 is an engine oil pan for the lower section of the sump assembly, engineered for select Audi vehicles that use OE reference 06L103600F. Its plastic wet sump material and integrated drain plug support routine oil service, while the sensor bore maintains the required provision for oil-level monitoring. For buyers searching for an Audi A4 oil pan replacement, Audi A5 lower oil pan, or Audi Q5 engine oil pan, this part number provides a direct fitment-focused option.

This part cross-references OE-style numbers 06L 103 598 C and 06L103600F for the same application. The VAICO Expert Kits+ line is organized to supply the needed components in one package format, helping streamline the repair order for the correct engine bottom-end service parts.

What It Helps Address

• Cracked or damaged engine oil pan housing
• Oil leaks from the lower sump section
• Missing or worn drain plug sealing point
• Oil-level sensor mounting issues at the pan
• Service replacement after impact or corrosion-related damage

Installation Notes and Tips

Confirm OE number 06L103600F and verify the lower-section configuration before installation. Check the oil-level sensor bore, drain plug location, and overall dimensions against the removed part. Clean the mating surfaces thoroughly and inspect the sealing area for debris or damage before reassembly. Fitment includes 2014 Audi A4, 2014 Audi A5, 2013-2016 Audi Q5, and 2016-2017 Audi A6 and Audi A6 Quattro in the lower position.

• Fits 2014 Audi A4, Lower
• Fits 2014 Audi A5, Lower
• Fits 2013-2016 Audi Q5, Lower
• Fits 2016-2017 Audi A6, Lower
• Fits 2016-2017 Audi A6 Quattro, Lower

Quality Assurance

VAICO parts are cataloged with OE-reference fitment data and application-specific details to support accurate replacement selection. The V10-3860 is listed with the correct lower-section configuration, drain plug provision, and oil-level sensor bore for the specified Audi applications.
