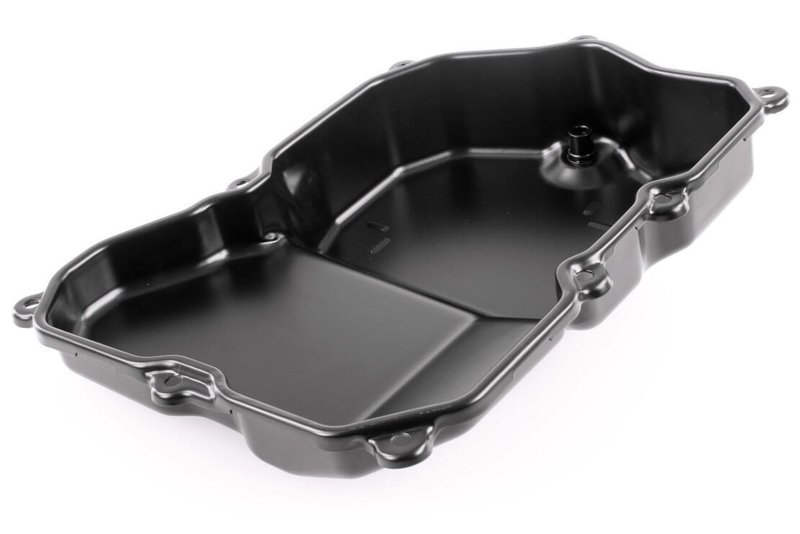

Vaico V10-4097 Transmission Oil Pan

Transmission Oil Pan for Audi and Volkswagen

The Vaico V10-4097 transmission oil pan is an aftermarket replacement for select Audi and Volkswagen models with OE number 09M321361A. Built to match the listed dimensions and application requirements, it is a direct-fit service part for transmission maintenance on vehicles such as the Audi Q3, Audi Q3 Quattro, Volkswagen Tiguan, Volkswagen CC, and Volkswagen Passat.

VAICO is the product line used by Vaico for OE-style replacement parts across European vehicle systems, including transmission hard parts. The V10-4097 follows that approach with application-specific fitment and dimensional consistency for service work on compatible 09M-equipped vehicles.

Key Features

• Transmission oil pan for select Audi and Volkswagen applications
• Part number: V10-4097
• Cross-reference: 09M 321 361 A
• Dimensions: 355 mm length, 260 mm width, 75 mm height
• Weight: 1.102 kg
• Aftermarket replacement built for OE-numbered fitment

Detailed Description

This Vaico transmission oil pan is designed for vehicles listed with OE No. 09M321361A and is used in a range of Audi and Volkswagen models from 2006 through 2018. Compatible applications include 2015-2018 Audi Q3, 2015-2018 Audi Q3 Quattro, 2009-2018 Volkswagen Tiguan, 2018 Volkswagen Tiguan Limited, 2009-2017 Volkswagen CC, 2006-2010 Volkswagen Passat, and 2009-2010 Volkswagen Passat CC. The V10-4097 provides the correct form factor for transmission service where the original pan is specified by the OE reference.

This part cross-references 09M 321 361 A for the same application.

What This Part Helps Address

• Damaged or corroded transmission oil pan
• Fluid leakage at the transmission pan area
• Service replacement for pan removal during transmission maintenance
• Fitment issues when replacing an OE-numbered 09M321361A pan
• Restoration of proper transmission housing sealing surface

Installation Notes and Tips

Confirm the OE number 09M321361A and verify vehicle application before installation. Compare the existing pan dimensions and mounting pattern to the listed 355 mm x 260 mm x 75 mm specifications. Clean the mating surface thoroughly during service and inspect the transmission area for signs of leakage or damage before reassembly.

Quality Assurance

Vaico VAICO parts are positioned as aftermarket replacements for European vehicle service applications, with fitment tied to OE-numbered references and model-specific listings. This helps ensure the part selection aligns with the intended Audi and Volkswagen transmission application.

• Fits 2015-2018 Audi Q3, N/A
• Fits 2015-2018 Audi Q3 Quattro, N/A
• Fits 2009-2018 Volkswagen Tiguan, N/A
• Fits 2018 Volkswagen Tiguan Limited, N/A
• Fits 2009-2017 Volkswagen CC, N/A
• Fits 2006-2010 Volkswagen Passat, N/A
• Fits 2009-2010 Volkswagen Passat CC, N/A
