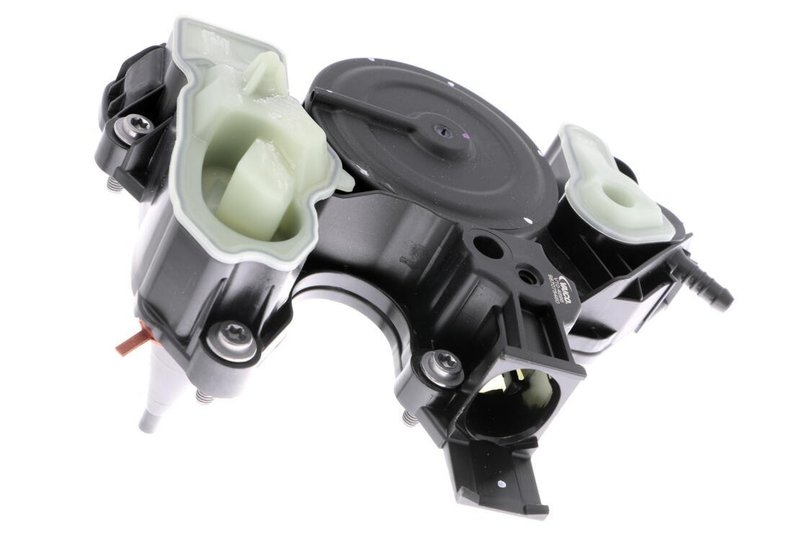

Vaico V10-4696 Engine Crankcase Vent Valve

Engine Crankcase Vent Valve for Volkswagen

The VAICO V10-4696 engine crankcase vent valve is a pressure-controlled breather valve for emission control and crankcase ventilation service. It is built with a Polyamid 6.6 housing and FPM/ACM seals for use in Volkswagen applications that require OE-style crankcase ventilation performance.

Compatible With select Volkswagen Beetle, Golf, Golf Alltrack, Golf SportWagen, GTI, Jetta, and Passat models listed below. The VAICO V10-4696 is a direct-fit service part for vehicles using OE reference 06K 103 495 AH.

• Pressure-controlled breather valve for crankcase ventilation service
• Polyamid 6.6 housing for durable underhood use
• FPM (fluoride rubber) and ACM (polyacrylate rubber) seal material
• Dimensions: 220 mm length, 170 mm width, 105 mm height
• Recommended replacement interval: 60,000 km or 3 years
• VAICO part number V10-4696 for OE-style replacement selection

Fitment Details

• Fits 2017 Volkswagen Beetle, N/A; Grade: Aftermarket; Incl. Gasket; To 05/09/2016; With OE No. 06K103495AH; VAICO
• Fits 2017 Volkswagen Golf, N/A; Grade: Aftermarket; Incl. Gasket; To 05/09/2016; With OE No. 06K103495AH; VAICO
• Fits 2017 Volkswagen Golf Alltrack, N/A; Grade: Aftermarket; Incl. Gasket; To 05/09/2016; With OE No. 06K103495AH; VAICO
• Fits 2017 Volkswagen Golf SportWagen, N/A; Grade: Aftermarket; Incl. Gasket; To 05/09/2016; With OE No. 06K103495AH; VAICO
• Fits 2015-2017 Volkswagen GTI, N/A; Grade: Aftermarket; Incl.Gasket; With OE No. 06K103495AH; VAICO
• Fits 2015-2017 Volkswagen Jetta, N/A; Grade: Aftermarket; Incl.Gasket; With OE No. 06K103495AH; VAICO
• Fits 2013 Volkswagen Jetta, N/A; Grade: Aftermarket; Incl. Gasket; From 05/13/2014; With OE No. 06K103495AH; VAICO
• Fits 2014-2017 Volkswagen Passat, N/A; Grade: Aftermarket; Incl.Gasket; With OE No. 06K103495AH; VAICO
• Fits 2015-2016 Volkswagen Beetle, N/A; Grade: Aftermarket; Incl.Gasket; With OE No. 06K103495AH; VAICO
• Fits 2013 Volkswagen Beetle, N/A; Grade: Aftermarket; Incl.Gasket; With OE No. 06K103495AH; VAICO
• Fits 2015-2016 Volkswagen Golf, N/A; Grade: Aftermarket; Incl.Gasket; With OE No. 06K103495AH; VAICO
• Fits 2015-2016 Volkswagen Golf SportWagen, N/A; Grade: Aftermarket; Incl.Gasket; With OE No. 06K103495AH; VAICO
• Fits 2014 Volkswagen Beetle, N/A; Grade: Aftermarket; Incl. Gasket; From 05/13/2014; With OE No. 06K103495AH; VAICO
• Fits 2014 Volkswagen Beetle, N/A; Grade: Aftermarket; Incl. Gasket; From 05/2014; With OE No. 06K103495AH; VAICO
• Fits 2014 Volkswagen Jetta, N/A; Grade: Aftermarket; Incl. Gasket; From 05/13/2014; With OE No. 06K103495AH; VAICO

What This Part Helps Address

• Crankcase pressure control concerns
• Breather valve wear or sticking
• Oil vapor routing issues in the ventilation system
• Emission control faults related to crankcase ventilation
• Service replacement for OE number 06K 103 495 AH applications

Installation Notes and Tips

Verify the OE reference and vehicle build date before ordering, especially on 2014 and 2017 Volkswagen applications with date-specific notes. Inspect the sealing surfaces and replace the gasket only if the application calls for it; this VAICO listing notes gasket inclusion for the referenced fitments. Confirm the valve orientation and hose connections match the original crankcase ventilation layout before final assembly.

Quality Assurance

VAICO supplies OE-style replacement components for European vehicle service, and this crankcase vent valve is specified with pressure-controlled operation, durable housing material, and application-matched seal materials for the listed Volkswagen fitments. Part number V10-4696 is also referenced as V10-4696 for catalog and search use.
