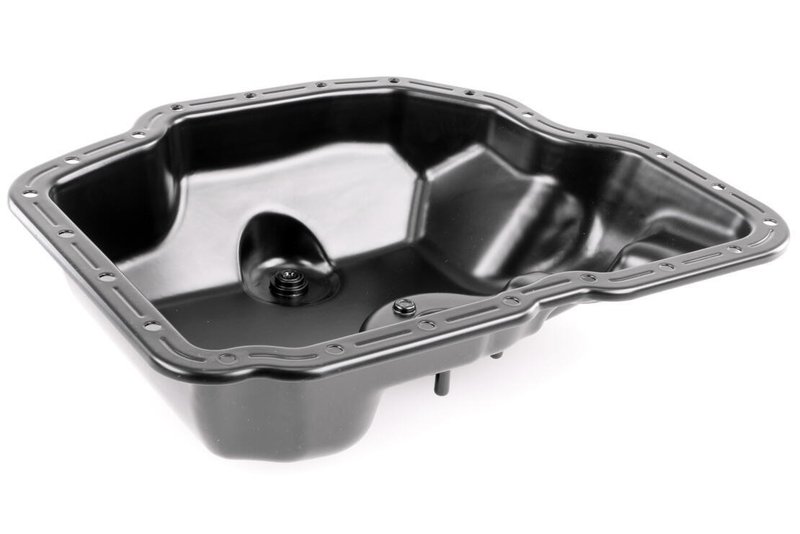

Vaico V10-4700 Engine Oil Pan - Lower

Engine Oil Pan for Audi Q7 and Volkswagen Touareg

This VAICO engine oil pan is a lower wet sump replacement for select 2009-2012 Audi Q7 and Volkswagen Touareg applications. Built from sheet steel with a powder-coated surface, it is specified with a seal ring and oil drain plug for direct service replacement needs.

Key Features

• VAICO part number V10-4700
• Engine oil pan for the lower position
• Wet sump material: sheet steel
• Powder-coated surface for added corrosion resistance
• Female hex bolt head/nut design
• Includes seal ring and oil drain plug
• Length: 385 mm; width: 310 mm; height: 110 mm
• Cross-reference: OE-style application for 059 103 602 F

Detailed Description

VAICO V10-4700 is an engine oil pan designed for lower engine block service on select Audi Q7 and Volkswagen Touareg models. It matches OE reference 059103602F and is built from sheet steel with a powder-coated finish to support durable under-engine use. The pan includes a seal ring and oil drain plug, and its dimensions are engineered for proper fitment in the specified applications. VAICO V10-4700 is a practical replacement choice when servicing the oil sump on a 2009-2012 Audi Q7 or 2009-2012 Volkswagen Touareg.

What This Part Helps Address

• Oil pan leakage from a damaged or corroded sump
• Cracked or dented lower engine oil pan housing
• Drain plug sealing issues during oil service
• Improper fitment after OE oil pan replacement
• Restoring proper oil containment on Audi Q7 and Volkswagen Touareg engines

Installation Notes and Tips

Verify OE number 059103602F and confirm lower-position fitment before installation. Inspect the mating surface, drain area, and seal ring contact points for damage or contamination before assembly. Use the recommended accessory part number V10-72-0944-1 when applicable to the repair procedure. Confirm the drain plug and sealing surfaces are clean before filling with oil.

Quality Assurance

VAICO is used for OE-style replacement parts with application-specific fitment focus. This oil pan is built to match the listed Audi Q7 and Volkswagen Touareg applications and supports service replacement based on the referenced OE number.
