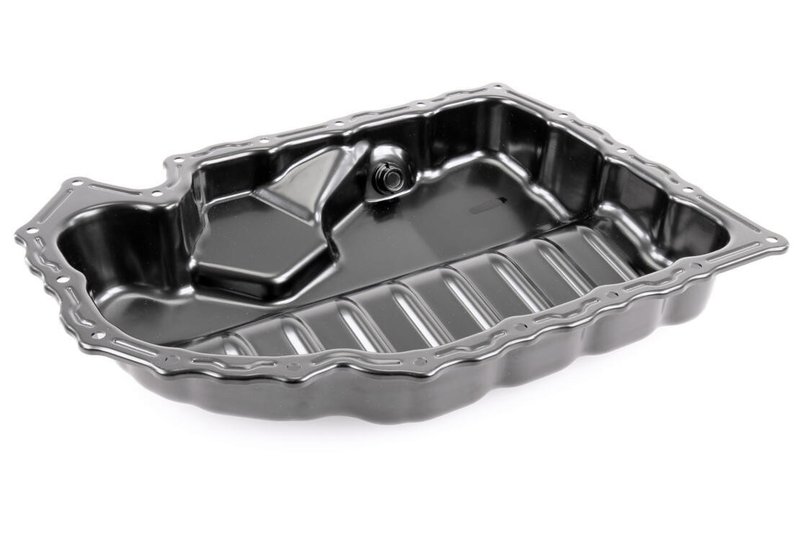

Vaico V10-4745 Engine Oil Pan - Lower

Engine Oil Pan for OE-Style Replacement

The Vaico V10-4745 engine oil pan is a lower engine component built for direct replacement on select Audi and Volkswagen applications. It is formed from sheet steel with a powder-coated surface, and it includes an oil drain plug while excluding the oil pan gasket.

Compatible With Audi Q3, Audi Q3 Quattro, Audi TT, Audi TT Quattro, Audi A3, Audi A3 Quattro, and Volkswagen CC, Eos, Tiguan, GTI, Beetle, Jetta, and Passat applications that use OE number 06J103600G. The Vaico V10-4745 is sized at 402 mm long, 297 mm wide, and 75 mm high for OE-style fitment.

Key Features

• Sheet steel wet sump construction for engine oil containment
• Powder-coated surface for added corrosion resistance
• Includes oil drain plug
• Supplied without oil pan gasket
• OE reference fitment for vehicles using OE No. 06J103600G
• Dimensions: 402 mm length, 297 mm width, 75 mm height

Detailed Description

Vaico V10-4745 is an engine oil pan for the lower engine area, engineered around OE specifications for a precise replacement on many 2008-2016 Audi and Volkswagen models. The stamped sheet steel design supports proper oil retention, while the powder-coated finish helps protect the pan surface in demanding underbody conditions. This part cross-references URO 06J103600AF for the same application.

Use this oil pan when servicing vehicles such as the Volkswagen Tiguan, Volkswagen GTI, Audi A3, or Audi TT Quattro that call for OE number 06J103600G. The part number V10-4745 is also a useful reference when verifying fitment against the original pan before installation.

What It Helps Fix

• Cracked or rusted oil pan housing
• Oil leaks from a damaged lower sump
• Stripped or worn drain plug area
• Impact damage from road debris or underbody contact
• Replacement needs during engine oil service repairs

Installation Notes and Tips

Confirm OE number 06J103600G and compare the original pan dimensions before installation. Because this part is supplied without an oil pan gasket, the gasket must be sourced separately if required for the repair. Clean the sealing surface thoroughly, inspect the drain plug threads, and verify that the lower engine area is free of debris before refilling with oil.

Quality Assurance

VAICO brand components are cataloged for OE-style replacement applications, and this oil pan is built to match the listed Audi and Volkswagen fitments for direct service use. Part number V10-4745 is specified for vehicles using the OE reference shown in the fitment data.
