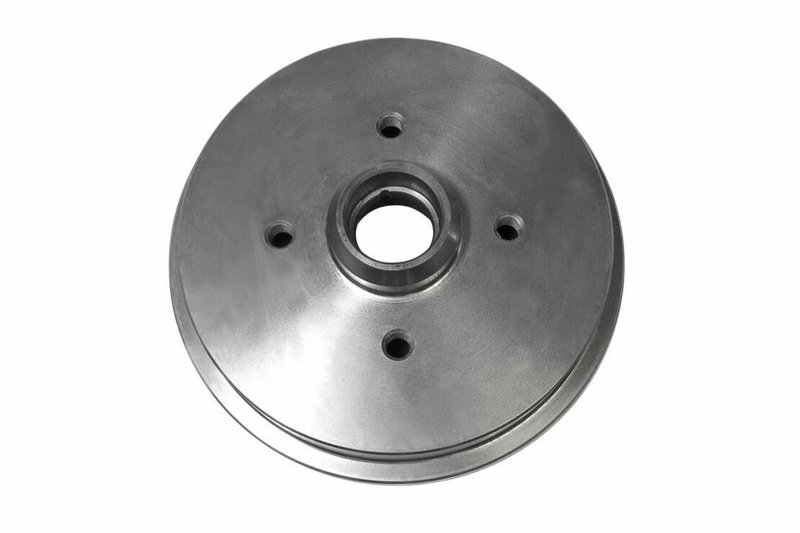

Vaico V10-60009 Brake Drum - Rear

Brake Drum for Volkswagen Rear Applications

Restore rear braking performance with this VAICO brake drum, part number V10-60009. It is built for select Volkswagen Cabriolet and Volkswagen Fox rear applications from 1990-1993, with an 180.0 mm drum diameter and 4-bolt mounting pattern.

Key Features

• Brake drum for rear axle applications
• Drum diameter: 180.0 mm
• Outer diameter: 212 mm
• Bolt hole circle diameter: 100 mm
• 4-hole design with M12 x 1.5 thread size
• Height: 74.5 mm; inner brake drum height: 38.5 mm
• Supplementary article info: without wheel bearing
• VAICO part number V10-60009

Detailed Description

The VAICO V10-60009 brake drum is a rear brake service part engineered around the listed dimensions for accurate replacement on Volkswagen Cabriolet and Volkswagen Fox models. With a 180.0 mm drum diameter, 212 mm outer diameter, and 74.5 mm total height, it supports proper brake shoe contact and drum fitment for the specified rear applications. This part cross-references Raybestos Brakes (e.g., 9107R) for the same application.

VAICO brake components are identified by precise dimensional specifications, which helps match the drum to the correct rear brake setup. The V10-60009 is listed without a wheel bearing and uses a 4-hole, 100 mm bolt circle configuration with M12 x 1.5 threads. For shoppers searching for a rear brake drum for 1990-1993 Volkswagen Cabriolet or 1990-1993 Volkswagen Fox, this part number provides a direct reference point.

What It Helps Address

• Rear brake pulsation caused by worn or out-of-round drum surfaces
• Reduced braking consistency from excessive drum wear
• Noise from brake shoes contacting a damaged drum
• Service needs after rear brake shoe replacement
• Fitment issues when replacing a drum with the correct 180 mm specification

Installation Notes and Tips

Verify drum diameter, bolt pattern, and height against the existing part before installation. Confirm rear axle application only, and check that the vehicle uses the listed 180.0 mm drum size and 4-hole pattern. Inspect brake shoes, hardware, and the backing plate for wear or damage before installing the new drum. Proper cleaning of the hub and mating surfaces helps support accurate seating and brake operation.

Quality Assurance

This VAICO brake drum is cataloged with detailed dimensional data to support accurate parts matching for Volkswagen rear brake service. Part number V10-60009 is listed for 1990-1993 Volkswagen Cabriolet and 1990-1993 Volkswagen Fox rear applications.
