Home› Body > Hatch› Vaico V10-7534 Hatch Lift Support - Right
Vaico V10-7534 Hatch Lift Support - RightOE Quality 60-Day Returns
Part #: V10-7534

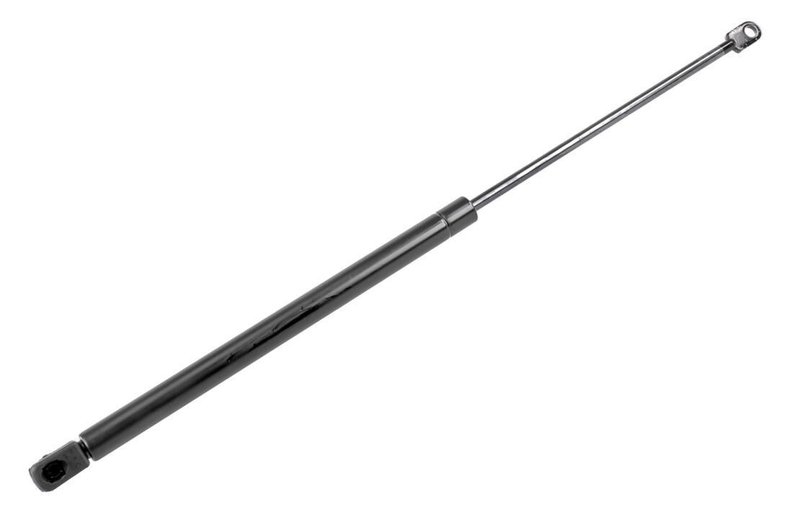

Vaico V10-7534 Hatch Lift Support - Right

VAICO, Right
9 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$62.75Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
VAICO, Right
Fitment: Volkswagen, Vanagon
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Hatch Lift Support options

Vaico V10-7534 for Volkswagen Vanagon

Vaico V10-7534 is an OE-style gas spring with a 300 N eject force, 197 mm stroke, and 511.5 mm length. It is built for right-side use on the 1990-1991 Volkswagen Vanagon and supports controlled lift and hold performance where a compact, high-force strut is required.

Key Features

  • Part number V10-7534 for direct catalog identification
  • 300 N eject force for consistent opening support
  • 197 mm stroke for measured extension travel
  • 511.5 mm overall length with 20 mm height
  • 8 mm width and 8 mm outer diameter at one end
  • 20 mm outer diameter at the opposite end
  • Fits 1990-1991 Volkswagen Vanagon, right

Product Details

VAICO product line components are selected for European vehicle service applications where dimensional accuracy matters. This gas spring is specified with an 8 mm shaft width, 20 mm body diameter, and compact packaging dimensions that reflect its application-focused design. For Volkswagen Vanagon service, V10-7534 provides the measured force and travel needed for right-side installation on the listed model years.

This part cross-references Standard Ignition 27660 for the same application.

Common Repair Uses

  • Restoring controlled lift on a right-side support point
  • Replacing a weak or failed gas spring that no longer holds position
  • Correcting slow, uneven, or abrupt movement during opening and closing
  • Addressing sagging support on a 1990-1991 Volkswagen Vanagon

Installation Notes

Verify the mounting end diameters, overall length, and stroke before installation. Confirm right-side placement on the 1990-1991 Volkswagen Vanagon and compare the removed part to V10-7534 to ensure the same force rating and dimensions. Clean the mounting points and inspect related brackets or pivots for wear before final assembly.

Quality Assurance

Vaico parts are cataloged for OE-style replacement use, with application-specific dimensions and force ratings listed for accurate fitment selection. V10-7534 is identified for the 1990-1991 Volkswagen Vanagon, right-side application.

BrandVaico
Part NumberV10-7534
PositionVAICO, Right
Eject Force [N]300
Height [mm]20
Length [mm]511.5
Outer diameter 1 [mm]8
Outer diameter 2 [mm]20
Packaging height [cm]17,1
Packaging width [cm]15,7
Stroke [mm]197
Weight [kg]0.338
Width [mm]8

This part fits 9 vehicles. Search below:

YearMakeModelSubmodelPositionNotes
1991VolkswagenVanagonSyncroRightCompatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO
1991VolkswagenVanagonGLRightCompatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO
1991VolkswagenVanagonCaratRightCompatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO
1991VolkswagenVanagonCampmobileRightCompatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO
1991VolkswagenVanagonBaseRightCompatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO
1990VolkswagenVanagonGLRightCompatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO
1990VolkswagenVanagonCaratRightCompatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO
1990VolkswagenVanagonCampmobileRightCompatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO
1990VolkswagenVanagonBaseRightCompatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

128865251 829 33227660291927309276604634871029149188295659593AG40033BGS10524

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
