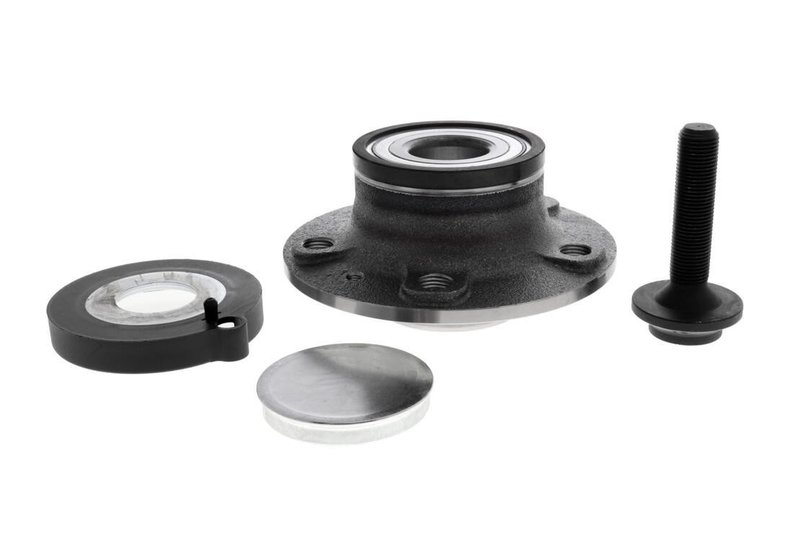

Vaico V10-9876 Wheel Bearing and Hub Assembly - Rear
| Brand | Vaico V10-9876 |
|---|---|
| Position | Rear |
| Bearing Type | Angular Ball Bearing |
| Bolt Hole Circle Diameter [mm] | 112 |
| Braking / Drive Dynamics | for vehicles with ABS |
| Height [mm] | 70 |
| Inner diameter 1 [mm] | 32 |
| Length [mm] | 142 |
| Number of Holes | 5 |
| Outer diameter 1 [mm] | 142 |
| Packaging height [cm] | 20 |
| Packaging width [cm] | 11,5 |
| Thickness [mm] | 69 |
| Weight [kg] | 2.110 |
| Width [mm] | 140 |
| Product line | VAICO |
| Fits | Audi · 27 vehicles |
Angular ball bearing. Provides smooth, stable wheel support under load.
ABS-compatible design. Works with vehicles equipped with ABS.
Hub assembly. Combines bearing and hub in one kit for easier service.
Cross-references Anchor 301089, Schaeffler 102302 and SKF 36650 for the same application. See all 23.
Rear Wheel Bearing and Hub Assembly for Audi
Vaico V10-9876 is a rear wheel bearing and hub assembly built for vehicles with ABS. It is specified for Audi A4, Audi A5, and Audi A6 rear applications that match OE reference 8K0598611A, making it a direct-fit service part for common driveline and axle repairs.
Key Features
- Angular ball bearing design for rear hub service
- For vehicles with ABS
- Bolt hole circle diameter: 112 mm
- 5-hole mounting pattern
- Inner diameter: 32 mm
- Outer diameter: 142 mm
- Height: 70 mm
- Length: 142 mm
- Width: 140 mm
- Thickness: 69 mm
- Quantity unit: kit
Detailed Description
VAICO focuses on OE-style replacement parts for European driveline and chassis systems, and the VAICO line is commonly selected for service work where dimensional accuracy matters. Vaico V10-9876 is a rear wheel bearing and hub assembly with an angular ball bearing construction, sized to match the listed hub dimensions and ABS-equipped rear axle applications. This part cross-references SKF (e.g., BR930877) for the same application.
Compatible With 2009-2016 Audi A4, rear; 2010-2014 Audi A5, rear; and 2012-2017 Audi A6, rear. Use the OE number 8K0598611A and the vehicle’s ABS configuration to confirm the correct rear hub assembly before ordering. The Vaico V10-9876 part number is also useful when searching for an OE-style replacement for these Audi rear wheel bearing and hub applications.
What This Part Helps Address
- Rear wheel bearing noise such as humming or growling
- Excessive wheel play or looseness at the hub
- ABS-related wheel speed signal issues tied to hub wear
- Uneven rolling resistance from a worn bearing assembly
- Hub replacement needs after mileage-related wear
Installation Notes and Tips
Confirm rear axle fitment by matching the OE number, bolt pattern, bearing dimensions, and ABS requirement before installation. Inspect the mating surfaces, hub flange, and surrounding suspension components for wear or damage during service. Proper torque procedures and clean mounting surfaces are important for accurate bearing seating and ABS system performance.
Quality Assurance
Vaico V10-9876 is an OE-style replacement part from VAICO, built for the listed Audi rear applications and dimensional requirements. Verify all vehicle details against the fitment data and OE reference 8K0598611A before installation.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2017 | Audi | A6 | Premium | — | — | Rear | Grade: Aftermarket; Description: For vehicles with ABS; With OE No. 8K0598611A; VAICO |
| 2017 | Audi | A6 | Premium Plus | — | — | Rear | Grade: Aftermarket; Description: For vehicles with ABS; With OE No. 8K0598611A; VAICO |
| 2016 | Audi | A4 | — | 2.0L | L4 | Rear | Grade: Aftermarket; Description: For vehicles with ABS; With OE No. 8K0598611A; VAICO |
| 2016 | Audi | A6 | Premium | — | — | Rear | Grade: Aftermarket; Description: For vehicles with ABS; With OE No. 8K0598611A; VAICO |
| 2016 | Audi | A6 | Premium Plus | — | — | Rear | Grade: Aftermarket; Description: For vehicles with ABS; With OE No. 8K0598611A; VAICO |
| 2015 | Audi | A4 | Prestige | — | — | Rear | Grade: Aftermarket; Description: For vehicles with ABS; With OE No. 8K0598611A; VAICO |
| 2015 | Audi | A4 | Premium | — | — | Rear | Grade: Aftermarket; Description: For vehicles with ABS; With OE No. 8K0598611A; VAICO |
| 2015 | Audi | A4 | Premium Plus | — | — | Rear | Grade: Aftermarket; Description: For vehicles with ABS; With OE No. 8K0598611A; VAICO |
| 2015 | Audi | A6 | Premium | — | — | Rear | Grade: Aftermarket; Description: For vehicles with ABS; With OE No. 8K0598611A; VAICO |
| 2015 | Audi | A6 | Premium Plus | — | — | Rear | Grade: Aftermarket; Description: For vehicles with ABS; With OE No. 8K0598611A; VAICO |
| 2014 | Audi | A4 | Base | 2.0L | L4 | Rear | Grade: Aftermarket; Description: For vehicles with ABS; With OE No. 8K0598611A; VAICO |
| 2014 | Audi | A5 | Cabriolet | — | — | Rear | Grade: Aftermarket; Description: For vehicles with ABS; With OE No. 8K0598611A; VAICO |
| 2014 | Audi | A6 | Premium | — | — | Rear | Grade: Aftermarket; Description: For vehicles with ABS; With OE No. 8K0598611A; VAICO |
| 2014 | Audi | A6 | Premium Plus | — | — | Rear | Grade: Aftermarket; Description: For vehicles with ABS; With OE No. 8K0598611A; VAICO |
| 2013 | Audi | A4 | Base | 2.0L | L4 | Rear | Grade: Aftermarket; Description: For vehicles with ABS; With OE No. 8K0598611A; VAICO |
| 2013 | Audi | A5 | Cabriolet | — | — | Rear | Grade: Aftermarket; Description: For vehicles with ABS; With OE No. 8K0598611A; VAICO |
| 2013 | Audi | A6 | Premium | — | — | Rear | Grade: Aftermarket; Description: For vehicles with ABS; With OE No. 8K0598611A; VAICO |
| 2013 | Audi | A6 | Premium Plus | — | — | Rear | Grade: Aftermarket; Description: For vehicles with ABS; With OE No. 8K0598611A; VAICO |
| 2012 | Audi | A4 | Base | — | — | Rear | Grade: Aftermarket; Description: For vehicles with ABS; With OE No. 8K0598611A; VAICO |
| 2012 | Audi | A5 | Cabriolet | — | — | Rear | Grade: Aftermarket; Description: For vehicles with ABS; With OE No. 8K0598611A; VAICO |
| 2012 | Audi | A6 | Premium | — | — | Rear | Grade: Aftermarket; Description: For vehicles with ABS; With OE No. 8K0598611A; VAICO |
| 2012 | Audi | A6 | Premium Plus | — | — | Rear | Grade: Aftermarket; Description: For vehicles with ABS; With OE No. 8K0598611A; VAICO |
| 2011 | Audi | A4 | Base | — | — | Rear | Grade: Aftermarket; Description: For vehicles with ABS; With OE No. 8K0598611A; VAICO |
| 2011 | Audi | A5 | Cabriolet | — | — | Rear | Grade: Aftermarket; Description: For vehicles with ABS; With OE No. 8K0598611A; VAICO |
| 2010 | Audi | A4 | Base | — | — | Rear | Grade: Aftermarket; Description: For vehicles with ABS; With OE No. 8K0598611A; VAICO |
| 2010 | Audi | A5 | Cabriolet | — | — | Rear | Grade: Aftermarket; Description: For vehicles with ABS; With OE No. 8K0598611A; VAICO |
| 2009 | Audi | A4 | Base | — | — | Rear | Grade: Aftermarket; Description: For vehicles with ABS; With OE No. 8K0598611A; VAICO |
