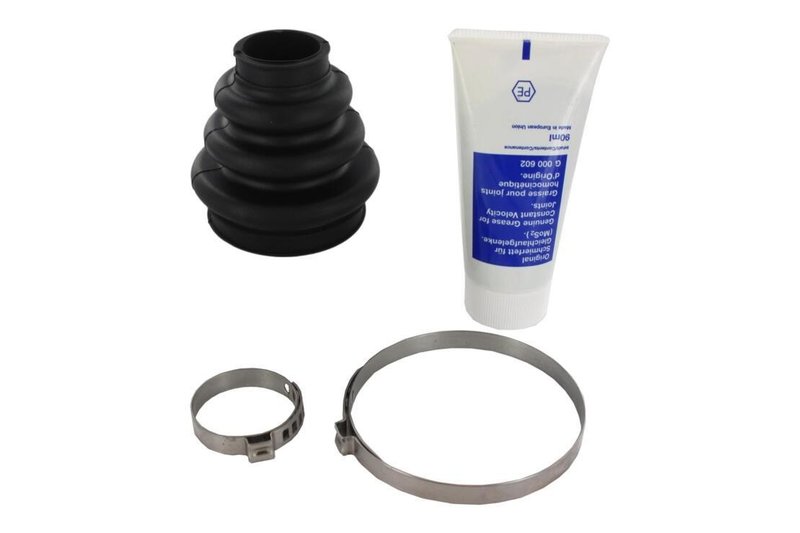

Vaico V20-0754 CV Joint Boot Kit

Vaico V20-0754 CV Joint Boot Kit

The Vaico V20-0754 CV joint boot kit is an aftermarket wheel-side boot solution for rear driveline service on select BMW applications. It is built around key dimensional specs that matter during axle repair: 140 mm height, 76 mm length, 30 mm width, 31 mm inner diameter, and 51 mm inner diameter at the larger end.

VAICO product line parts are developed for European vehicle service needs, with application-specific coverage for rear outer and rear inner positions where listed. This part number, V20-0754, is used across a wide range of BMW rear axle applications, including BMW 328i, BMW 335i, and BMW Z4 fitments.

Key Features

• CV joint boot kit for wheel-side rear axle service
• Dimensions: 140 mm height, 76 mm length, 30 mm width
• Inner diameters: 31 mm and 51 mm
• Lightweight design at 0.201 kg
• Fits rear outer and rear inner positions where listed
• Cross-references Four Seasons 37136 for the same application
• Part number V20-0754 for catalog lookup and fitment verification

Detailed Description

Use the Vaico V20-0754 when servicing a worn or damaged CV boot on the wheel side of the rear driveline. A torn boot can expose the CV joint to contamination and grease loss, so replacing the boot during axle maintenance helps restore the protective seal around the joint. This BMW CV boot kit is listed for many rear outer and rear inner applications, including Fits 2007-2013 BMW 328i, rear left outer and rear right outer, Fits 2009-2013 BMW 328i xDrive, rear left outer and rear right outer, and Fits 2003-2011 BMW Z4, rear left outer and rear right outer.

Additional coverage includes Fits 2007-2010 BMW 335i, rear left outer and rear right outer, Fits 2008-2010 BMW 528i, rear left inner and rear right inner, and Fits 2012-2016 BMW Z4, rear outer. The V20-0754 part number also appears in interchange listings for OE-style reference matching during parts lookup.

What It Helps Fix

• Split or cracked CV boot material
• Grease leakage at the rear axle joint
• Road debris intrusion into the CV joint area
• Noise caused by a contaminated or dry joint
• Inspection failures related to damaged axle boots

Installation Notes and Tips

Confirm the axle position before ordering, since this listing covers rear outer, rear right outer, rear left outer, rear right inner, and rear left inner applications depending on vehicle. Match the boot dimensions to the joint and shaft before installation, and inspect the CV joint for wear or contamination before reassembly. For BMW 525i, 525xi, 530i, and 530xi applications, review the notes carefully because some fitments are tied to production dates and wheel-side location.

Quality Assurance

Vaico supplies aftermarket replacement parts for European vehicle service, and this CV joint boot kit is cataloged with detailed dimensional and fitment data to support accurate selection. Verify the part number V20-0754 against the vehicle’s rear axle position and production details before installation.
