Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

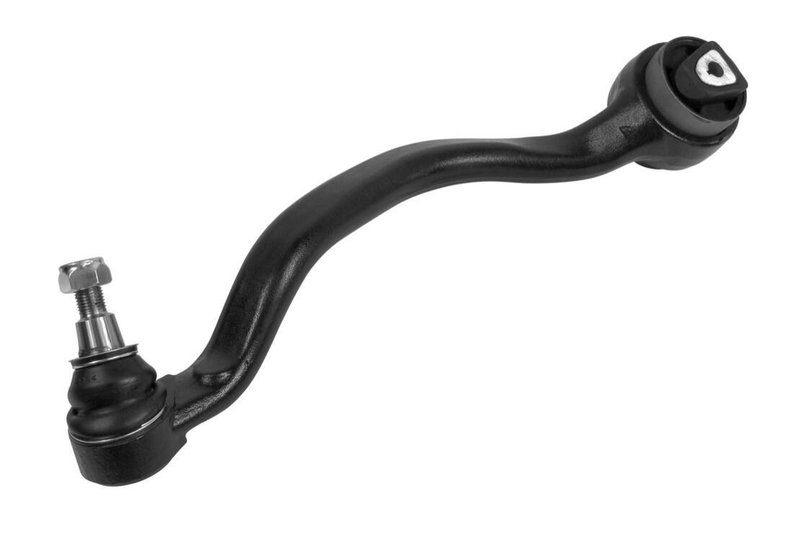

Vaico V20-1171 Suspension Control Arm - Front Left Lower Forward
| Brand | Vaico V20-1171 |
|---|---|
| Position | Front Left Lower Forward |
| Height [mm] | 103 |
| Inner diameter [mm] | 12 |
| Length [mm] | 473 |
| Material | Cast Steel |
| Packaging Depth [cm] | 50 |
| Packaging height [cm] | 10,5 |
| Packaging width [cm] | 14 |
| Paired article numbers | V20-1172 |
| Part number of the recommended special tools | V99-1020 |
| Steering arm type | Control Arm |
| Supplementary Article/Info 2 | with rubber mounting |
| Thread Size | M14x1,5 |
| Weight [kg] | 4.458 |
| Width [mm] | 187 |
| for OE number | 31 12 6 773 949 |
| Product line | VAICO |
| Fits | BMW · 46 vehicles |
OE direct replacement. Matches the original part number for straightforward replacement.
Cast steel construction. Delivers strength and rigidity for dependable suspension control.
With rubber mounting. Helps isolate vibration for smoother operation.
Cross-references MOOG Chassis Products RK620798, MOOG Chassis Products RK620799 and 6 773 949 for the same application. See all 12.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
BMW X5/X6 Front Left Lower Forward Control Arm
Restore front suspension geometry with this VAICO suspension control arm for the BMW X5 and BMW X6. Built from cast steel with a rubber mounting and OE reference 31 12 6 773 949, this front left lower forward arm is specified for precise replacement on select 2007-2015 models.
Key Features
- OE reference: 31 12 6 773 949
- Cast steel construction for strength and load support
- Includes rubber mounting
- Thread size: M14x1,5
- Length: 473 mm; width: 187 mm; height: 103 mm
- Inner diameter: 12 mm
- VAICO part number V20-1171
Product Details
VAICO VAICO V20-1171 is a suspension control arm for the front left lower forward position on BMW X5 and BMW X6 applications. It is built to match the OE number 31 12 6 773 949 and uses cast steel construction for structural rigidity. The arm includes a rubber mounting and is listed with paired article number V20-1172 for the opposite-side application. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
For BMW X5 and BMW X6 front suspension service, this control arm supports accurate wheel location and consistent suspension movement. The V20-1171 part number is also useful when searching for a direct-fit BMW X5 front left lower forward control arm or BMW X6 front left lower forward suspension arm replacement.
Common Issues This Part Addresses
- Excessive front-end looseness or wandering
- Clunking or knocking from the front suspension
- Uneven tire wear caused by worn arm bushings or joint wear
- Steering pull related to worn suspension geometry
- Restoring proper alignment after control arm wear
Installation Notes
Fits 2007-2010 BMW X5, Front Left Lower Forward. Fits 2008-2010 BMW X6, Front Left Lower Forward. Fits 2011-2015 BMW X5, Front Left Lower Forward. Fits 2011-2015 BMW X6, Front Left Lower Forward. Confirm OE number 31 12 6 773 949 before installation and verify the paired side if replacing both sides. The recommended special tool part number is V99-1020. Professional alignment is required after suspension arm replacement.
Quality Assurance
VAICO supplies OE-referenced suspension components built to match specified dimensions and mounting points for BMW X5 and BMW X6 service applications. Part number V20-1171 is cataloged with defined fitment, material, and dimensional data to support accurate replacement selection.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2015 | BMW | X5 | xDrive50i | 4.4L | V8 | Front Left Lower Forward | Grade: Aftermarket with included Ball Joint and Bushing; VAICO |
| 2015 | BMW | X5 | — | 3.0L | L6 | Front Left Lower Forward | Grade: Aftermarket with included Ball Joint and Bushing; VAICO |
| 2015 | BMW | X5 | xDrive35i | 3.0L | L6 | Front Left Lower Forward | Grade: Aftermarket with included Ball Joint and Bushing; VAICO |
| 2015 | BMW | X6 | xDrive50i | 4.4L | V8 | Front Left Lower Forward | Grade: Aftermarket with included Ball Joint and Bushing; VAICO |
| 2015 | BMW | X6 | xDrive35i | 3.0L | L6 | Front Left Lower Forward | Grade: Aftermarket with included Ball Joint and Bushing; VAICO |
| 2014 | BMW | X5 | — | 4.4L | V8 | Front Left Lower Forward | Grade: Aftermarket with included Ball Joint and Bushing; VAICO |
| 2014 | BMW | X5 | — | 3.0L | L6 | Front Left Lower Forward | Grade: Aftermarket with included Ball Joint and Bushing; VAICO |
| 2014 | BMW | X5 | xDrive35i | 3.0L | L6 | Front Left Lower Forward | Grade: Aftermarket with included Ball Joint and Bushing; VAICO |
| 2014 | BMW | X6 | xDrive50i | 4.4L | V8 | Front Left Lower Forward | Grade: Aftermarket with included Ball Joint and Bushing; VAICO |
| 2014 | BMW | X6 | — | 3.0L | L6 | Front Left Lower Forward | Grade: Aftermarket with included Ball Joint and Bushing; VAICO |
| 2013 | BMW | X5 | xDrive50i | 4.4L | V8 | Front Left Lower Forward | Grade: Aftermarket with included Ball Joint and Bushing; VAICO |
| 2013 | BMW | X5 | — | 3.0L | L6 | Front Left Lower Forward | Grade: Aftermarket with included Ball Joint and Bushing; VAICO |
| 2013 | BMW | X5 | xDrive35i | 3.0L | L6 | Front Left Lower Forward | Grade: Aftermarket with included Ball Joint and Bushing; VAICO |
| 2013 | BMW | X6 | xDrive50i | 4.4L | V8 | Front Left Lower Forward | Grade: Aftermarket with included Ball Joint and Bushing; VAICO |
| 2013 | BMW | X6 | xDrive35i | 3.0L | L6 | Front Left Lower Forward | Grade: Aftermarket with included Ball Joint and Bushing; VAICO |
| 2012 | BMW | X5 | xDrive50i | 4.4L | V8 | Front Left Lower Forward | Grade: Aftermarket with included Ball Joint and Bushing; VAICO |
| 2012 | BMW | X5 | — | 3.0L | L6 | Front Left Lower Forward | Grade: Aftermarket with included Ball Joint and Bushing; VAICO |
| 2012 | BMW | X5 | xDrive35i | 3.0L | L6 | Front Left Lower Forward | Grade: Aftermarket with included Ball Joint and Bushing; VAICO |
| 2012 | BMW | X6 | xDrive50i | 4.4L | V8 | Front Left Lower Forward | Grade: Aftermarket with included Ball Joint and Bushing; VAICO |
| 2012 | BMW | X6 | xDrive35i | 3.0L | L6 | Front Left Lower Forward | Grade: Aftermarket with included Ball Joint and Bushing; VAICO |
| 2011 | BMW | X5 | xDrive50i | 4.4L | V8 | Front Left Lower Forward | Grade: Aftermarket with included Ball Joint and Bushing; VAICO |
| 2011 | BMW | X5 | — | 3.0L | L6 | Front Left Lower Forward | Grade: Aftermarket with included Ball Joint and Bushing; VAICO |
| 2011 | BMW | X5 | xDrive35i | 3.0L | L6 | Front Left Lower Forward | Grade: Aftermarket with included Ball Joint and Bushing; VAICO |
| 2011 | BMW | X6 | xDrive50i | 4.4L | V8 | Front Left Lower Forward | Grade: Aftermarket with included Ball Joint and Bushing; VAICO |
| 2011 | BMW | X6 | ActiveHybrid | 4.4L | V8 | Front Left Lower Forward | Grade: Aftermarket with included Ball Joint and Bushing; VAICO |
| 2011 | BMW | X6 | xDrive35i | 3.0L | L6 | Front Left Lower Forward | Grade: Aftermarket with included Ball Joint and Bushing; VAICO |
| 2010 | BMW | X5 | — | 4.8L | V8 | Front Left Lower Forward | Suspension control arm with pre-installed ball joint and bushings for simplified installation.; VAICO |
| 2010 | BMW | X5 | — | 4.8L | V8 | Front Left Lower Forward | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2010 | BMW | X5 | xDrive30i | 3.0L | L6 | Front Left Lower Forward | Suspension control arm with pre-installed ball joint and bushings for simplified installation.; VAICO |
| 2010 | BMW | X5 | — | 3.0L | L6 | Front Left Lower Forward | Suspension control arm with pre-installed ball joint and bushings for simplified installation.; VAICO |
| 2010 | BMW | X6 | xDrive50i | 4.4L | V8 | Front Left Lower Forward | Suspension control arm with pre-installed ball joint and bushings for simplified installation.; VAICO |
| 2010 | BMW | X6 | ActiveHybrid | 4.4L | V8 | Front Left Lower Forward | Suspension control arm with pre-installed ball joint and bushings for simplified installation.; VAICO |
| 2010 | BMW | X6 | xDrive35i | 3.0L | L6 | Front Left Lower Forward | Suspension control arm with pre-installed ball joint and bushings for simplified installation.; VAICO |
| 2009 | BMW | X5 | — | 4.8L | V8 | Front Left Lower Forward | Suspension control arm with pre-installed ball joint and bushings for simplified installation.; VAICO |
| 2009 | BMW | X5 | — | 4.8L | V8 | Front Left Lower Forward | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2009 | BMW | X5 | xDrive30i | 3.0L | L6 | Front Left Lower Forward | Suspension control arm with pre-installed ball joint and bushings for simplified installation.; VAICO |
| 2009 | BMW | X5 | — | 3.0L | L6 | Front Left Lower Forward | Suspension control arm with pre-installed ball joint and bushings for simplified installation.; VAICO |
| 2009 | BMW | X6 | xDrive50i | 4.4L | V8 | Front Left Lower Forward | Suspension control arm with pre-installed ball joint and bushings for simplified installation.; VAICO |
| 2009 | BMW | X6 | xDrive35i | 3.0L | L6 | Front Left Lower Forward | Suspension control arm with pre-installed ball joint and bushings for simplified installation.; VAICO |
| 2008 | BMW | X5 | — | 4.8L | V8 | Front Left Lower Forward | Suspension control arm with pre-installed ball joint and bushings for simplified installation.; VAICO |
| 2008 | BMW | X5 | — | 4.8L | V8 | Front Left Lower Forward | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2008 | BMW | X5 | — | 3.0L | L6 | Front Left Lower Forward | Suspension control arm with pre-installed ball joint and bushings for simplified installation.; VAICO |
| 2008 | BMW | X6 | — | 4.4L | V8 | Front Left Lower Forward | Suspension control arm with pre-installed ball joint and bushings for simplified installation.; VAICO |
| 2008 | BMW | X6 | — | 3.0L | L6 | Front Left Lower Forward | Suspension control arm with pre-installed ball joint and bushings for simplified installation.; VAICO |
| 2007 | BMW | X5 | — | 4.8L | V8 | Front Left Lower Forward | Suspension control arm with pre-installed ball joint and bushings for simplified installation.; VAICO |
| 2007 | BMW | X5 | — | 3.0L | L6 | Front Left Lower Forward | Suspension control arm with pre-installed ball joint and bushings for simplified installation.; VAICO |
