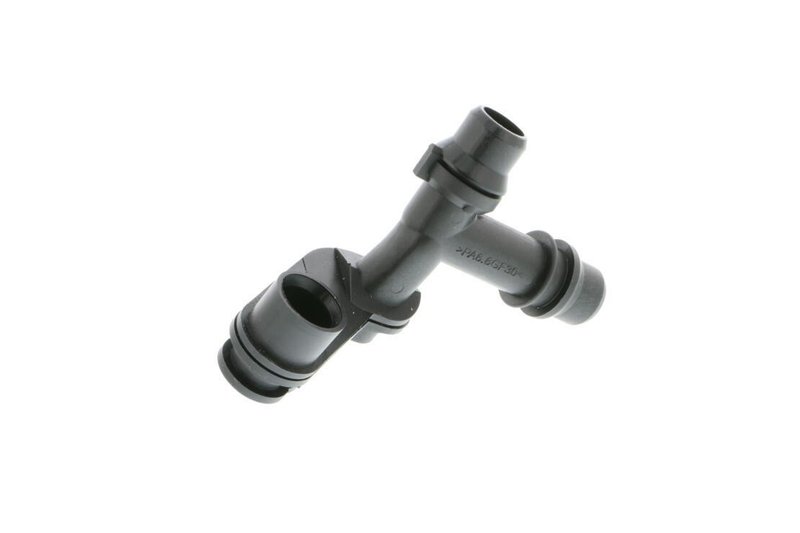

Vaico V20-1367 Engine Coolant Outlet Flange

Engine Coolant Outlet Flange for BMW Cooling Systems

Vaico V20-1367 is an engine coolant outlet flange for BMW cooling system service. It routes the cooling hose from the expansion tank to the engine cooler and is sized for a precise OE-style replacement on select BMW 3 Series applications.

Key Features

• Engine coolant outlet flange for cooling system repair
• Cooling hose connection from expansion tank to engine cooler
• Dimensions: 120 mm length, 110 mm width, 105 mm height
• Lightweight construction at 0.119 kg
• VAICO brand line replacement part, part number V20-1367
• Cross-references Febi-Bilstein 46999 for the same application

Product Details

VAICO V20-1367 is built for BMW cooling system service where the coolant outlet flange connects the expansion tank circuit to the engine cooler. The listed dimensions help confirm fitment during replacement work, especially when matching the flange to the original cooling hose routing and surrounding engine bay components. This part number, V20-1367, is used on select BMW 323Ci, 323i, 325Ci, 325i, 325xi, 328Ci, 328i, 330Ci, 330i, 330xi, and 320i applications across model years 2000 through 2006.

VAICO is the brand line used for OE-style replacement components, and this coolant flange follows that approach with application-specific sizing and cooling-system orientation. For BMW 325i coolant flange replacement, BMW 330i engine coolant outlet flange service, or BMW 323i cooling hose outlet repair, V20-1367 provides a direct-fit service part for the listed vehicles.

Common Issues This Part Addresses

• Cracked or leaking coolant outlet flange
• Coolant loss at the expansion tank to engine cooler connection
• Damaged hose interface at the cooling system outlet
• Cooling system service on aging BMW E46-era vehicles
• Replacement of a worn BMW coolant flange during leak diagnosis

Installation Notes and Tips

Confirm the existing flange dimensions and hose routing before installation. Inspect the mating surfaces, hose condition, and adjacent cooling system components for wear or residue before reassembly. Because this part is part of the engine cooling circuit, refill and bleed the system according to BMW service procedures after installation. Verify the application against the vehicle’s model year and engine configuration before ordering.

Quality Assurance

VAICO V20-1367 is an aftermarket replacement part built for the listed BMW applications and cross-references Febi-Bilstein 46999 for the same use case. Fitment is confirmed for select BMW 323Ci, 323i, 325Ci, 325i, 325xi, 328Ci, 328i, 330Ci, 330i, 330xi, and 320i models from 2000-2006.
