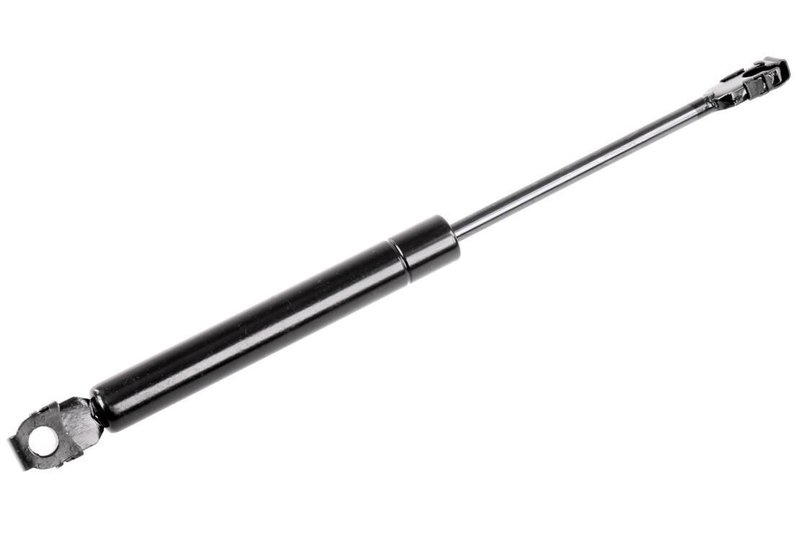

Vaico V20-2013 Hood Lift Support
| Brand | Vaico V20-2013 |
|---|---|
| Eject Force [N] | 380 |
| Height [mm] | 18 |
| Length [mm] | 255 |
| Outer diameter 1 [mm] | 8 |
| Outer diameter 2 [mm] | 18 |
| Packaging height [cm] | 17,1 |
| Packaging width [cm] | 15,7 |
| Stroke [mm] | 90 |
| Weight [kg] | 0.130 |
| Width [mm] | 18 |
| Product line | VAICO |
| Fits | BMW · 3 vehicles |
Hood lift support. Restores smooth, controlled opening and holding action.
380 N eject force. Provides firm support for dependable hood positioning.
Compact gas strut design. Measures 255 mm long with a 90 mm stroke.
Cross-references AMS Automotive 4024, Anchor 8823 and Lesjofors 8008403 for the same application. See all 16.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Vaico Hood Lift Support for BMW 525i, 530i, 540i
The Vaico V20-2013 hood lift support is built for 1995 BMW 525i, 530i, and 540i applications. With a 380 N eject force and compact gas strut dimensions, it provides controlled hood opening and holding performance for front-end service access.
Key Features
- 380 N eject force for steady hood support
- Length: 255 mm; stroke: 90 mm
- Outer diameters: 8 mm and 18 mm
- Compact body dimensions: 18 mm height and 18 mm width
- Vaico V20-2013 replacement for hood lift support service
- Fits 1995 BMW 525i, 530i, and 540i
Product Details
VAICO product line components are selected for direct-fit service applications, and this hood lift support follows that approach with application-specific sizing and force output. The V20-2013 is a gas-charged hood strut designed to support the hood during routine maintenance, inspection, and underhood repairs on the BMW 525i, BMW 530i, and BMW 540i. Its 255 mm overall length and 90 mm stroke help match the movement range needed for proper hood operation, while the 380 N eject force supports controlled lift and hold behavior.
This part cross-references Anchor 8823 and Lesjofors 8008403 for the same application. The Vaico V20-2013 is a practical replacement choice when the original hood support no longer holds position or opens smoothly.
What It Helps Fix
- Hood that drops after being opened
- Weak or inconsistent hood lift assistance
- Hood that requires extra effort to raise
- Reduced support during engine bay access
- Worn gas strut performance on 1995 BMW 525i, 530i, or 540i
Installation Notes and Tips
Before installation, verify the existing support length, mounting points, and force rating against the removed part. Replace the hood lift support with the hood fully secured, and inspect the mounting sockets or clips for wear that could affect retention. For best results, confirm the application against the vehicle’s hood support hardware on the 1995 BMW 525i, 530i, or 540i before final installation.
Quality Assurance
Vaico replacement parts are cataloged for specific vehicle applications and dimensional accuracy. The V20-2013 is listed with defined measurements and force output to support consistent fitment on the confirmed BMW applications.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 1995 | BMW | 525i | Base | N/A | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 1995 | BMW | 530i | Base | N/A | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 1995 | BMW | 540i | Base | N/A | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
