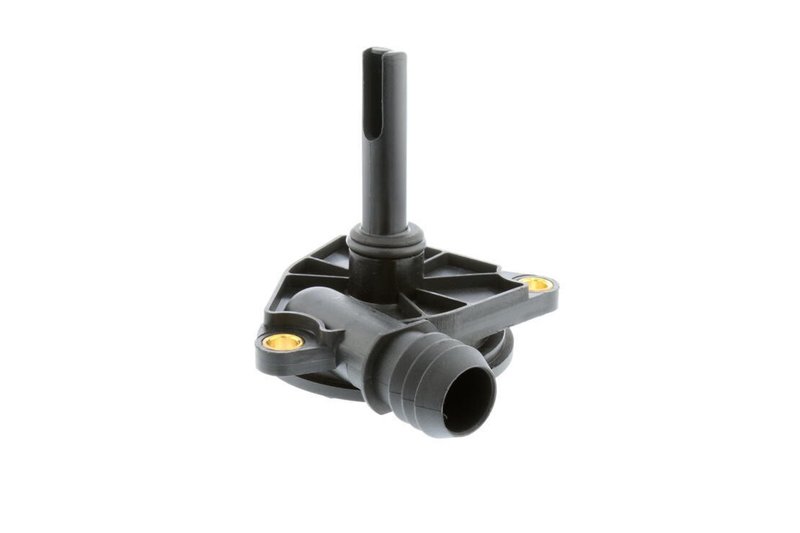

Vaico V20-2262 Engine Crankcase Vent Valve - Right
OE Quality 60-Day Returns
Vaico
 VAICO

Vaico V20-2262 Engine Crankcase Vent Valve - Right

Brand Vaico V20-2262
Position Right
Height [mm] 80
Housing material Polyamid 6.6
Length [mm] 110
Operating Mode Pressure controlled
Packaging height [cm] 9
Packaging width [cm] 8,3
Recommended replace interval [km] 60000
Recommended replace interval [years] 3
Seal Material Fpm (fluoride rubber)/acm (polyacrylate rubber)
Supplementary Article/Info 2 With seal ring
Valve type Diaphragm valve
Weight [kg] 0.064
Width [mm] 88
Product line VAICO
Fits BMW · 9 vehicles

Pressure controlled. Maintains crankcase ventilation flow under changing conditions.

Diaphragm valve. Provides precise venting control for the crankcase system.

Polyamide housing. Lightweight construction with a seal ring for a secure fit.

Cross-references 7 505 464, 7 524 310 and 7 549 715 for the same application. See all 9.

$42.86Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $42.86
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Crankcase Vent Valve options

Engine Crankcase Vent Valve for BMW

Vaico V20-2262 is a pressure-controlled engine crankcase vent valve for emission control service. It uses a diaphragm valve design with a Polyamid 6.6 housing and FPM/ACM seal materials for crankcase ventilation repair on select BMW applications.

For BMW 760Li and BMW 760i service work, Vaico V20-2262 provides a direct-fit crankcase ventilation component for the right-side application listed below. The VAICO product line focuses on OE-style replacement parts built around application-specific fitment and material selection.

  • Pressure-controlled crankcase vent valve for emission control system repair
  • Diaphragm valve construction
  • Polyamid 6.6 housing
  • Seal material: FPM (fluoride rubber) / ACM (polyacrylate rubber)
  • Includes seal ring
  • Recommended replacement interval: 60,000 km or 3 years
  • Part number: V20-2262

Detailed Product Overview

Vaico V20-2262 is an engine crankcase vent valve used in the crankcase ventilation system to regulate pressure and support proper emission control operation. Its pressure-controlled diaphragm design is paired with a compact housing measuring 110 mm long, 88 mm wide, and 80 mm high. The unit is specified with a seal ring and is built from Polyamid 6.6 with FPM/ACM sealing materials for BMW service applications. This part number, V20-2262, is listed for right-side fitment on 2003-2008 BMW 760Li and 2004-2006 BMW 760i applications, including the 2007 BMW 760Li grade noted as aftermarket through 09/2006.

This part cross-references BMW OE numbers 7 505 464 and 7 524 310 for the same application.

Common Symptoms Addressed

  • Crankcase pressure regulation faults
  • Oil vapor separation or ventilation issues
  • Rough idle related to crankcase ventilation problems
  • Oil leaks associated with ventilation system failure
  • Emission control warning conditions tied to vent valve wear

Installation Notes

Confirm right-side placement before installation and verify the vehicle build date against the listed BMW 760Li and BMW 760i fitment. Inspect the sealing surfaces carefully and replace the valve when the ventilation system shows wear, contamination, or pressure-control faults. For service planning, Vaico lists a recommended replacement interval of 60,000 km or 3 years.

Quality Assurance

Vaico V20-2262 is an OE-style replacement part from the VAICO line, with application-specific dimensions and materials selected for crankcase ventilation service. The part number V20-2262 is matched to the listed BMW fitment and supplied with a seal ring for the specified application.

Related reading

This part fits 9 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelLitersCylindersPositionNotes
2008BMW760LiBase6.0LV12RightCompatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO
2007BMW760LiBase6.0LV12RightGrade: Aftermarket; To 09/2006; VAICO
2006BMW760iBase6.0LV12RightCompatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO
2006BMW760LiBase6.0LV12RightCompatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO
2005BMW760iBase6.0LV12RightCompatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO
2005BMW760LiBase6.0LV12RightCompatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO
2004BMW760iBase6.0LV12RightCompatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO
2004BMW760LiBase6.0LV12RightCompatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO
2003BMW760LiBase6.0LV12RightCompatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO
Directly replaces or cross-references 9 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
7 505 4647 524 3107 549 7157 563 50611 15 7 505 46411 15 7 524 31011 15 7 563 50611 61 7 549 715450398
