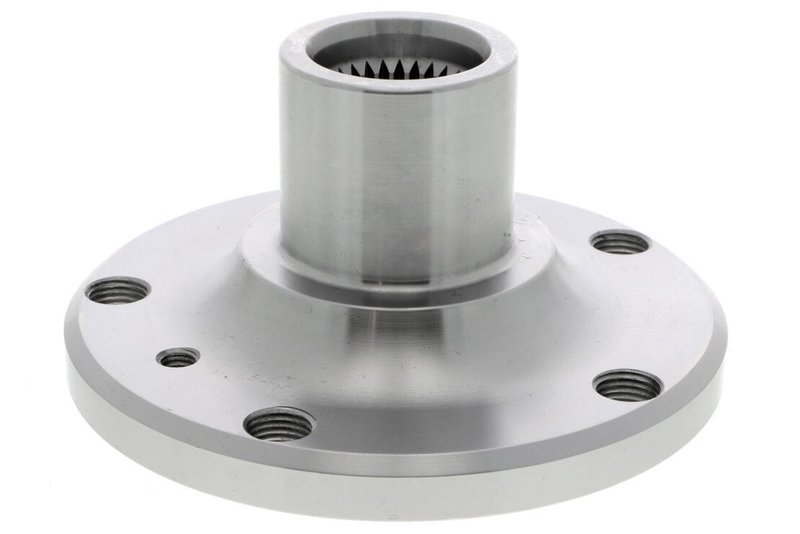

Vaico V20-2700 Wheel Hub - Front
OE Quality 60-Day Returns
Vaico
 VAICO

Vaico V20-2700 Wheel Hub - Front

Brand Vaico V20-2700
Position Front
Bolt Hole Circle Diameter [mm] 120
Height [mm] 90
Length [mm] 138
Number of Holes 5
Outer diameter [mm] 141
Packaging height [cm] 11,7
Packaging width [cm] 16,5
Weight [kg] 2.129
Width [mm] 139
Product line VAICO
Fits BMW · 10 vehicles

Wheel hub replacement. For hubs and related components, with a 5-hole design.

Bolt hole circle diameter measures 120 mm for precise fitment.

Compact 90 mm height and 141 mm outer diameter.

Cross-references 3 413 226, 31 20 3 413 226 and 2800490013 for the same application. See all 4.

$87.16Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $87.16
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Wheel Hub options

Front Wheel Hub for BMW X3

Vaico V20-2700 is a front wheel hub for the 2004-2010 BMW X3. Built around the listed hub dimensions and 5-bolt pattern, it supports a precise wheel mounting interface for front-end service work on BMW X3 applications.

Key Features

  • Front wheel hub for 2004-2010 BMW X3
  • 5-hole design with a 120 mm bolt hole circle diameter
  • Outer diameter: 141 mm
  • Overall dimensions: 138 mm length, 139 mm width, 90 mm height
  • Packaged dimensions: 11.7 cm height and 16.5 cm width
  • Weight: 2.129 kg
  • Vaico part number V20-2700

Detailed Description

Vaico V20-2700 is a front wheel hub engineered for BMW X3 models from 2004 through 2010. The hub’s 5-hole layout and 120 mm bolt circle diameter are key fitment details for front suspension and wheel mounting service, while the 141 mm outer diameter and listed body dimensions help confirm application during replacement. If you are sourcing a front wheel hub for a BMW X3, V20-2700 provides the dimensional and fitment data needed for a direct-match search.

VAICO is the brand line used here for this hub application, and V20-2700 is the identifying part number to verify against your existing component or catalog listing. This part cross-references 3 413 226 and 2800490013 for the same application.

Common Issues This Part Can Address

  • Wheel hub wear that can create noise at the front axle
  • Loose or inconsistent wheel mounting at the hub interface
  • Front-end vibration related to hub condition
  • Service replacement for a damaged or corroded front hub assembly
  • Fitment verification for BMW X3 front suspension repairs

Installation Notes and Tips

Fits 2004-2010 BMW X3, front. Confirm the 5-hole pattern, 120 mm bolt circle diameter, and overall hub dimensions before installation. Compare the removed part and vehicle specifications to V20-2700 to ensure the correct front application for your BMW X3.

Quality Assurance

Use the listed dimensions, bolt pattern, and vehicle fitment data to verify application before installation. Vaico V20-2700 is cataloged for the front position on BMW X3 models from 2004-2010.

Related reading

This part fits 10 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelLitersCylindersPositionNotes
2010BMWX3xDrive30i3.0LL6FrontCompatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO
2009BMWX3xDrive30i3.0LL6FrontCompatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO
2008BMWX3—3.0LL6FrontCompatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO
2007BMWX3—3.0LL6FrontCompatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO
2006BMWX3—3.0LL6FrontCompatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO
2006BMWX3—2.5LL6FrontCompatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO
2005BMWX3—3.0LL6FrontCompatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO
2005BMWX3—2.5LL6FrontCompatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO
2004BMWX3—3.0LL6FrontCompatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO
2004BMWX3—2.5LL6FrontCompatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO
Directly replaces or cross-references 4 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
3 413 22631 20 3 413 22628004900133003121112
