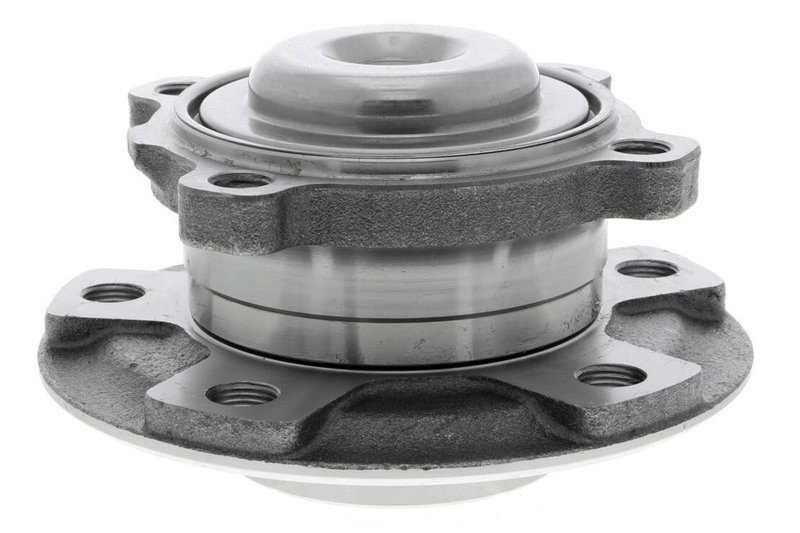

Vaico V20-3277 Wheel Bearing and Hub Assembly - Front
| Brand | Vaico V20-3277 |
|---|---|
| Position | Front |
| Bearing Type | Angular Ball Bearing |
| Height [mm] | 85 |
| Inner diameter [mm] | 35 |
| Length [mm] | 145 |
| Number of Holes | 5 |
| Outer diameter [mm] | 147 |
| Packaging height [cm] | 8,5 |
| Packaging width [cm] | 14,7 |
| Supplementary Article/Info 2 | Wheel Bearing integrated into wheel hub |
| Thickness [mm] | 85 |
| Weight [kg] | 3.083 |
| Width [mm] | 147 |
| Product line | VAICO |
| Fits | BMW · 32 vehicles |
Kit with all needed parts. Packed and supplied in one box for a simpler install.
Integrated wheel bearing. Bearing is built into the wheel hub for a complete assembly.
Angular ball bearing. Supports smooth, reliable wheel rotation.
Cross-references 6 794 850, 6 857 230 and 6 867 256 for the same application. See all 8.
Front Wheel Bearing Hub Assembly for BMW
The Vaico V20-3277 is a front wheel bearing and hub assembly built for select BMW applications. It combines an angular ball bearing with the wheel hub in one service unit, helping restore smooth wheel rotation and precise front-end operation on covered models.
VAICO Expert Kits+ packages the needed parts in one box for a streamlined repair process. This front hub assembly is a direct-fit service part for BMW 230i, 328d, 330i, 340i, 430i, 440i, M240i, and related models listed below.
Key Features
- Part number: V20-3277
- Wheel bearing integrated into the wheel hub
- Angular ball bearing design
- 5-hole hub configuration
- Dimensions: 147 mm outer diameter, 85 mm height, 145 mm length
- Inner diameter: 35 mm
- VAICO Expert Kits+ product line for consolidated service parts
Detailed Description
The Vaico V20-3277 front wheel bearing and hub assembly is engineered for BMW driveline and axle service where the bearing and hub are serviced together. Its integrated design supports accurate wheel mounting and consistent front-wheel rotation, while the angular ball bearing construction is suited to the demands of front suspension service. If you are replacing a worn BMW front hub assembly, V20-3277 provides a direct replacement reference for the applications listed here. This part cross-references OE numbers 6 794 850 and 31 20 6 794 850 for the same application.
VAICO Expert Kits+ focuses on supplying the required service components in one package, reducing the need to source related parts separately. For BMW 328i, 335i, and 435i front wheel bearing service, this part number is a relevant OE-style replacement reference.
What It Helps Fix
- Front wheel bearing noise such as humming or growling
- Wheel play caused by hub or bearing wear
- Uneven wheel rotation from a worn integrated hub assembly
- Front-end vibration related to bearing deterioration
- Service issues on BMW front hub and bearing replacement jobs
Installation Notes and Tips
Install on the front axle only for the listed BMW applications. Verify the hub dimensions, 5-hole pattern, and bearing type against the removed part before installation. Because this assembly integrates the wheel bearing into the wheel hub, inspect adjacent suspension and brake components during service to confirm the repair addresses the full source of the concern. Confirm vehicle-specific fitment for BMW 230i, 328d, 330i, 340i, 430i, 440i, M240i, 330e, 435i, M235i, 335i, ActiveHybrid 3, 320i, and 328i models before ordering.
Quality Assurance
VAICO Expert Kits+ is positioned as a consolidated service line that supplies the needed parts in one box for the repair. The V20-3277 is built as a front wheel bearing and hub assembly for the confirmed BMW applications listed in the fitment data.
Vehicle Fitment
- Fits 2017 BMW 230i, front
- Fits 2014-2017 BMW 328d, front
- Fits 2017 BMW 330i, front
- Fits 2016-2017 BMW 340i, front
- Fits 2017 BMW 430i, front
- Fits 2017 BMW 430i Gran Coupe, front
- Fits 2017 BMW 440i, front
- Fits 2017 BMW 440i Gran Coupe, front
- Fits 2017 BMW M240i, front
- Fits 2016 BMW 330e, front
- Fits 2014-2016 BMW 435i, front
- Fits 2015-2016 BMW 435i Gran Coupe, front
- Fits 2014-2016 BMW M235i, front
- Fits 2012-2015 BMW 335i, front
- Fits 2013-2015 BMW ActiveHybrid 3, front
- Fits 2013 BMW 320i, front
- Fits 2012-2013 BMW 328i, front
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2017 | BMW | 230i | Base | — | — | — | Front | Grade: Aftermarket; To 09/2016; VAICO |
| 2017 | BMW | 328d | Base | — | — | — | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2017 | BMW | 330i | Base | — | — | — | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2017 | BMW | 340i | Base | — | — | — | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2017 | BMW | 430i | Base | — | — | — | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2017 | BMW | 430i Gran Coupe | Base | — | — | — | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2017 | BMW | 440i | Base | — | — | — | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2017 | BMW | 440i Gran Coupe | Base | — | — | — | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2017 | BMW | M240i | Base | — | — | — | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2016 | BMW | 328d | Base | — | — | — | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2016 | BMW | 330e | Base | — | — | — | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2016 | BMW | 340i | Base | — | — | — | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2016 | BMW | 435i | Base | — | — | — | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2016 | BMW | 435i Gran Coupe | Base | — | — | — | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2016 | BMW | M235i | Base | — | — | — | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2015 | BMW | 328d | Base | — | — | — | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2015 | BMW | 335i | Base | — | — | — | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2015 | BMW | 435i | Base | — | — | — | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2015 | BMW | 435i Gran Coupe | Base | — | — | — | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2015 | BMW | ActiveHybrid 3 | Base | — | 3.0L | L6 | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2015 | BMW | M235i | Base | — | 3.0L | L6 | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2014 | BMW | 328d | Base | — | — | — | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2014 | BMW | 335i | Base | — | — | — | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2014 | BMW | 435i | Base | — | — | — | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2014 | BMW | ActiveHybrid 3 | Base | — | 3.0L | L6 | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2014 | BMW | M235i | Base | — | — | — | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2013 | BMW | 320i | Base | — | — | — | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2013 | BMW | 328i | Base | — | 2.0L | L4 | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2013 | BMW | 335i | Base | Sedan | — | — | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2013 | BMW | ActiveHybrid 3 | Base | — | — | — | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2012 | BMW | 328i | Base | — | 2.0L | L4 | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2012 | BMW | 335i | Base | Sedan | — | — | Front | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
