OE Quality
60-Day Returns
Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.
Vaico

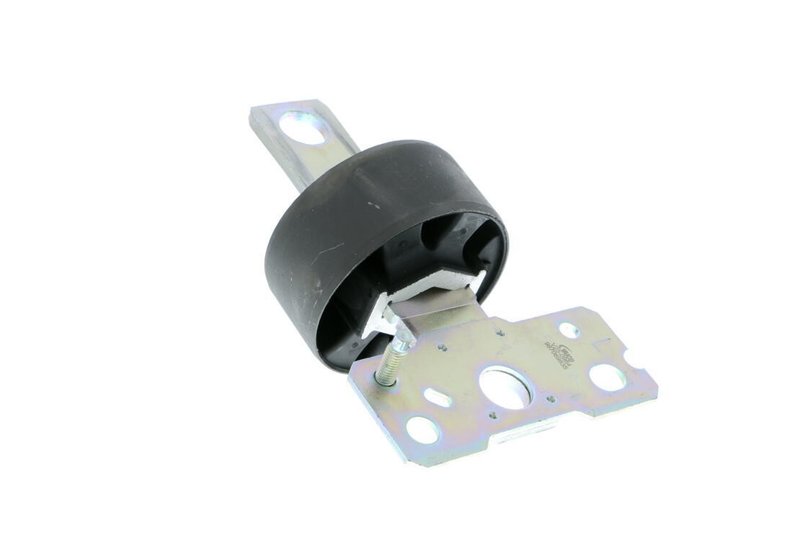

VAICOVaico V25-0964 Suspension Trailing Arm Bushing - Rear Left
| Brand | Vaico V25-0964 |
|---|---|
| Position | Rear Left |
| Height [mm] | 69.2 |
| Length [mm] | 151 |
| Outer diameter [mm] | 90 |
| Packaging height [cm] | 6,92 |
| Packaging width [cm] | 9,02 |
| Paired article numbers | V25-0963 |
| Steering arm type | for control arm |
| Thickness [mm] | 40,5 |
| Weight [kg] | 0.830 |
| Width [mm] | 90.2 |
| Product line | VAICO |
| Fits | Volvo · 77 vehicles |
Control arm bushing. Designed for suspension use with a precise 90 mm outer diameter.
Compact, robust build. Measures 151 mm long and weighs 0.830 kg for a solid fit.
Cross-references 1 566 837, 1 865 033 and 2 040 702 for the same application. See all 12.
$63.80Free shipping
In stock · usually ships same day before 1pm CST
Vehicle: not selected
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Fitment not checked
Select your vehicle to confirm fitment
Verify this part fits before purchasing β free returns if it doesn't
Step 2 — Quantity
$63.80
Free shipping
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Suspension Trailing Arm Bushing options
Volvo Rear Left Trailing Arm Bushing
Vaico V25-0964 is a suspension trailing arm bushing for the rear left position on select Volvo applications. With OE-style dimensions and control arm mounting geometry, it supports precise rear suspension location on Volvo S60, S80, V60, XC60, XC70, and V70 models.
Key Features
- Part number: V25-0964
- Rear left suspension trailing arm bushing for control arm use
- Dimensions: 69.2 mm height, 151 mm length, 90 mm outer diameter, 90.2 mm width, 40.5 mm thickness
- Paired article number: V25-0963
- Fits select 2007-2015 Volvo S80, 2008-2015 Volvo XC70, and other listed Volvo rear left applications
Product Details
Vaico VAICO V25-0964 is built as a suspension bushing for the rear left side, with dimensions that align to the control arm mounting point. The bushing measures 151 mm in length, 90 mm in outer diameter, 90.2 mm in width, and 40.5 mm in thickness, giving it the physical profile needed for the specified Volvo rear suspension applications. This part number is listed for 2011-2015 Volvo S60, 2007-2015 Volvo S80, 2015 Volvo V60, 2010-2015 Volvo XC60, 2008-2015 Volvo XC70, and 2008-2010 Volvo V70. The V25-0964 part number is also useful when searching for a Volvo rear left trailing arm bushing replacement by exact OE-style reference.
Vaicoβs VAICO line is used for replacement components that follow application-specific fitment and dimensional requirements, making it a practical choice when servicing the rear suspension on Volvo S60, XC60, or XC70 models. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Uses
- Rear suspension noise from worn bushing material
- Excessive rear wheel movement under load
- Uneven rear suspension response during braking or cornering
- Restoring rear left control arm location on Volvo S60, S80, XC60, XC70, or V70
- Replacing a deteriorated trailing arm bushing identified by V25-0964
Installation Notes
Verify rear left position and vehicle application before installation. This bushing is specified for control arm use, so confirm the mounting point matches the listed Volvo fitment and compare the dimensions to the removed part. For 2015 Volvo V60 applications, the listing notes aftermarket grade and excludes Level control NIVOMAT. Pairing with the matching side reference V25-0963 is recommended when servicing both sides of the rear suspension.
Quality Assurance
Vaico V25-0964 is cataloged with exact fitment data and dimensional specifications for the listed Volvo models, supporting accurate replacement selection for rear suspension service.
This part fits 77 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2015 | Volvo | S60 | — | 3.0L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2015 | Volvo | S60 | — | 2.5L | L5 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2015 | Volvo | S60 | — | 2.0L | L4 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2015 | Volvo | S80 | AWD | 3.0L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2015 | Volvo | S80 | FWD | 2.0L | L4 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2015 | Volvo | V60 | — | 3.0L | L6 | Rear Left | Grade: Aftermarket; Without Level control NIVOMAT; VAICO |
| 2015 | Volvo | V60 | — | 2.5L | L5 | Rear Left | Grade: Aftermarket; Without Level control NIVOMAT; VAICO |
| 2015 | Volvo | V60 | — | 2.0L | L4 | Rear Left | Grade: Aftermarket; Without Level control NIVOMAT; VAICO |
| 2015 | Volvo | XC60 | AWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2015 | Volvo | XC60 | FWD | 3.0L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2015 | Volvo | XC60 | AWD | 3.0L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2015 | Volvo | XC60 | FWD | 2.0L | L4 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2015 | Volvo | XC60 | AWD | 2.0L | L4 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2015 | Volvo | XC70 | AWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2015 | Volvo | XC70 | AWD | 3.0L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2015 | Volvo | XC70 | FWD | 2.0L | L4 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2014 | Volvo | S60 | — | 3.0L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2014 | Volvo | S60 | — | 2.5L | L5 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2014 | Volvo | S80 | FWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2014 | Volvo | S80 | AWD | 3.0L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2014 | Volvo | XC60 | FWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2014 | Volvo | XC60 | AWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2014 | Volvo | XC60 | AWD | 3.0L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2014 | Volvo | XC70 | FWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2014 | Volvo | XC70 | AWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2014 | Volvo | XC70 | AWD | 3.0L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2013 | Volvo | S60 | — | 3.0L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2013 | Volvo | S60 | — | 2.5L | L5 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2013 | Volvo | S80 | FWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2013 | Volvo | S80 | AWD | 3.0L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2013 | Volvo | XC60 | FWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2013 | Volvo | XC60 | AWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2013 | Volvo | XC60 | AWD | 3.0L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2013 | Volvo | XC70 | FWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2013 | Volvo | XC70 | AWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2013 | Volvo | XC70 | AWD | 3.0L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2012 | Volvo | S60 | — | 3.0L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2012 | Volvo | S60 | — | 2.5L | L5 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2012 | Volvo | S80 | FWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2012 | Volvo | S80 | AWD | 3.0L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2012 | Volvo | XC60 | FWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2012 | Volvo | XC60 | AWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2012 | Volvo | XC60 | AWD | 3.0L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2012 | Volvo | XC70 | FWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2012 | Volvo | XC70 | AWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2012 | Volvo | XC70 | AWD | 3.0L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2011 | Volvo | S60 | — | 3.0L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2011 | Volvo | S80 | FWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2011 | Volvo | S80 | AWD | 3.0L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2011 | Volvo | XC60 | FWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2011 | Volvo | XC60 | AWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2011 | Volvo | XC60 | AWD | 3.0L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2011 | Volvo | XC70 | FWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2011 | Volvo | XC70 | AWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2011 | Volvo | XC70 | AWD | 3.0L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2010 | Volvo | S80 | AWD | 4.4L | V8 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2010 | Volvo | S80 | FWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2010 | Volvo | S80 | AWD | 3.0L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2010 | Volvo | V70 | — | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2010 | Volvo | XC60 | FWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2010 | Volvo | XC60 | AWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2010 | Volvo | XC60 | AWD | 3.0L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2010 | Volvo | XC70 | — | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2010 | Volvo | XC70 | — | 3.0L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2009 | Volvo | S80 | AWD | 4.4L | V8 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2009 | Volvo | S80 | FWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2009 | Volvo | S80 | AWD | 3.0L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2009 | Volvo | V70 | — | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2009 | Volvo | XC70 | — | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2009 | Volvo | XC70 | — | 3.0L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2008 | Volvo | S80 | AWD | 4.4L | V8 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2008 | Volvo | S80 | FWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2008 | Volvo | S80 | AWD | 3.0L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2008 | Volvo | V70 | — | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2008 | Volvo | XC70 | — | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2007 | Volvo | S80 | AWD | 4.4L | V8 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2007 | Volvo | S80 | FWD | 3.2L | L6 | Rear Left | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| No rows match your filter. | |||||||
Directly replaces or cross-references 12 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
1 566 8371 865 0332 040 7026G91 5K896 AA6G91 5K896 AB31 387 28031 406 3371566 837S13140 6337S K1313872823140633731406349
