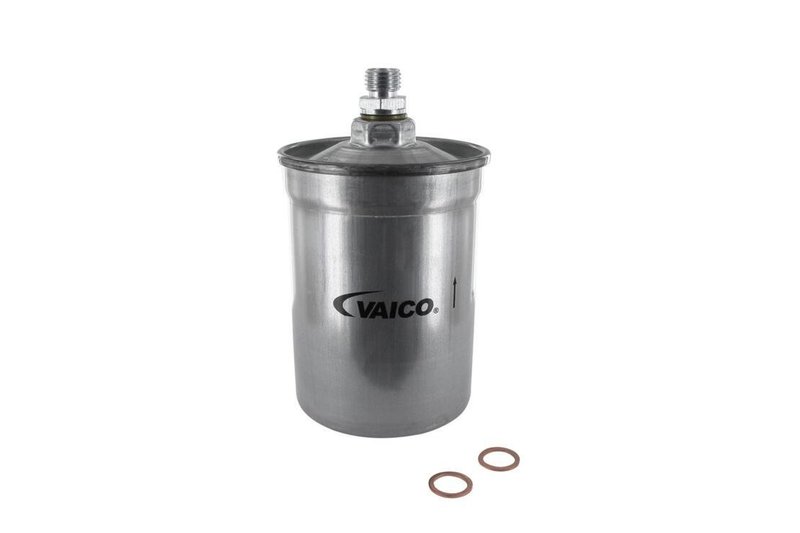

Vaico V30-0810-1 Fuel Filter

Vaico V30-0810-1 Fuel Filter for Mercedes-Benz

The Vaico V30-0810-1 is a screw-on fuel filter for select Mercedes-Benz applications, built around the listed OE-style dimensions and thread sizes for direct replacement service. It is specified for in-line fuel filtration on models such as the Mercedes-Benz S320, S420, S500, and S600, along with select E-Class and SL-Class vehicles.

VAICO product line components are developed for service replacement use, with fitment and dimensional details called out to support accurate matching to the original fuel system layout. This fuel filter uses an M 12 x 1.5 entry thread and M 14 x 1.5 exit thread, with a 90 mm diameter and 165 mm height.

Key Features

• Screw-on fuel filter for in-line fuel delivery service
• Part number: V30-0810-1
• Thread Size Entry: M 12 x 1.5
• Thread Size Exit: M 14 x 1.5
• Diameter: 90 mm
• Height: 165 mm
• Outer diameter: 74.5 mm
• Outer diameter 1: 80 mm
• Compatible With select Mercedes-Benz S320, S420, S500, S600, E320, E420, SL320, SL500, SL600, and related chassis-specific applications

Detailed Description

The Vaico V30-0810-1 fuel filter is a screw-on filter for Mercedes-Benz fuel system service where the original part uses the same thread and dimensional profile. It is listed for 1992-1997 Mercedes-Benz S-Class, E-Class, and SL-Class vehicles, including Fits 1995-1997 Mercedes-Benz S320, Fits 1995-1997 Mercedes-Benz S420, Fits 1995-1997 Mercedes-Benz S500, Fits 1995-1997 Mercedes-Benz S600, and related chassis/VIN-specific applications. The part number V30-0810-1 is also useful when cross-checking OE references and service replacements for the same application.

This part cross-references Bosch 62852 for the same application.

What It Helps Address

• Restricted fuel flow caused by a clogged filter element
• Fuel contamination reaching injectors or fuel system components
• Hard starting related to fuel delivery restriction
• Engine hesitation or fuel starvation under load
• Maintenance replacement for aging Mercedes-Benz in-line fuel filtration

Installation Notes and Tips

Confirm the entry and exit thread sizes, overall height, and diameter against the removed filter before installation. Verify chassis/VIN notes for Mercedes-Benz S320, S420, S500, S600, E320, E420, SL320, SL500, and SL600 applications, since the fitment list includes VIN breakpoints and OE-number references. Replace the filter only after relieving fuel system pressure and follow the vehicle service procedure for the specific chassis.

Quality Assurance

VAICO identifies this part with OE-style fitment data, dimensional specifications, and interchange references to support accurate replacement selection for Mercedes-Benz fuel system service.
