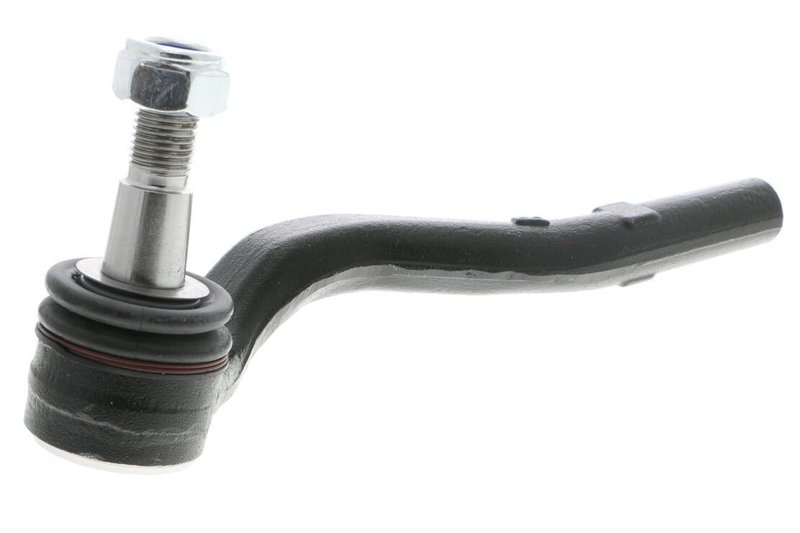

Vaico V30-1814 Steering Tie Rod End - Right Outer

Mercedes-Benz Steering Tie Rod End

The Vaico V30-1814 steering tie rod end is a direct-fit steering component for select Mercedes-Benz models with right outer front suspension applications. Built around the listed dimensions and thread specification, it supports precise steering linkage service on CLS550, CLS400, E350, E400, and E550 vehicles.

VAICO product line components are developed for European vehicle service needs, with application-specific fitment and dimensional accuracy for steering and suspension repairs.

Key Features

• Part number: V30-1814
• Steering tie rod end for right outer position
• Thread size 1: M14 x 1,5
• Cone size: 16 mm
• Cone pitch: 1/10
• Overall length: 237 mm
• Height: 75 mm; width: 63 mm
• Weight: 0.896 kg
• Paired article number: V30-1813

Detailed Description

Use the Vaico V30-1814 when servicing the steering linkage on Mercedes-Benz CLS550, CLS400, E350, E400, and E550 models with a right outer tie rod end application. This steering tie rod end is specified with an M14 x 1,5 thread, 16 mm cone size, and 237 mm length, helping match the original steering geometry and connection points required for proper front-end service. This part cross-references Mercedes-Benz OE numbers 212 330 22 03 and A 212 330 22 03 for the same application. The V30-1814 is also referenced by aftermarket numbers including ES800924 and SCE0278R.

What It Helps Fix

• Steering play or looseness at the front right outer linkage
• Uneven or unstable steering response during lane changes
• Front-end alignment issues after tie rod wear
• Clunking or knocking from worn steering linkage joints
• Irregular tire wear caused by steering geometry drift

Installation Notes and Tips

Confirm the right outer position before installation and verify thread size, cone size, and overall length against the removed part. After replacement, perform a professional wheel alignment to restore steering angle and tire wear characteristics. For related service work, check the paired article number V30-1813 when the opposite side or matching linkage component is being serviced.

Quality Assurance

VAICO steering components are built to match the dimensional requirements of the listed Mercedes-Benz applications. This part is cataloged for 2010-2017 Mercedes-Benz steering service coverage, including CLS550, CLS400, E350, E400, and E550 right outer fitments.
