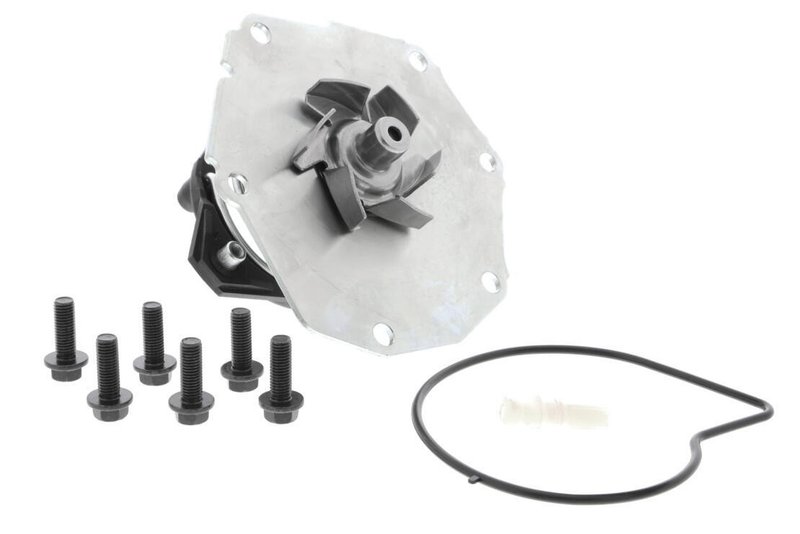

Vaico V48-50004 Engine Water Pump
| Brand | Vaico V48-50004 |
|---|---|
| Heating/Cooling | Metal impeller |
| Height [mm] | 116 |
| Length [mm] | 151 |
| Packaging height [cm] | 11,3 |
| Packaging width [cm] | 12,9 |
| Supplementary Article/Info 2 | with fastening material |
| Supplementary Article/Supplementary Info | with seal |
| Weight [kg] | 1.005 |
| Width [mm] | 134 |
| Product line | VAICO |
| Fits | Land Rover · 10 vehicles |
Metal impeller. Improves coolant flow for efficient engine cooling.
With seal. Includes the sealing component needed for installation.
Expert Kits+. All needed parts are packed in one box.
Cross-references Genuine LR006861, 1600321431 and LR003204 for the same application. See all 4.
Engine Water Pump for Land Rover LR2
Vaico V48-50004 is an engine water pump built for the 2008-2012 Land Rover LR2. It uses a metal impeller and is supplied as an Expert Kits+ package with the needed seal and fastening material for the application.
VAICO Expert Kits+ groups the required service parts into one box, helping streamline water pump replacement on the Land Rover LR2. The V48-50004 part number is also referenced for OE-style service planning when matching cooling system components.
Key Features
- Engine water pump for 2008-2012 Land Rover LR2
- Metal impeller construction
- Includes seal
- Includes fastening material
- Packaged as a VAICO Expert Kits+ solution
- Part number: V48-50004
Detailed Description
This Vaico engine water pump is specified for Land Rover LR2 models from 2008 through 2012. The metal impeller supports coolant circulation through the engine cooling system, while the included seal and fastening material address the core service items needed during replacement. If you are sourcing a Land Rover LR2 water pump replacement, V48-50004 provides a direct-fit service part reference for the listed vehicles. This part cross-references Genuine LR006861 for the same application.
Common Problems It Can Address
- Coolant circulation loss from a worn pump assembly
- Coolant leakage at the pump sealing surface
- Noise or rough operation from a failing pump bearing
- Overheating caused by reduced coolant flow
- Service delays when replacing cooling system components on a Land Rover LR2
Installation Notes and Tips
Confirm vehicle year and application before installation. Inspect the cooling system, mating surfaces, and adjacent hoses for wear or contamination before fitting the new pump. Use the supplied seal and fastening material as specified for the service procedure, and refill and bleed the cooling system according to the vehicle manufacturer’s instructions after installation. Fits 2008-2012 Land Rover LR2, N/A.
Quality Assurance
Vaico positions this part within its Expert Kits+ line, which packages the required service components together for a more complete repair. The V48-50004 water pump is built for the listed Land Rover LR2 applications and follows the brand’s OE-focused replacement approach.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2012 | Land Rover | LR2 | HSE | — | — | N/A | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2012 | Land Rover | LR2 | HSE Lux | — | — | N/A | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2012 | Land Rover | LR2 | Base | — | — | N/A | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2011 | Land Rover | LR2 | HSE | — | — | N/A | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2011 | Land Rover | LR2 | HSE Lux | — | — | N/A | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2011 | Land Rover | LR2 | Base | — | — | N/A | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2010 | Land Rover | LR2 | HSE | — | — | N/A | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2009 | Land Rover | LR2 | HSE | — | — | N/A | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2008 | Land Rover | LR2 | SE | 3.2L | L6 | N/A | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| 2008 | Land Rover | LR2 | HSE | 3.2L | L6 | N/A | Compatible with front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations.; VAICO |
| No rows match your filter. | |||||||
