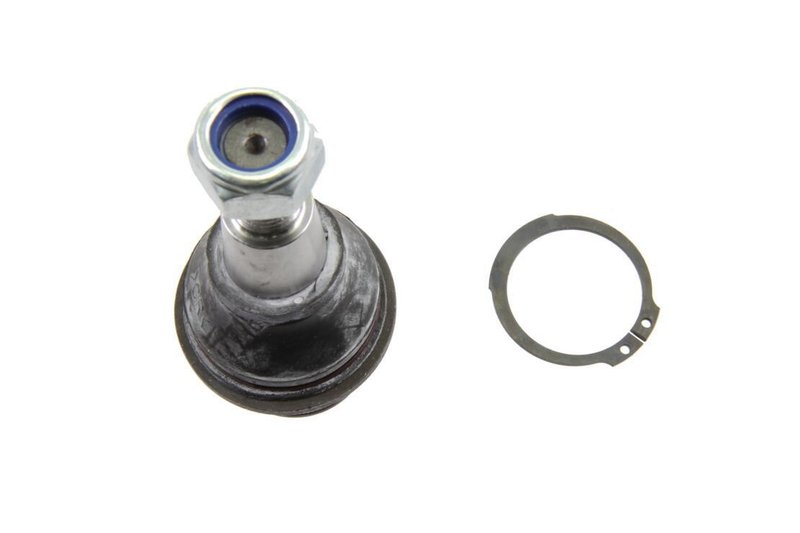

Vaico V48-9530 Suspension Ball Joint - Front Lower

Vaico Suspension Ball Joint for Land Rover

The Vaico V48-9530 is a suspension ball joint for front lower applications on select Land Rover LR3 and LR4 models. Built to match the listed fitment and dimensional profile, it supports precise suspension articulation in the front end.

VAICO product line components are developed for direct-fit service applications, with attention to OE-style dimensions and vehicle-specific coverage for Land Rover suspension repair.

Key Features

• Part number: V48-9530
• Suspension ball joint for front lower installation points
• Fits 2005-2009 Land Rover LR3, front lower
• Fits 2010-2016 Land Rover LR4, front lower
• Dimensions: 59 mm height, 127 mm length, 59 mm width
• Packaging size: 13 cm depth, 7 cm height, 9.5 cm width
• Weight: 0.390 kg

Detailed Description

Vaico V48-9530 is a front lower suspension ball joint for Land Rover LR3 and Land Rover LR4 applications. The listed dimensions, including 59 mm height, 127 mm length, and 59 mm width, help confirm the physical profile for suspension service work. This part number is a direct reference for buyers searching for a Land Rover LR3 front lower ball joint or a Land Rover LR4 front lower suspension ball joint.

This part cross-references MOOG Chassis Products K500148 for the same application.

What It Helps Address

• Front suspension looseness or play at the ball joint
• Clunking or knocking from the lower front suspension area
• Uneven steering response caused by worn joint articulation
• Inspection failures related to front lower suspension wear
• Restoration of proper front suspension movement on Land Rover LR3 and LR4

Installation Notes and Tips

Verify the vehicle year, model, and front lower position before ordering. Confirm clearance around the front suspension stabilizer bar link kit, brake hydraulic hose, and steering tie rod end installations noted in the fitment data for LR3 and LR4 applications. Compare the existing part dimensions and mounting location to V48-9530 before installation.

Quality Assurance

Vaico V48-9530 is cataloged with OE-style vehicle coverage for Land Rover suspension service and is listed with interchange references for common aftermarket cross-checking. Confirm fitment against the vehicle application data before installation.
