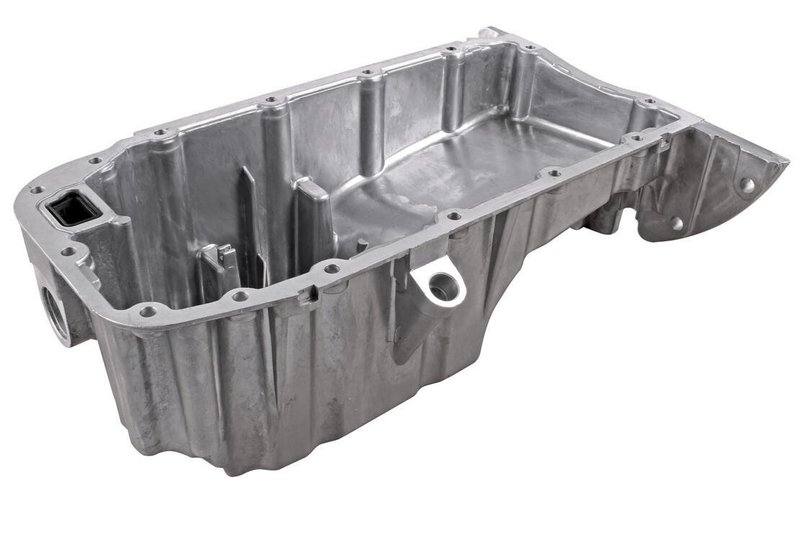

Vaico V51-0049 Engine Oil Pan

Engine Oil Pan for Select Chevrolet and Pontiac Models

The Vaico V51-0049 engine oil pan is a direct-fit replacement for select Chevrolet Aveo, Chevrolet Aveo5, Pontiac G3, and Pontiac G3 Wave applications. Built from aluminium and supplied with an oil drain plug, it is specified for vehicles that need a replacement oil pan with OE reference 25181235.

Key Features

• Brand: VAICO / Vaico
• Part number: V51-0049
• Engine oil pan for cylinder block component repair
• Wet sump material: aluminium
• Supplied with oil drain plug
• Without oil pan gasket
• Dimensions: 442 mm length, 304 mm width, 177 mm height
• OE reference application: 25181235

Product Details

VAICO V51-0049 is an aluminium engine oil pan made for vehicles that require a replacement sump with the correct OE-style fit and drain provision. The VAICO product line is used for service and repair parts that match the original application requirements, and this oil pan follows that approach for the listed Chevrolet and Pontiac models. If you are replacing a damaged or leaking pan on a 2009-2011 Chevrolet Aveo or Aveo5, or on a 2009-2010 Pontiac G3 or 2009 Pontiac G3 Wave, this part number provides the specified replacement path.

This part cross-references OE number 25181235 for the same application.

Common Reasons for Replacement

• Cracked or dented oil pan from road impact
• Oil leaks at the pan body or drain area
• Damaged drain plug threads
• Corrosion or wear on the original sump
• Service repair after lower-engine damage

Installation Notes

Confirm engine application and OE number before installation. This oil pan is supplied without an oil pan gasket, so the gasket must be sourced separately if required for the repair. Clean the mating surfaces thoroughly, inspect the drain plug sealing area, and torque fasteners to the vehicle manufacturer’s specification during installation of V51-0049.

Quality Assurance

VAICO parts are built for service replacement applications with attention to OE-style fitment and material selection. The aluminium construction and application-specific dimensions support a precise replacement for the listed Chevrolet and Pontiac vehicles.
