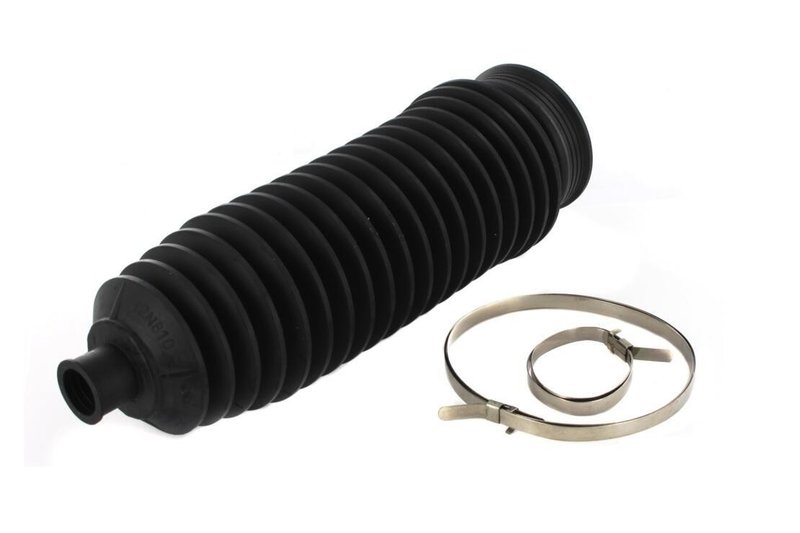

Vaico V95-0171 Rack and Pinion Bellows - Left or Right

Vaico Rack and Pinion Bellows for Volvo XC90

Vaico V95-0171 is a rack and pinion bellows for steering systems that require a precise OE-style fit. It is specified for the Volvo XC90 and supports left or right side applications across 2003-2014 model years.

Key Features

• Rack and pinion bellows for steering gear protection
• Fits 2003-2014 Volvo XC90, left
• Fits 2003-2014 Volvo XC90, right
• Plastic construction
• Length: 205 mm
• Height: 65 mm
• Width: 65 mm
• Inner diameter 1: 14 mm
• Inner diameter 2: 49 mm
• Part number: V95-0171

Detailed Description

Vaico V95-0171 is a steering rack bellows designed for the steering, gear and related components category. With a 205 mm length, 65 mm height, and 65 mm width, this bellows is built to match the dimensions needed for the Volvo XC90 steering rack assembly. The 14 mm and 49 mm inner diameters help support a secure interface at the rack and tie-rod area, while the plastic material provides a lightweight, service-ready construction. This part cross-references OE number 274354 for the same application.

VAICO is the product line used for OE-style replacement parts, and V95-0171 follows that approach for Volvo XC90 steering service. If you are searching for a Volvo XC90 rack and pinion bellows, Volvo XC90 steering rack boot, or V95-0171 replacement bellows, this part matches the listed left and right fitments for 2003-2014 vehicles.

What It Is Used For

• Replacing a torn or cracked steering rack boot
• Protecting the rack and pinion from dirt and moisture intrusion
• Restoring a damaged bellows on a Volvo XC90 steering system
• Addressing steering rack boot wear that can lead to contamination
• Supporting proper sealing at the steering gear bellows area

Installation Notes and Tips

Verify the OE number 274354 and confirm left or right side placement before installation. Compare the old bellows dimensions to the listed 205 mm length and 14 mm / 49 mm inner diameters to ensure correct match-up on the Volvo XC90. Inspect the steering rack, tie-rod ends, and surrounding components for wear or contamination before reassembly.

Quality Assurance

Vaico V95-0171 is an aftermarket steering component built to OE-style specifications for the listed Volvo XC90 applications. The part number and OE cross-reference help confirm application accuracy during parts selection.
