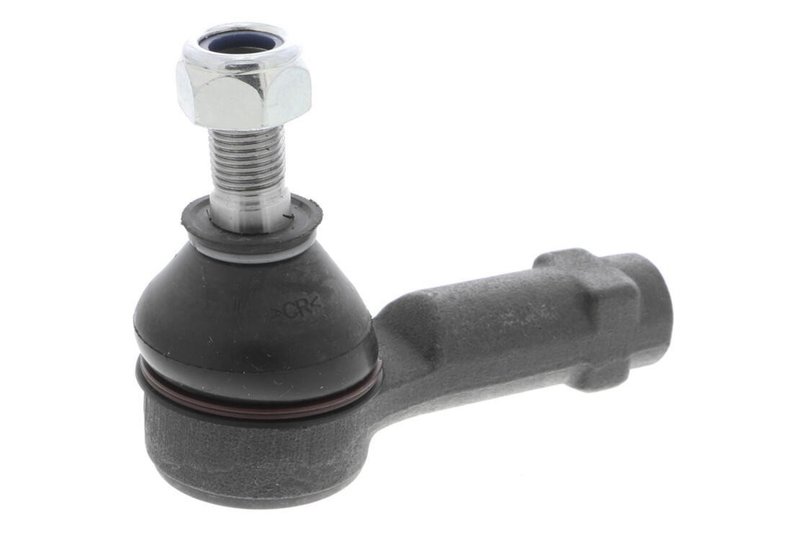

Vaico V95-9520 Steering Tie Rod End - Front Outer

Steering Tie Rod End for Volvo Front Outer Fitment

The Vaico V95-9520 steering tie rod end is a front outer steering component for select Volvo applications. It is specified with a right-hand thread, M14 x 2 inner thread, and M12 x 1.5 outer thread for direct-fit service on supported vehicles.

Built for steering linkage service on Volvo 240, 740, 745, 780, 940, and 960 models, this VAICO steering tie rod end supports precise front-end steering repair where worn ball joints or threaded ends can affect alignment and road feel. The V95-9520 part number is also a useful reference when cross-checking replacement options for the same application.

Key Features

• Brand: Vaico / VAICO
• Part number: V95-9520
• Category: Steering tie rod end
• Position: Front outer
• Thread type: Right-hand thread
• Inner thread: M14 x 2
• Outer thread: M12 x 1.5
• Dimensions: 77 mm length, 94 mm width, 37 mm height
• Weight: 0.400 kg

Detailed Description

The VAICO V95-9520 is a steering tie rod end for the front outer position on select Volvo vehicles. It is listed for 1985-1992 Volvo 740, 1985 Volvo 745, 1987-1991 Volvo 780, 1990-1993 Volvo 240, 1991-1995 Volvo 940, and 1992-1997 Volvo 960 applications. This part number, V95-9520, should be matched to the vehicle’s steering linkage specifications before installation.

VAICO product line components are used for steering and chassis service where thread size, thread direction, and mounting position must match the original setup. This part cross-references Delphi TA769 and MOOG Chassis Products ES2161R for the same application.

What This Part Helps Address

• Loose or imprecise steering response at the front end
• Clunking or play from a worn outer tie rod end
• Uneven tire wear caused by steering linkage wear
• Alignment issues after steering component replacement
• Restoration of steering linkage service on older Volvo models

Installation Notes and Tips

Confirm the front outer position, thread direction, and thread sizes before installation. The V95-9520 uses a right-hand thread with M14 x 2 inner thread and M12 x 1.5 outer thread, so matching the existing steering linkage is essential for proper fitment. After installation, a professional wheel alignment is recommended to verify steering geometry.

Compatible With: Fits 1985-1992 Volvo 740, front outer; Fits 1985 Volvo 745, front outer; Fits 1987-1991 Volvo 780, front outer; Fits 1990-1993 Volvo 240, front outer; Fits 1991-1995 Volvo 940, front outer; Fits 1992-1997 Volvo 960, front outer.

Quality Assurance

VAICO steering and chassis parts are cataloged with detailed dimensional and thread specifications to support accurate parts matching for Volvo steering repair. The V95-9520 part number and listed measurements provide the reference points needed for fitment verification before service.
