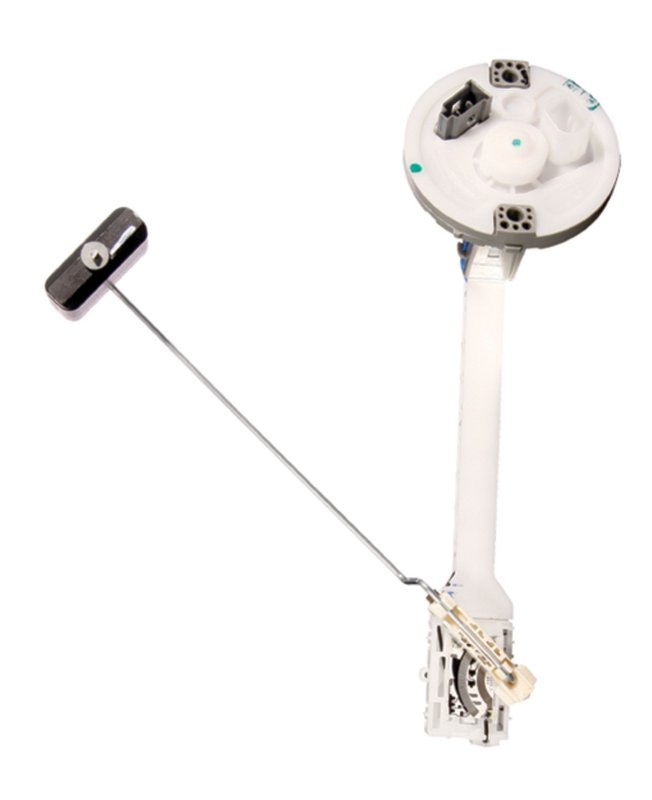

VDO 221-838-002-020Z Fuel Tank Sending Unit

Reliable Fuel Tank Sending Unit for Mercedes-Benz Models

The VDO Fuel Tank Sending Unit 221-838-002-020Z is designed specifically for select Mercedes-Benz vehicles, including the E55 AMG, E320, E420, and E430. This 12-volt, negative ground component ensures accurate fuel level readings and seamless integration with your vehicle's fuel system.

Key Features of the VDO Fuel Tank Sending Unit

• Compatible with Mercedes-Benz E55 AMG, E320, E420, and E430 models
• Operates on 12 volts with negative ground configuration
• Specific fit design for precise installation and performance
• Blade terminal type with 5 male terminals and 2 oval-shaped connectors
• Durable plastic-metal housing for long-lasting use
• Includes gasket or seal to maintain fuel system integrity
• Resistance range from 2 ohms (empty) to 200 ohms (full) for accurate fuel level measurement
• Installation warnings provided to ensure proper setup

Detailed Product Description

The VDO 221-838-002-020Z Fuel Tank Sending Unit is engineered to provide reliable fuel level data for Mercedes-Benz E55 AMG, E320, E420, and E430 models. Featuring a specific fit design, this unit ensures compatibility and straightforward installation. The plastic-metal housing offers durability while maintaining a lightweight profile. Its blade terminal type with five male terminals and two oval connectors supports secure electrical connections. The included gasket or seal helps prevent leaks and maintains system integrity. With a resistance range from 2 ohms when empty to 200 ohms when full, this sending unit delivers precise fuel level readings to your vehicle’s dashboard.

Common Applications and Issues Addressed

• Replacing faulty or inaccurate fuel tank sending units in Mercedes-Benz E55 AMG, E320, E420, and E430
• Resolving inconsistent fuel gauge readings or erratic fuel level behavior
• Addressing electrical connection issues related to blade terminals or connector shapes
• Fixing fuel system leaks by utilizing the included gasket or seal
• Upgrading worn or damaged fuel level sensors to restore proper fuel monitoring

Installation Notes and Tips

Ensure the vehicle’s electrical system is set to negative ground and operates at 12 volts before installation. Carefully follow the installation warnings provided with the unit to avoid damage. Verify that the blade terminals and oval connectors align correctly with the vehicle’s wiring harness. Use the included gasket or seal to prevent fuel leaks and maintain system safety. It is recommended to consult the vehicle’s service manual for detailed installation procedures specific to Mercedes-Benz E55 AMG, E320, E420, and E430 models.

Quality Assurance and Warranty

VDO manufactures this fuel tank sending unit to meet OEM specifications for Mercedes-Benz vehicles. The combination of plastic-metal housing and precise resistance calibration ensures consistent performance. While specific warranty details are not provided, VDO products typically adhere to industry standards for durability and reliability. For further warranty information, refer to VDO’s official documentation or contact authorized service providers.
