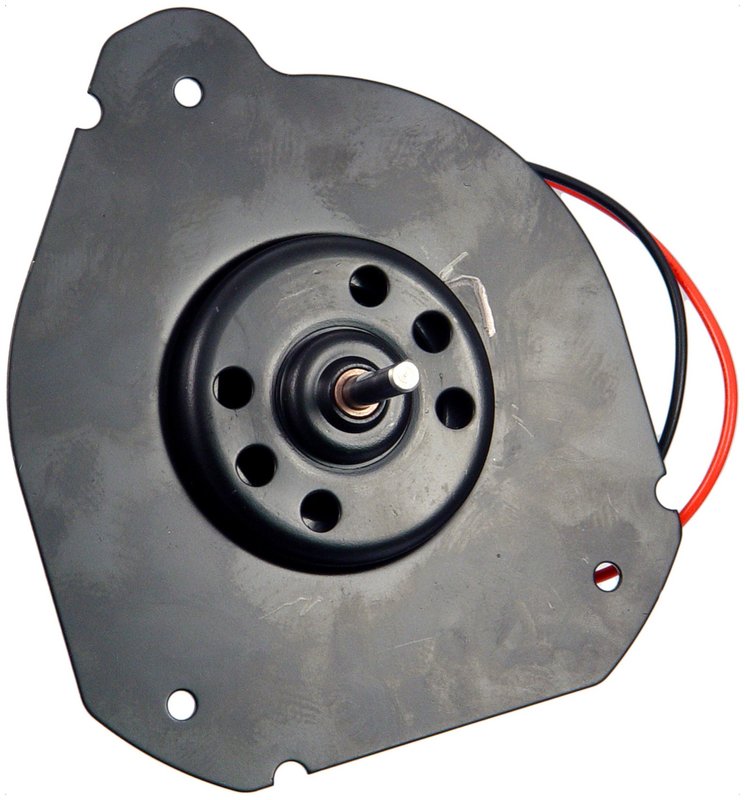

VDO PM285 HVAC Blower Motor
| Brand | VDO PM285 |
|---|---|
| Material | Metal |
| Voltage | 12 |
| Shaft Length | 1.437 |
| Mounting Method | Flange mounted |
| Terminal Type | Lead wire |
| Mounting Hardware Included | No |
| Connector Type | Splice |
| Gasket Or Seal Included | No |
| Terminal Quantity | 0 |
| Hardwired Or Plug-In | Hardwired |
| Flanged End | Yes |
| Rotation | Bi-directional |
| Shaft Diameter | 0.312 |
| Shaft Diameter | 7.95 |
| Shaft Type | Single shaft |
| Motor Diameter | 3.250 |
| Motor Length | 4.000 |
| Vented | Yes |
| Adjustable Speed | Yes |
| Cage Wheel Included | No |
| Fits | Ford and Mazda · 14 vehicles |
OE fit and performance. Application-specific design helps installation go smoothly.
Dual bearing design. Delivers quieter, efficient motor operation.
Vented motor. Supports dependable airflow and performance.
Cross-references FEL-PRO 35498, TYC 700151 and F47Z19805A for the same application. See all 4.
OE-Style HVAC Blower Motor for Ford and Mazda
The VDO PM285 HVAC blower motor is built for direct-fit replacement in select Ford and Mazda applications. It is engineered for quiet operation, dependable airflow, and OE-style installation, making it a practical choice for restoring cabin ventilation performance.
- 12-volt HVAC blower motor with metal construction
- Flange-mounted design with lead wire terminal type and splice connector
- Bi-directional rotation for application-specific fitment
- Vented motor with adjustable speed capability
- Single shaft design with 3.250 in. motor diameter and 4.000 in. motor length
- Precision assembled with all-new components for balanced operation
- Built in ISO/TS certified facilities and tested to OEM specifications
Detailed Product Overview
VDO PM285 is an application-specific HVAC blower motor designed to match OE fit, form, and function. The motor uses a dual-bearing design with ball bearings and riveted magnets to support quieter, efficient operation. For drivers searching for a blower motor for a 1990-1995 Ford Ranger, 1991-1992 Ford Explorer, or 1990 Ford Bronco II, this part number provides a direct replacement path with the correct mounting style and electrical configuration. It also cross-references TYC 700151 for the same application.
Common Problems This Part Can Address
- Weak or inconsistent cabin airflow from the HVAC system
- Noisy blower motor operation during fan use
- Blower motor failure that prevents air from moving through the vents
- Speed control issues caused by worn internal motor components
- Fitment problems from non-application-specific replacement motors
Installation Notes and Tips
Confirm the flange-mounted layout, lead wire terminal type, and bi-directional rotation before installation. This PM285 blower motor is hardwired and does not include mounting hardware, a gasket or seal, or a cage wheel. Verify the vehicle’s HVAC connector style and compare the original motor dimensions to the listed shaft, diameter, and length specifications for proper replacement.
Quality Assurance
VDO manufactures this blower motor in ISO and TS certified facilities and tests it to OEM specifications. The brand’s OE-focused design approach supports consistent fitment for select Ford Ranger, Ford Explorer, Mazda B2300, Mazda B3000, Mazda B4000, Mazda Navajo, and Ford Bronco II applications.
| Year | Make | Model | Notes |
|---|---|---|---|
| 1995 | Ford | Ranger | — |
| 1994 | Ford | Ranger | — |
| 1994 | Mazda | B2300 | — |
| 1994 | Mazda | B3000 | — |
| 1994 | Mazda | B4000 | — |
| 1993 | Ford | Ranger | — |
| 1992 | Ford | Explorer | — |
| 1992 | Ford | Ranger | — |
| 1992 | Mazda | Navajo | — |
| 1991 | Ford | Explorer | — |
| 1991 | Ford | Ranger | — |
| 1991 | Mazda | Navajo | — |
| 1990 | Ford | Bronco II | — |
| 1990 | Ford | Ranger | — |
