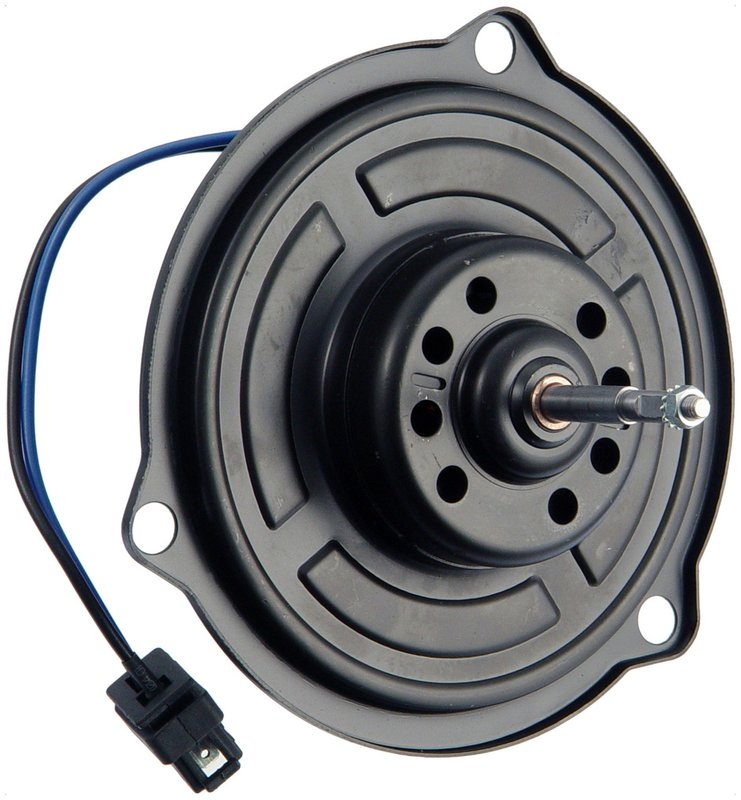

VDO PM3715 HVAC Blower Motor - Front
| Brand | VDO PM3715 |
|---|---|
| Position | Front |
| Material | Metal |
| Voltage | 12 |
| Mounting Bolt Pattern Length | 6.250 |
| Shaft Length | 2.437 |
| Mounting Method | Flange mounted |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Connector Type | Plug |
| Gasket Or Seal Included | No |
| Terminal Quantity | 2 |
| Connector Gender | Female |
| Hardwired Or Plug-In | Plug-in |
| Terminal Gender | Male |
| Flanged End | Yes |
| Rotation | Bi-directional |
| Shaft Diameter | 0.266 |
| Shaft Diameter | 6.75 |
| Shaft Type | Single shaft |
| Motor Diameter | 3.000 |
| Motor Length | 3.812 |
| Vented | Yes |
| Adjustable Speed | Yes |
| Cage Wheel Included | No |
| Fits | Chevrolet, Ford, Geo, Mazda, Mercury, Pontiac, Suzuki, and Toyota · 137 vehicles |
OE fit and performance. Application-specific design for easy installation right out of the box.
Dual bearing design. Delivers quieter, efficient motor operation with reduced vibration.
Metal construction. Built with all new components for dependable service life.
Cross-references FEL-PRO 35493, 72073FA170 and 72073GA170 for the same application. See all 21.
VDO PM3715 HVAC Blower Motor
The VDO PM3715 HVAC blower motor is built for direct-fit replacement in a wide range of import and domestic applications. It uses a 12-volt, flange-mounted design with a plug-in connector and bi-directional rotation for straightforward service on vehicles such as the Toyota Corolla, Mazda 626, and Suzuki Sidekick.
Designed for OE fit, form, and function, this blower motor is assembled with all-new components and balanced for quiet, vibration-free operation. The metal housing, vented construction, and dual-bearing motor design support dependable cabin airflow and consistent HVAC performance.
Key Features
- 12-volt HVAC blower motor for cabin air circulation
- Flange-mounted design with a 6.250-inch mounting bolt pattern length
- Plug-in connection with female plug and male blade terminals
- Bi-directional rotation for application-specific fitment
- Metal construction with vented motor body
- Adjustable speed operation
- Single-shaft design with 3.000-inch motor diameter
- Built in ISO/TS certified facilities and tested to OEM specifications
Detailed Description
VDO PM3715 is an OE-style HVAC blower motor engineered for vehicles that require precise fitment and reliable interior airflow. It is application-specific for direct replacement service and is manufactured to the same quality standards used for global OE automakers. The dual-bearing design helps promote quieter operation and efficient motor performance, while the balanced, all-new component construction supports smooth operation over time. This part number is commonly selected for fitment needs on Toyota 4Runner, Mazda RX-7, and Chevrolet Tracker applications, as well as other listed vehicles.
This part cross-references FEL-PRO 35493 for the same application.
What It Helps Fix
- Weak or inconsistent cabin airflow
- Blower motor noise, squeal, or vibration
- HVAC fan operation that stops working intermittently
- Poor defrost or heater air delivery
- Reduced comfort from failed interior ventilation
Installation Notes and Tips
Verify connector style, flange mounting, shaft dimensions, and rotation before installation. This blower motor uses a plug-in connection, 2 terminals, and a flange-mounted design, so matching the original unit’s electrical and mounting layout is important for proper service. Confirm vehicle-specific fitment for the exact year, make, model, and position before ordering. Compatible applications include Fits 1984-1989 Toyota 4Runner, Front; Fits 1983-1989 Toyota Pickup; Fits 1983-1988 Toyota Corolla; Fits 1986-1991 Mazda RX-7; Fits 1987-1993 Mazda B2200; Fits 1987-1993 Mazda B2600; Fits 1986-1995 Mazda 323; Fits 1990-1992 Mazda 626; Fits 1990-1994 Mazda Protege; Fits 1992-1995 Mazda MX-3; Fits 1996 Mazda MX-6; Fits 1990-1992 Mazda MX-6; Fits 1989-1998 Suzuki Sidekick; Fits 1996-1998 Suzuki X-90; Fits 1989-1994 Geo Tracker; Fits 1990-1991 Chevrolet Tracker; Fits 1985-1988 Chevrolet Nova; Fits 1987-1989 Mercury Tracer; Fits 1989 Ford Probe; Fits 1994 Pontiac Sunrunner; Fits 1986-1992 Toyota Supra; Fits 1986-1987 Mazda B2000.
Quality Assurance
VDO manufactures this blower motor in ISO and TS certified facilities and tests it to OEM specifications. The brand’s OE-focused design approach emphasizes quiet operation, dependable performance, and application-specific fitment for service work on vehicles like the Toyota Corolla, Mazda 626, and Suzuki Sidekick.
| Year | Make | Model | Submodel | Body Type | # Doors | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 1998 | Suzuki | Sidekick | — | — | — | — | — | N/A | — |
| 1998 | Suzuki | X-90 | — | — | — | — | — | N/A | — |
| 1997 | Suzuki | Sidekick | — | — | — | — | — | N/A | — |
| 1997 | Suzuki | X-90 | — | — | — | — | — | N/A | — |
| 1996 | Mazda | MX-6 | — | — | — | — | — | N/A | — |
| 1996 | Suzuki | Sidekick | — | — | — | — | — | N/A | — |
| 1996 | Suzuki | X-90 | — | — | — | — | — | N/A | — |
| 1995 | Mazda | 323 | — | — | — | — | — | N/A | — |
| 1995 | Mazda | MX-3 | — | — | — | — | — | N/A | — |
| 1995 | Suzuki | Sidekick | — | — | — | — | — | N/A | — |
| 1994 | Geo | Tracker | — | — | — | — | — | N/A | — |
| 1994 | Mazda | 323 | — | — | — | — | — | N/A | — |
| 1994 | Mazda | MX-3 | — | — | — | — | — | N/A | — |
| 1994 | Mazda | Protege | — | — | — | — | — | N/A | — |
| 1994 | Pontiac | Sunrunner | — | — | — | — | — | N/A | — |
| 1994 | Subaru | Loyale | — | — | — | — | — | N/A | — |
| 1994 | Suzuki | Sidekick | — | — | — | — | — | N/A | — |
| 1993 | Asuna | Sunrunner | — | — | — | — | — | N/A | — |
| 1993 | Geo | Tracker | — | — | — | — | — | N/A | — |
| 1993 | Mazda | 323 | — | — | — | — | — | N/A | — |
| 1993 | Mazda | B2200 | — | — | — | — | — | N/A | — |
| 1993 | Mazda | B2600 | — | — | — | — | — | N/A | — |
| 1993 | Mazda | MX-3 | — | — | — | — | — | N/A | — |
| 1993 | Mazda | Protege | — | — | — | — | — | N/A | — |
| 1993 | Subaru | Loyale | — | — | — | — | — | N/A | — |
| 1993 | Suzuki | Sidekick | — | — | — | — | — | N/A | — |
| 1992 | Asuna | Sunrunner | — | — | — | — | — | N/A | — |
| 1992 | Geo | Tracker | — | — | — | — | — | N/A | — |
| 1992 | Mazda | 323 | — | — | — | — | — | N/A | — |
| 1992 | Mazda | 626 | — | — | — | — | — | N/A | — |
| 1992 | Mazda | B2200 | — | — | — | — | — | N/A | — |
| 1992 | Mazda | B2600 | — | — | — | — | — | N/A | — |
| 1992 | Mazda | MX-3 | — | — | — | — | — | N/A | — |
| 1992 | Mazda | MX-6 | — | — | — | — | — | N/A | — |
| 1992 | Mazda | Protege | — | — | — | — | — | N/A | — |
| 1992 | Subaru | Loyale | — | — | — | — | — | N/A | — |
| 1992 | Suzuki | Sidekick | — | — | — | — | — | N/A | — |
| 1992 | Toyota | Supra | — | — | — | — | — | N/A | — |
| 1991 | Chevrolet | Tracker | — | — | — | — | — | N/A | — |
| 1991 | Geo | Tracker | — | — | — | — | — | N/A | — |
| 1991 | Mazda | 323 | — | — | — | — | — | N/A | — |
| 1991 | Mazda | 626 | — | — | — | — | — | N/A | — |
| 1991 | Mazda | B2200 | — | — | — | — | — | N/A | — |
| 1991 | Mazda | B2600 | — | — | — | — | — | N/A | — |
| 1991 | Mazda | MX-6 | — | — | — | — | — | N/A | — |
| 1991 | Mazda | Protege | — | — | — | — | — | N/A | — |
| 1991 | Mazda | RX-7 | — | — | — | — | — | N/A | — |
| 1991 | Subaru | Loyale | — | — | — | — | — | N/A | — |
| 1991 | Subaru | XT | — | — | — | — | — | N/A | — |
| 1991 | Suzuki | Sidekick | — | — | — | — | — | N/A | — |
| 1991 | Toyota | Supra | — | — | — | — | — | N/A | — |
| 1990 | Chevrolet | Tracker | — | — | — | — | — | N/A | — |
| 1990 | Geo | Tracker | — | — | — | — | — | N/A | — |
| 1990 | Mazda | 323 | — | — | — | — | — | N/A | — |
| 1990 | Mazda | 626 | — | — | — | — | — | N/A | — |
| 1990 | Mazda | B2200 | — | — | — | — | — | N/A | — |
| 1990 | Mazda | B2600 | — | — | — | — | — | N/A | — |
| 1990 | Mazda | MX-6 | — | — | — | — | — | N/A | — |
| 1990 | Mazda | Protege | — | — | — | — | — | N/A | — |
| 1990 | Mazda | RX-7 | — | — | — | — | — | N/A | — |
| 1990 | Subaru | Loyale | — | — | — | — | — | N/A | — |
| 1990 | Subaru | XT | — | — | — | — | — | N/A | — |
| 1990 | Suzuki | Sidekick | — | — | — | — | — | N/A | — |
| 1990 | Toyota | Supra | — | — | — | — | — | N/A | — |
| 1989 | Ford | Probe | — | — | — | — | — | N/A | — |
| 1989 | Geo | Tracker | — | — | — | — | — | N/A | — |
| 1989 | Mazda | 323 | — | — | — | — | — | N/A | — |
| 1989 | Mazda | B2200 | — | — | — | — | — | N/A | — |
| 1989 | Mazda | B2600 | — | — | — | — | — | N/A | — |
| 1989 | Mazda | RX-7 | — | — | — | — | — | N/A | — |
| 1989 | Mercury | Tracer | — | — | — | — | — | N/A | — |
| 1989 | Subaru | DL | — | — | — | — | — | N/A | — |
| 1989 | Subaru | GL | — | — | 3 Door | — | — | N/A | — |
| 1989 | Subaru | GL-10 | — | — | — | — | — | N/A | — |
| 1989 | Subaru | RX | — | — | — | — | — | N/A | — |
| 1989 | Subaru | XT | — | — | — | — | — | N/A | — |
| 1989 | Suzuki | Sidekick | — | — | — | 1.6L | L4 | N/A | — |
| 1989 | Toyota | 4Runner | — | — | — | — | — | Front | — |
| 1989 | Toyota | Pickup | — | — | — | — | — | N/A | — |
| 1989 | Toyota | Supra | — | — | — | — | — | N/A | — |
| 1988 | Chevrolet | Nova | — | — | — | — | — | N/A | — |
| 1988 | Mazda | 323 | — | — | — | — | — | N/A | — |
| 1988 | Mazda | B2200 | — | — | — | — | — | N/A | — |
| 1988 | Mazda | B2600 | — | — | — | — | — | N/A | — |
| 1988 | Mazda | RX-7 | — | — | — | — | — | N/A | — |
| 1988 | Mercury | Tracer | — | — | — | — | — | N/A | — |
| 1988 | Subaru | DL | — | — | — | — | — | N/A | — |
| 1988 | Subaru | GL | — | — | 3 Door | — | — | N/A | — |
| 1988 | Subaru | GL-10 | — | — | — | — | — | N/A | — |
| 1988 | Subaru | RX | — | — | — | — | — | N/A | — |
| 1988 | Subaru | XT | — | — | — | — | — | N/A | — |
| 1988 | Toyota | 4Runner | — | — | — | — | — | Front | — |
| 1988 | Toyota | Corolla | FX | — | — | — | — | N/A | — |
| 1988 | Toyota | Pickup | — | — | — | — | — | N/A | — |
| 1988 | Toyota | Supra | — | — | — | — | — | N/A | — |
| 1987 | Chevrolet | Nova | — | — | — | — | — | N/A | — |
| 1987 | Mazda | 323 | — | — | — | — | — | N/A | — |
| 1987 | Mazda | B2000 | — | — | — | — | — | N/A | — |
| 1987 | Mazda | B2200 | — | — | — | — | — | N/A | — |
| 1987 | Mazda | B2600 | — | — | — | — | — | N/A | — |
| 1987 | Mazda | RX-7 | — | — | — | — | — | N/A | — |
| 1987 | Mercury | Tracer | — | — | — | — | — | N/A | — |
| 1987 | Subaru | DL | — | — | — | — | — | N/A | — |
| 1987 | Subaru | GL | — | — | 3 Door | — | — | N/A | — |
| 1987 | Subaru | GL-10 | — | — | — | — | — | N/A | — |
| 1987 | Subaru | RX | — | — | — | — | — | N/A | — |
| 1987 | Subaru | XT | — | — | — | — | — | N/A | — |
| 1987 | Toyota | 4Runner | — | — | — | — | — | Front | — |
| 1987 | Toyota | Corolla | — | Hatchback | — | — | — | N/A | — |
| 1987 | Toyota | Pickup | — | — | — | — | — | N/A | — |
| 1987 | Toyota | Supra | — | — | — | — | — | N/A | — |
| 1986 | Chevrolet | Nova | — | — | — | — | — | N/A | — |
| 1986 | Mazda | 323 | — | — | — | — | — | N/A | — |
| 1986 | Mazda | B2000 | — | — | — | — | — | N/A | — |
| 1986 | Mazda | RX-7 | — | — | — | — | — | N/A | — |
| 1986 | Subaru | DL | — | — | — | — | — | N/A | — |
| 1986 | Subaru | GL | — | — | 3 Door | — | — | N/A | — |
| 1986 | Subaru | GL-10 | — | — | — | — | — | N/A | — |
| 1986 | Subaru | RX | — | — | — | — | — | N/A | — |
| 1986 | Subaru | XT | — | — | — | — | — | N/A | — |
| 1986 | Toyota | 4Runner | — | — | — | — | — | Front | — |
| 1986 | Toyota | Corolla | — | Hatchback | — | — | — | N/A | — |
| 1986 | Toyota | Pickup | — | — | — | — | — | N/A | — |
| 1986 | Toyota | Supra | — | — | — | — | — | N/A | — |
| 1985 | Chevrolet | Nova | — | — | — | — | — | N/A | — |
| 1985 | Subaru | DL | — | — | — | — | — | N/A | — |
| 1985 | Subaru | GL | — | — | 4 Door | — | — | N/A | — |
| 1985 | Subaru | GL-10 | — | — | — | — | — | N/A | — |
| 1985 | Subaru | XT | — | — | — | — | — | N/A | — |
| 1985 | Toyota | 4Runner | — | — | — | — | — | Front | — |
| 1985 | Toyota | Corolla | — | Hatchback | — | — | — | N/A | — |
| 1985 | Toyota | Pickup | — | — | — | — | — | N/A | — |
| 1984 | Toyota | 4Runner | — | — | — | — | — | Front | — |
| 1984 | Toyota | Corolla | — | Hatchback | — | — | — | N/A | — |
| 1984 | Toyota | Pickup | — | — | — | — | — | N/A | — |
| 1983 | Toyota | Corolla | — | Hardtop | — | — | — | N/A | — |
| 1983 | Toyota | Pickup | — | — | — | — | — | N/A | — |
