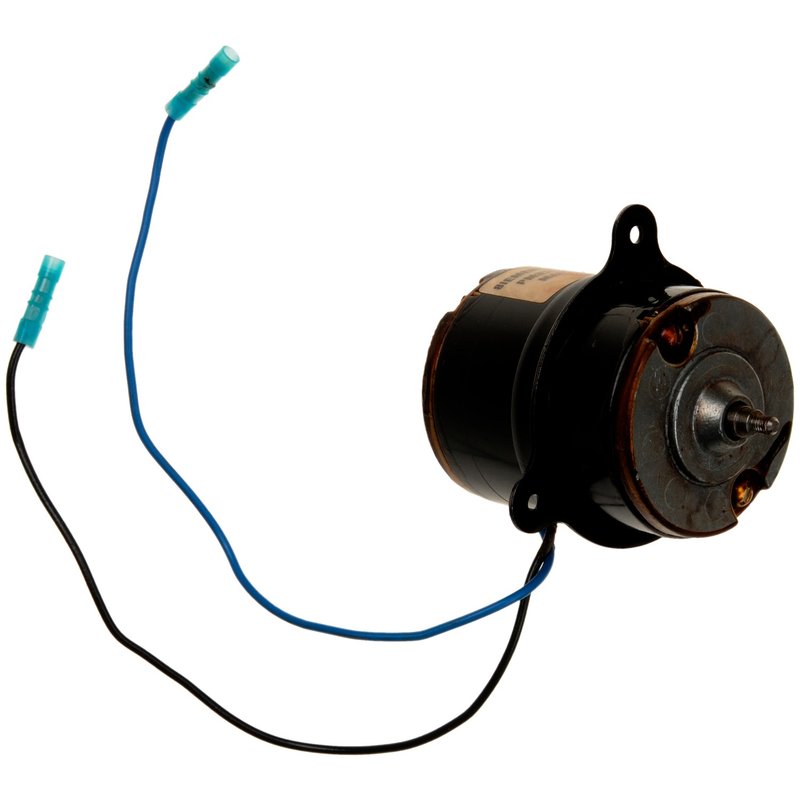

VDO PM3782 Engine Cooling Fan Motor
| Brand | VDO PM3782 |
|---|---|
| Voltage | 12 |
| Shaft Length | 0.812 |
| Mounting Method | Flange mounted |
| External Fan Included | No |
| Terminal Type | Bullet |
| Connector Quantity | 0 |
| Terminal Quantity | 2 |
| Hardwired Or Plug-In | Hardwired |
| Terminal Gender | Female |
| Rotation | Clockwise (right) |
| Shaft Diameter | 0.312 |
| Shaft Diameter | 8.00 |
| Motor Diameter | 2.500 |
| Motor Length | 3.500 |
| Adjustable Speed | No |
| Fits | Acura · 4 vehicles |
OE fit and performance. Application-specific design for easy installation right out of the box.
Dual bearing design. Runs quieter with efficient motor operation and less vibration.
OEM-spec tested. Built and tested to match original equipment standards.
Cross-references FEL-PRO 35326, 19030PG7A02 and 19030PG7662 for the same application. See all 3.
Engine Cooling Fan Motor for Acura Integra
The VDO PM3782 is an application-specific engine cooling fan motor built for OE fit, form, and performance. It is designed for 12-volt systems and uses a flange-mounted, hardwired layout with a female bullet terminal connection for straightforward replacement on select Acura Integra applications.
Compatible With 1986-1989 Acura Integra, N/A. The PM3782 is engineered for quiet operation, dependable cooling fan control, and consistent motor performance in daily driving conditions.
Key Features
- 12-volt engine cooling fan motor
- Flange-mounted design for direct installation
- Hardwired with 2 female bullet terminals
- Clockwise (right) rotation
- No external fan included
- Compact motor dimensions: 2.500 in. diameter and 3.500 in. length
- OE-style application-specific fit for select Acura Integra models
Detailed Description
VDO PM3782 is an engine cooling fan motor made for select 1986-1989 Acura Integra vehicles. It is built in ISO and TS certified facilities and manufactured to OEM-level specifications, with precision assembly and balancing using all-new components to support smooth, vibration-free operation. VDO’s dual-bearing motor design uses two ball bearings and bearing retainers to promote quieter, efficient operation and longer service life. For buyers searching for an Acura Integra cooling fan motor, Acura Integra engine cooling fan motor replacement, or VDO PM3782 fitment, this part is built around the original vehicle application rather than a universal design.
This part cross-references FEL-PRO 35326 for the same application.
What This Part Helps Address
- Cooling fan motor failure
- Intermittent or weak fan operation
- Overheating caused by poor fan performance
- Noisy fan motor operation
- Fitment issues from non-application-specific replacements
Installation Notes and Tips
Confirm the vehicle uses a 12-volt, flange-mounted, hardwired motor with 2 female bullet terminals before installation. Verify shaft diameter, shaft length, motor diameter, motor length, and clockwise rotation against the original unit. Because this is an application-specific replacement, compare the connector style and mounting points to the removed motor before final assembly.
Quality Assurance
VDO manufactures this motor to OEM specifications in certified facilities, with testing focused on fit, performance, and quiet operation. The PM3782 reflects VDO’s OE-oriented engineering approach for select Acura Integra cooling system repairs.
| Year | Make | Model | Notes |
|---|---|---|---|
| 1989 | Acura | Integra | — |
| 1988 | Acura | Integra | — |
| 1987 | Acura | Integra | — |
| 1986 | Acura | Integra | — |
| No rows match your filter. | |||
