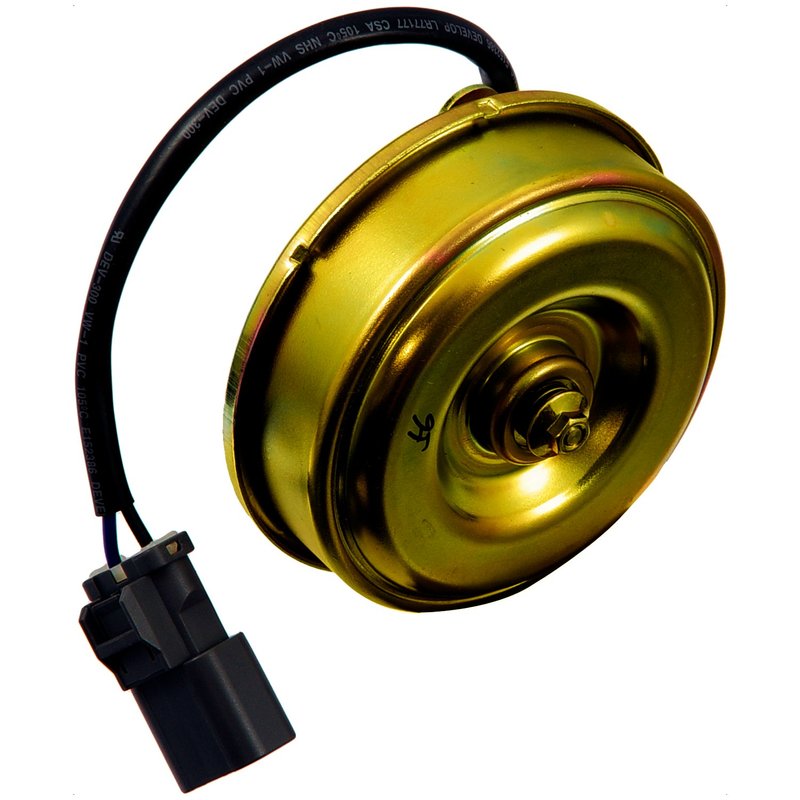

VDO PM9106 A/C Condenser Fan Motor
| Brand | VDO PM9106 |
|---|---|
| Voltage | 12 |
| Mounting Bolt Pattern Length | 3.312 |
| Shaft Length | 0.437 |
| Mounting Method | Bolt-on |
| External Fan Included | No |
| Terminal Type | Blade |
| Connector Quantity | 1 |
| Terminal Quantity | 2 |
| Hardwired Or Plug-In | Plug-in |
| Terminal Gender | Male |
| Rotation | Clockwise (right) |
| Shaft Diameter | 0.265 |
| Shaft Diameter | 7.00 |
| Motor Diameter | 3.875 |
| Motor Length | 1.750 |
| Adjustable Speed | No |
| Fits | Acura and Honda · 26 vehicles |
OE fit and performance. Application-specific design makes installation straightforward right out of the box.
Dual bearing design. Runs quieter with efficient motor operation and reduced vibration.
Bolt-on installation. Plug-in connection with blade terminals for easy replacement.
Cross-references Four Seasons 75725, Global Parts Distributors LLC 630010 and 38616PT3A02 for the same application. See all 5.
VDO PM9106 A/C Condenser Fan Motor
The VDO PM9106 is an application-specific A/C condenser fan motor built for OE fit, form, and performance. It is engineered for quiet operation, dependable cooling-system function, and straightforward installation on select Acura and Honda applications.
Key Features
- 12-volt A/C condenser fan motor
- Bolt-on mounting method with a 3.312-inch mounting bolt pattern length
- Plug-in connection with 1 connector, 2 terminals, and male blade terminals
- Clockwise (right) rotation
- Motor diameter: 3.875 inches
- Motor length: 1.750 inches
- Shaft length: 0.437 inch
- OE-style design manufactured and tested to OEM specifications
- Precision assembled and balanced with all new components for vibration-free operation
Detailed Description
VDO PM9106 is designed for drivers and technicians who need a direct-fit A/C condenser fan motor for Honda Accord, Honda Prelude, Honda CR-V, Acura Integra, and Acura CL applications. The motor uses a dual-bearing design with two ball bearings, bearing retainers, and riveted magnets to support quieter, efficient operation and longer service life. Built in ISO and TS certified facilities, this motor follows the same quality standards used for global OE automaker supply.
This part cross-references Four Seasons 75725 for the same application. If you are replacing a worn condenser fan motor on a 1990-1997 Honda Accord or a 1994-2001 Acura Integra, PM9106 provides an OE-style replacement path with the correct electrical and mounting configuration.
What It Helps Fix
- Inoperative A/C condenser fan motor
- Weak or inconsistent condenser airflow
- Overheating at idle or in slow traffic
- Excessive fan motor noise or vibration
- Poor A/C performance caused by reduced condenser cooling
Installation Notes and Tips
Verify the connector style, terminal count, rotation direction, and mounting pattern before installation. PM9106 uses a plug-in, 2-terminal blade connection and clockwise rotation, so matching the original unit is important for proper operation. Confirm vehicle application by year, make, and model before ordering, especially on Honda Accord, Honda Prelude, and Acura Integra fitments.
- Fits 1994-2001 Acura Integra, N/A
- Fits 1997-1998 Honda CR-V, N/A
- Fits 1992-1998 Honda Prelude, N/A
- Fits 1997 Acura CL, N/A
- Fits 1990-1997 Honda Accord, N/A
Quality Assurance
VDO manufactures this motor to OEM specifications in ISO and TS certified facilities. The design emphasizes OE fit, balanced operation, and dependable performance for HVAC cooling-system service.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2001 | Acura | Integra | — | — | — |
| 2000 | Acura | Integra | — | — | — |
| 1999 | Acura | Integra | — | — | — |
| 1998 | Acura | Integra | — | — | — |
| 1998 | Honda | CR-V | — | — | — |
| 1998 | Honda | Prelude | — | — | — |
| 1997 | Acura | CL | 2.2L | L4 | — |
| 1997 | Acura | Integra | — | — | — |
| 1997 | Honda | Accord | 2.2L | L4 | — |
| 1997 | Honda | CR-V | — | — | — |
| 1997 | Honda | Prelude | — | — | — |
| 1996 | Acura | Integra | — | — | — |
| 1996 | Honda | Accord | 2.2L | L4 | — |
| 1996 | Honda | Prelude | — | — | — |
| 1995 | Acura | Integra | — | — | — |
| 1995 | Honda | Accord | 2.2L | L4 | — |
| 1995 | Honda | Prelude | — | — | — |
| 1994 | Acura | Integra | — | — | — |
| 1994 | Honda | Accord | — | — | — |
| 1994 | Honda | Prelude | — | — | — |
| 1993 | Honda | Accord | — | — | — |
| 1993 | Honda | Prelude | — | — | — |
| 1992 | Honda | Accord | — | — | — |
| 1992 | Honda | Prelude | — | — | — |
| 1991 | Honda | Accord | — | — | — |
| 1990 | Honda | Accord | — | — | — |
