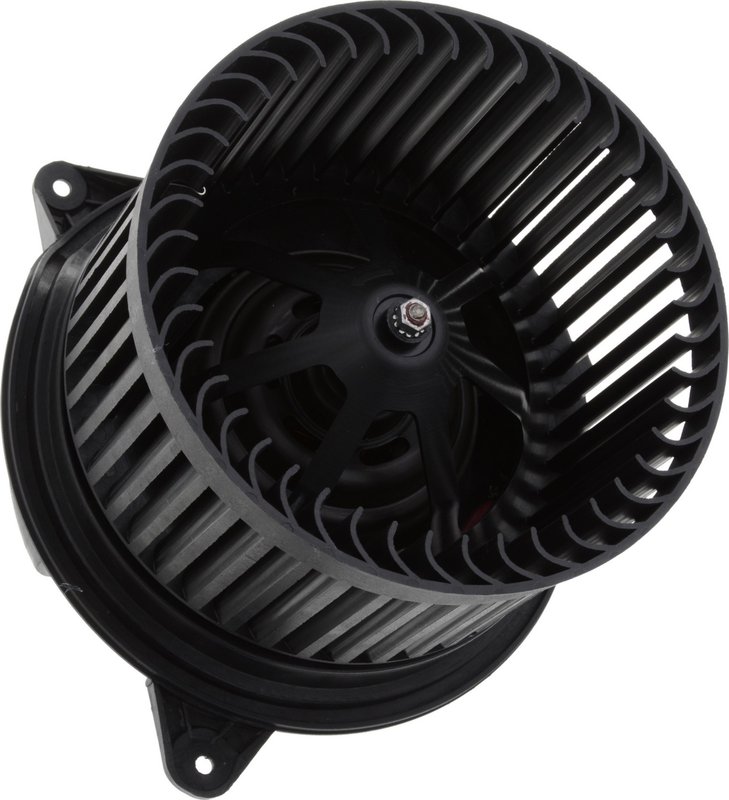

VDO PM9202 HVAC Blower Motor
| Brand | VDO PM9202 |
|---|---|
| Material | Metal |
| Voltage | 12 |
| Mounting Bolt Pattern Length | 7.812 |
| Shaft Length | 3.375 |
| Mounting Method | Flange mounted |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Connector Type | Plug |
| Gasket Or Seal Included | No |
| Terminal Quantity | 2 |
| Connector Gender | Female |
| Hardwired Or Plug-In | Plug-in |
| Terminal Gender | Male |
| Flanged End | Yes |
| Wheel Diameter | 6.000 |
| Rotation | Counterclockwise (left) |
| Shaft Diameter | 0.312 |
| Shaft Diameter | 7.95 |
| Shaft Type | Single shaft |
| Motor Diameter | 3.000 |
| Motor Length | 3.750 |
| Vented | Yes |
| Adjustable Speed | Yes |
| Cage Wheel Included | Yes |
| Fits | Ford and Jaguar · 23 vehicles |
OE fit and performance. Application-specific design for easy installation right out of the box.
Dual bearing design. Delivers quieter, efficient motor operation with reduced vibration.
Metal construction. Built with all-new components for dependable HVAC blower motor performance.
Cross-references Four Seasons 75754, TYC 700105 and 2T1Z18568A for the same application. See all 12.
OE-Style HVAC Blower Motor for Ford and Jaguar
The VDO PM9202 HVAC blower motor is built for direct-fit replacement in select Ford Focus, Ford Transit Connect, and Jaguar X-Type applications. It is engineered for quiet cabin airflow, dependable operation, and OE-style fitment that supports straightforward installation.
Key Features
- 12-volt HVAC blower motor with flange-mounted design
- Metal construction with vented housing for durable operation
- Single-shaft motor with a 6.000-inch cage wheel included
- Counterclockwise (left) rotation
- Plug-in connection with female plug and 2 male blade terminals
- Adjustable speed for HVAC system control
- Application-specific fit for OE-style replacement
Detailed Product Overview
VDO PM9202 is manufactured to OE fit, form, and function standards for vehicles that need a replacement HVAC blower motor with consistent airflow performance. The motor measures 3.000 inches in diameter and 3.750 inches in length, with a 3.375-inch shaft length and a flange-mounted design. It is precision assembled and balanced with all-new components to support vibration-free operation, while the dual-bearing design used in VDO motor engineering is intended to promote quieter, efficient performance. This part cross-references Four Seasons 75754 for the same application.
Fits 2010-2013 Ford Transit Connect, N/A. Fits 2000-2011 Ford Focus, N/A. Fits 2002-2008 Jaguar X-Type, N/A. The VDO PM9202 is a direct replacement choice for drivers searching for a Ford Focus blower motor, Ford Transit Connect HVAC blower motor, or Jaguar X-Type heater fan motor replacement.
Common Problems This Part Can Address
- No cabin airflow from the HVAC vents
- Weak or inconsistent blower output
- Excessive blower motor noise during operation
- Vibration caused by worn motor components
- Failure of the heater and air conditioning fan to run at selected speeds
Installation Notes and Tips
Verify connector style, mounting pattern, shaft dimensions, and rotation before installation. This unit uses a plug-in electrical connection, flange mounting, and a counterclockwise rotation, so matching the original configuration is important for proper operation. Inspect the HVAC housing and electrical connector for wear or corrosion before installing the replacement motor.
Quality Assurance
VDO manufactures this blower motor in ISO/TS certified facilities and tests it to OEM specifications. It is built for application-specific fitment and consistent performance in select Ford and Jaguar HVAC systems.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2013 | Ford | Transit Connect | — |
| 2012 | Ford | Transit Connect | — |
| 2011 | Ford | Focus | — |
| 2011 | Ford | Transit Connect | — |
| 2010 | Ford | Focus | — |
| 2010 | Ford | Transit Connect | — |
| 2009 | Ford | Focus | — |
| 2008 | Ford | Focus | — |
| 2008 | Jaguar | X-Type | — |
| 2007 | Ford | Focus | — |
| 2007 | Jaguar | X-Type | — |
| 2006 | Ford | Focus | — |
| 2006 | Jaguar | X-Type | — |
| 2005 | Ford | Focus | — |
| 2005 | Jaguar | X-Type | — |
| 2004 | Ford | Focus | — |
| 2004 | Jaguar | X-Type | — |
| 2003 | Ford | Focus | — |
| 2003 | Jaguar | X-Type | — |
| 2002 | Ford | Focus | — |
| 2002 | Jaguar | X-Type | — |
| 2001 | Ford | Focus | — |
| 2000 | Ford | Focus | — |
