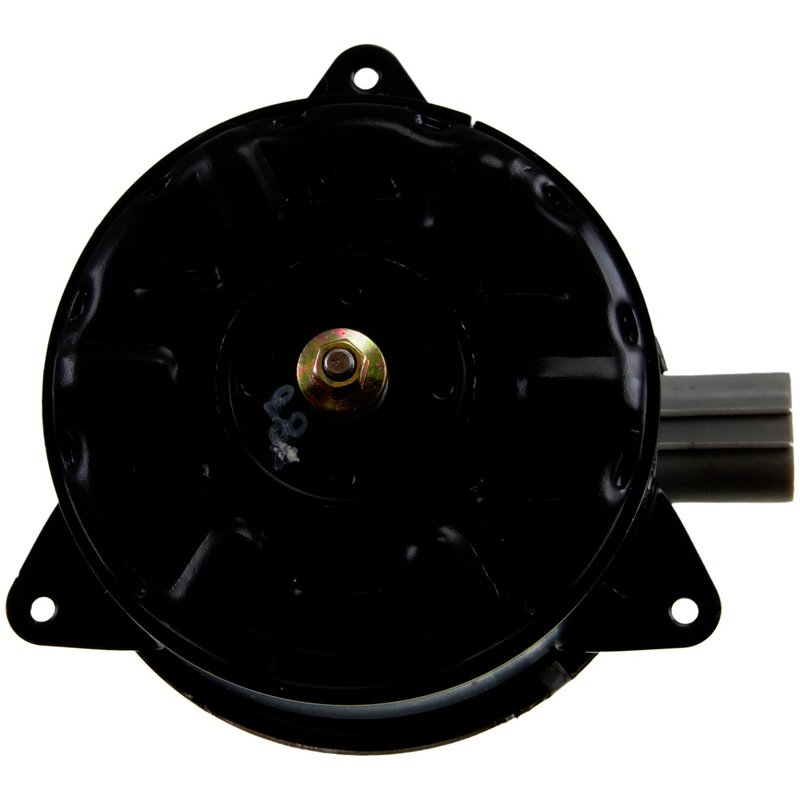

VDO PM9267 Engine Cooling Fan Motor
| Brand | VDO PM9267 |
|---|---|
| Voltage | 12 |
| Mounting Bolt Pattern Length | 5.000 |
| Shaft Length | 0.625 |
| Mounting Method | Flange mounted |
| External Fan Included | No |
| Terminal Type | Blade |
| Connector Quantity | 1 |
| Terminal Quantity | 2 |
| Hardwired Or Plug-In | Plug-in |
| Terminal Gender | Male |
| Rotation | Counterclockwise (left) |
| Shaft Diameter | 0.312 |
| Shaft Diameter | 8.00 |
| Motor Diameter | 4.000 |
| Motor Length | 2.500 |
| Adjustable Speed | No |
| Fits | Lexus, Scion, and Toyota · 36 vehicles |
OE fit and performance. Application-specific design for easy installation right out of the box.
Dual bearing design. Delivers quieter, efficient motor operation with dependable performance.
Flange mounted. Plug-in motor with blade terminals for straightforward connection.
Cross-references FEL-PRO 35114, Global Parts Distributors LLC 630700 and 163630D050 for the same application. See all 9.
Engine Cooling Fan Motor for Toyota and Scion
The VDO PM9267 engine cooling fan motor is an OE-style replacement built for specific vehicle applications, including Toyota Yaris, Toyota Matrix, Toyota RAV4, Scion xD, Scion xA, Scion xB, and Lexus ES330. It is designed for direct-fit installation, quiet operation, and dependable cooling fan performance.
Key Features
- 12-volt engine cooling fan motor
- Flange-mounted design with a 5.000-inch mounting bolt pattern length
- Plug-in connection with 1 connector, 2 blade terminals, and male terminal gender
- Counterclockwise (left) rotation
- Motor diameter: 4.000 inches
- Motor length: 2.500 inches
- Shaft length: 0.625 inch
- Shaft diameter: 0.312 inch / 8.00 mm
- No external fan included
- Not adjustable speed
Detailed Description
VDO PM9267 is an application-specific engine cooling fan motor engineered for OE fit, form, and function. It is manufactured in ISO and TS certified facilities and tested to OEM specifications, with precision assembly and balancing using all new components for smooth operation. VDO’s dual bearing motor design uses two ball bearings and bearing retainers to support quieter, efficient performance and longer service life. This part number is a direct replacement choice for drivers and technicians servicing Toyota Yaris, Toyota Matrix, Toyota RAV4, Scion xD, Scion xA, Scion xB, and Lexus ES330 cooling systems.
This part cross-references FEL-PRO 35114 and Global Parts Distributors LLC 630700 for the same application. The VDO PM9267 is also associated with OE-style interchange numbers including 163630D050 and TO3116112.
What It Helps Fix
- Cooling fan motor failure causing poor radiator airflow
- Overheating concerns related to a non-operating fan motor
- Noisy fan motor operation from worn bearings
- Intermittent fan performance caused by electrical or internal motor wear
- Fitment issues from non-application-specific replacement parts
Installation Notes and Tips
Confirm connector style, flange mounting, rotation direction, and shaft dimensions before installation. This motor uses a plug-in electrical connection and a flange-mounted design, so matching the original mounting pattern and terminal layout is important for proper fit. Verify vehicle application carefully for 2001-2005 Toyota RAV4, 2003-2008 Toyota Matrix, 2004-2006 Lexus ES330, 2004-2006 Scion xA, 2004-2006 Scion xB, 2007-2015 Toyota Yaris, and 2008-2014 Scion xD.
Quality Assurance
VDO manufactures this cooling fan motor to OEM specifications in certified facilities, using OE design and testing standards for consistent performance and installation fit. The brand’s dual bearing motor construction is intended to support quiet, dependable operation in everyday service.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2015 | Toyota | Yaris | — | N/A | — |
| 2014 | Scion | xD | — | N/A | — |
| 2014 | Toyota | Yaris | — | N/A | — |
| 2013 | Scion | xD | — | N/A | — |
| 2013 | Toyota | Yaris | — | N/A | — |
| 2012 | Scion | xD | — | N/A | — |
| 2012 | Toyota | Yaris | — | N/A | — |
| 2011 | Scion | xD | — | N/A | — |
| 2011 | Toyota | Yaris | — | N/A | — |
| 2010 | Scion | xD | — | N/A | — |
| 2010 | Toyota | Yaris | — | N/A | — |
| 2009 | Scion | xD | — | N/A | — |
| 2009 | Toyota | Yaris | — | N/A | — |
| 2008 | Scion | xD | — | N/A | — |
| 2008 | Toyota | Matrix | Automatic | N/A | — |
| 2008 | Toyota | Yaris | — | N/A | — |
| 2007 | Toyota | Matrix | Automatic | N/A | — |
| 2007 | Toyota | Yaris | — | N/A | — |
| 2006 | Lexus | ES330 | — | N/A | — |
| 2006 | Scion | xA | — | N/A | — |
| 2006 | Scion | xB | — | N/A | — |
| 2006 | Toyota | Matrix | Automatic | N/A | — |
| 2005 | Lexus | ES330 | — | N/A | — |
| 2005 | Scion | xA | — | N/A | — |
| 2005 | Scion | xB | — | N/A | — |
| 2005 | Toyota | Matrix | Automatic | N/A | — |
| 2005 | Toyota | RAV4 | — | N/A | — |
| 2004 | Lexus | ES330 | — | N/A | — |
| 2004 | Scion | xA | — | N/A | — |
| 2004 | Scion | xB | — | N/A | — |
| 2004 | Toyota | Matrix | Automatic | N/A | — |
| 2004 | Toyota | RAV4 | — | N/A | — |
| 2003 | Toyota | Matrix | Automatic | N/A | — |
| 2003 | Toyota | RAV4 | — | N/A | — |
| 2002 | Toyota | RAV4 | — | N/A | — |
| 2001 | Toyota | RAV4 | — | N/A | — |
